Steel Window Grill Design Ideas for Indian Homes
18 designs Window grills and windows Updated 8 Oct 2026
A steel window grill design guards your khidki, lets daylight through and never asks for a paint brush. That last point is why so many families now ask for stainless steel instead of painted MS bars.
Below are 18 steel window grill design photos, grouped by section type: round SS pipe, square tube, flat strip, steel with glass, front elevation grills and plain grills for flats. Under every photo you get the section size, the pattern, the best spot for it and one tip to read out to your fabricator.
Before you pick, learn one thing: the grade. SS 304 holds up near the sea and in humid towns. SS 202 costs less but can show small rust spots on the coast. If you prefer a painted look, see our iron window grill design page, or start with the full window grill design gallery.
Steel Window Grill Design in Round SS Pipe
Our steel grill design photos start with round pipe, the classic choice. It has no sharp corners, cleans in seconds and the shine catches daylight on a plain wall.

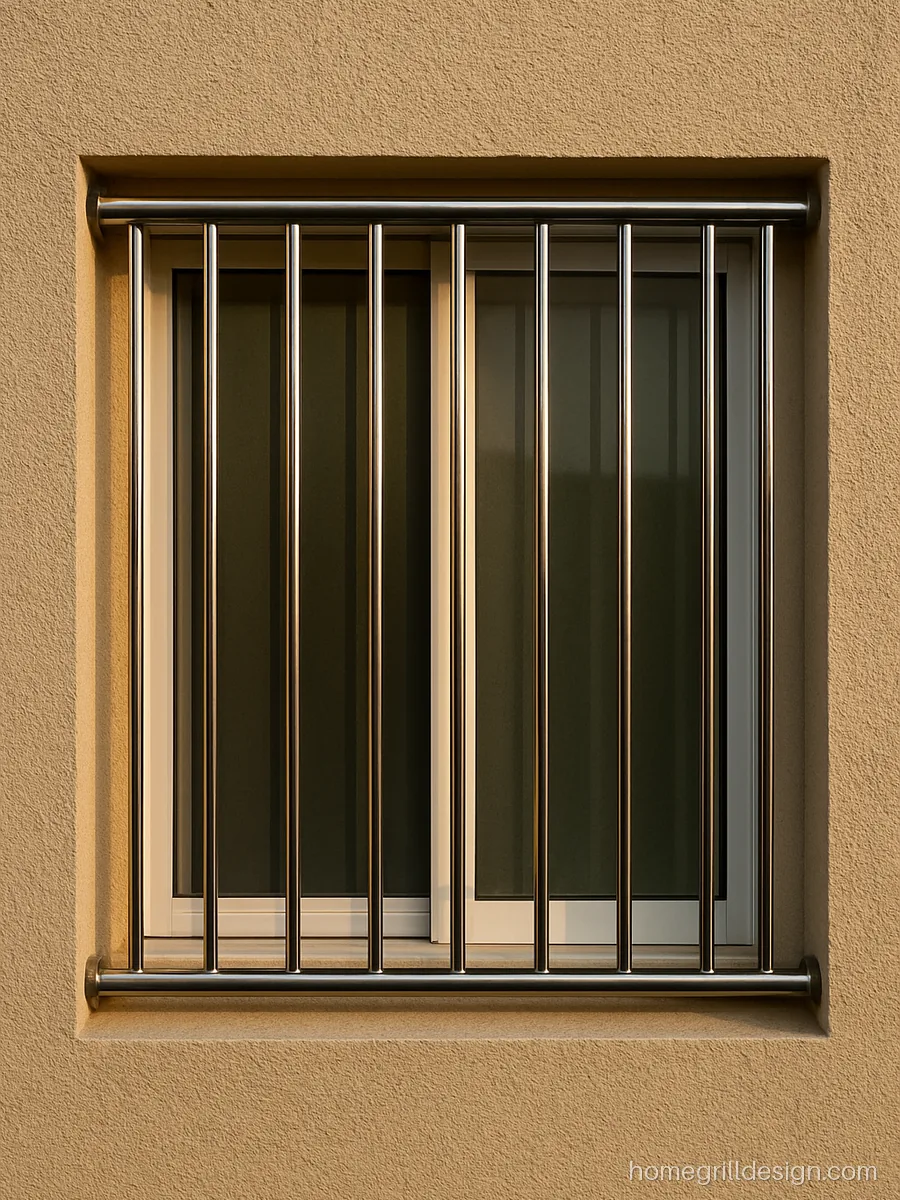

Straight 3/4 inch pipes at close spacing give full security with almost no visual weight. Suits a bedroom that gets strong morning light.
- MaterialSS 304, 3/4 inch pipe
- StyleVertical pipes
- SuitsGround floor bedrooms
Fabricator’s tip Keep the pipe gap at 100 mm or less and use end caps so rainwater does not collect inside the pipes.

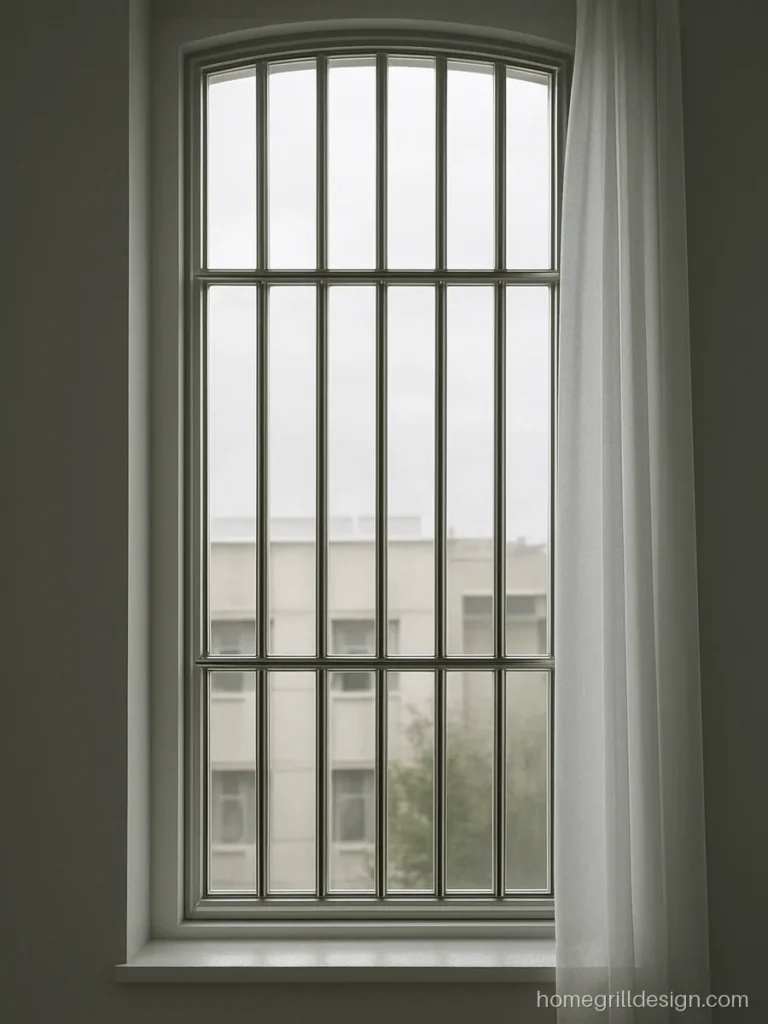

Two horizontal rails split the vertical pipes into three bands, which looks neater on a tall window. Satin finish hides fingerprints from small hands.
- MaterialSS 304, 1 inch pipe
- StyleLadder bands
- SuitsLiving rooms
Fabricator’s tip Ask for TIG welding at every pipe joint and buff the weld so the satin grain runs one way.

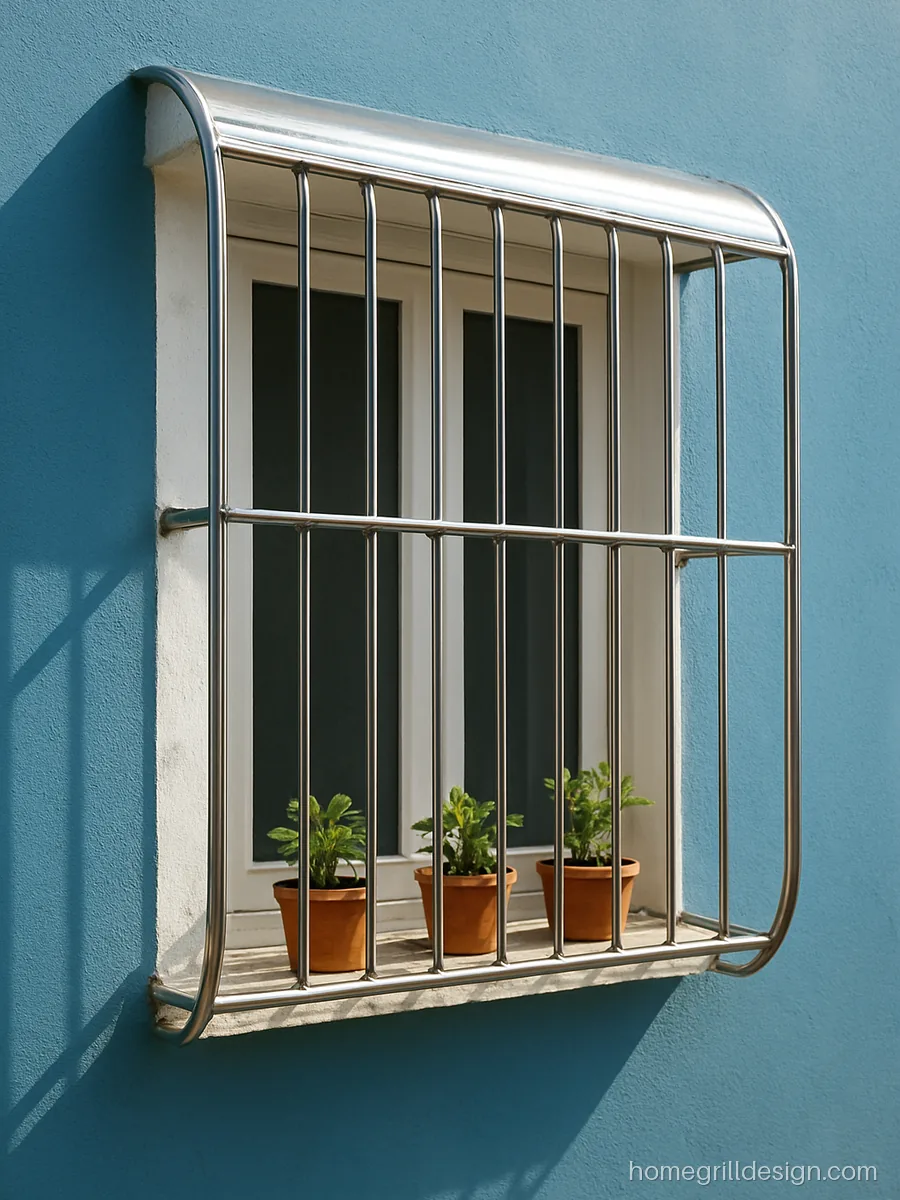

A box grill that projects out by 12 inches leaves room for small plants. In a coastal town only SS 304 should be used for this kind of outside frame.
- MaterialSS 304, 1 inch pipe
- StyleProjected box, bent top
- SuitsCoastal homes
Fabricator’s tip Fix the projected frame with anchor fasteners at six points and slope the base plate so rain runs off.
Modern Steel Window Grill Design with Square Tube
Square tube gives sharp lines that match flat slab elevations and modern sliding windows. It is the most asked for new steel grill design in city flats right now.
An even grid of 20 mm square tubes reads like a window frame rather than a cage. It works on a study or home office where you look out a lot.
- MaterialSS 202, 20 mm sq tube
- StyleOpen grid
- SuitsInland city flats
Fabricator’s tip Grade 202 is fine inland, but wipe it every month in humid weather to stop tea stain marks.

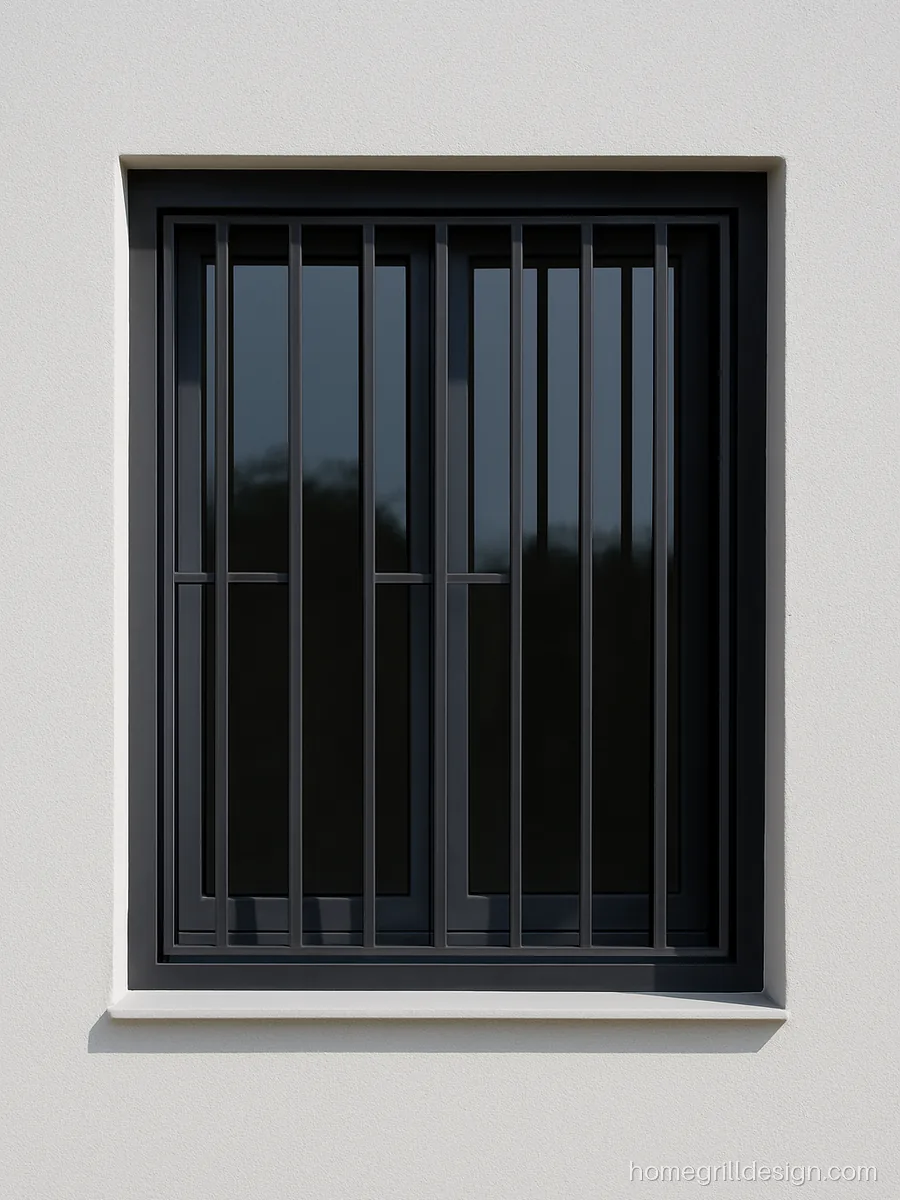

Vertical tubes at uneven gaps give a modern rhythm. A black coating on steel looks sharp against a white wall and hides dust.
- MaterialSS 304, black coated
- StyleOffset verticals
- SuitsModern elevations
Fabricator’s tip Coloured SS coating scratches if welded after coating, so all cutting and welding must be finished first.

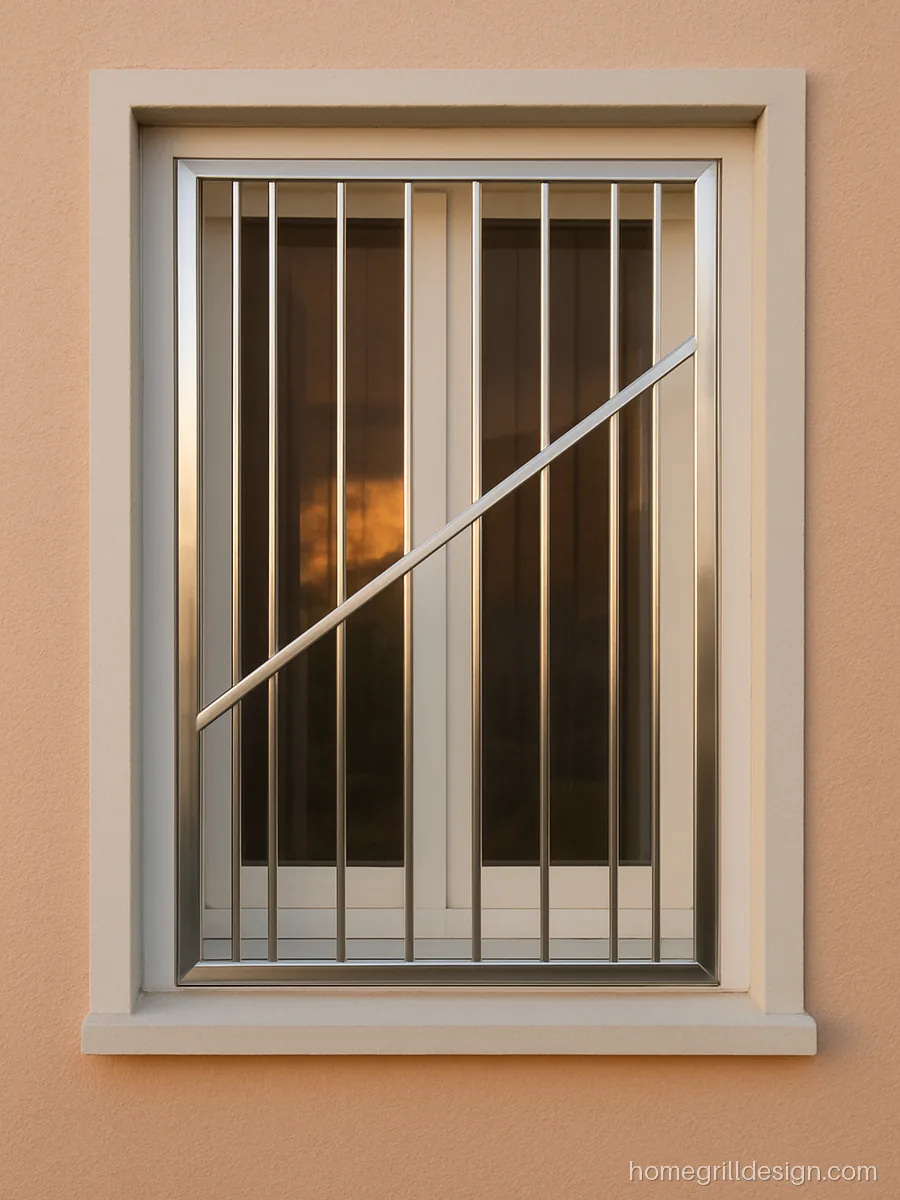

One diagonal band across straight tubes breaks the plain look without adding much steel. Good for a front room where people notice the window.
- MaterialSS 304, 20 mm sq tube
- StyleVerticals, diagonal band
- SuitsFront rooms
Fabricator’s tip Mitre the diagonal pieces at the exact angle and polish the joints back to a mirror shine.
Steel Grill Design with Flat Strip Patterns
Flat SS strip lets the fabricator make waves, boxes and lines that look lighter than pipe. Strip edges must be rounded so nobody gets cut while cleaning.

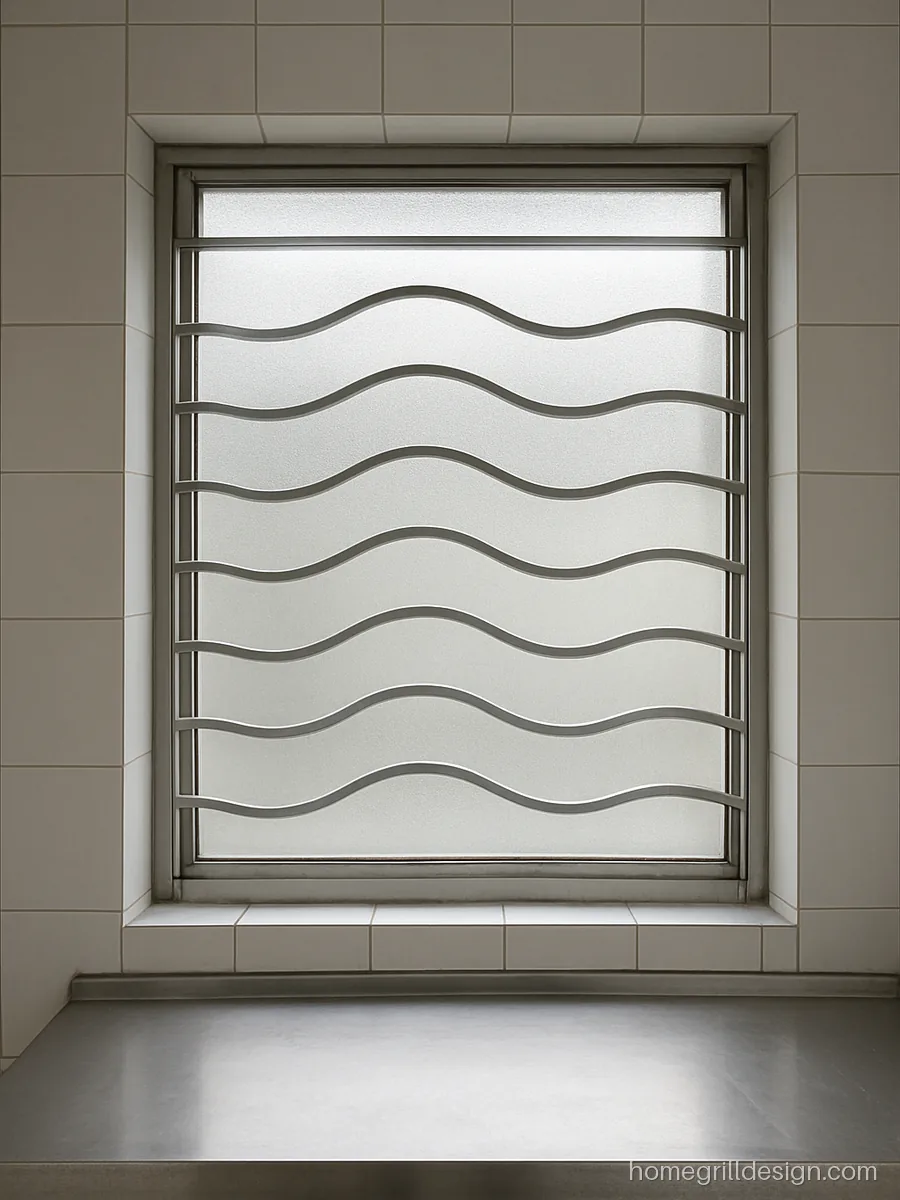

Wavy strips between straight ones look soft and friendly in a kitchen. SS is the right call here because steam and oil fumes rust MS fast.
- MaterialSS 304, 25 x 3 mm flat
- StyleWave strips
- SuitsKitchens
Fabricator’s tip Bend the waves on a jig so every strip matches, then fit a steel mosquito mesh frame behind.

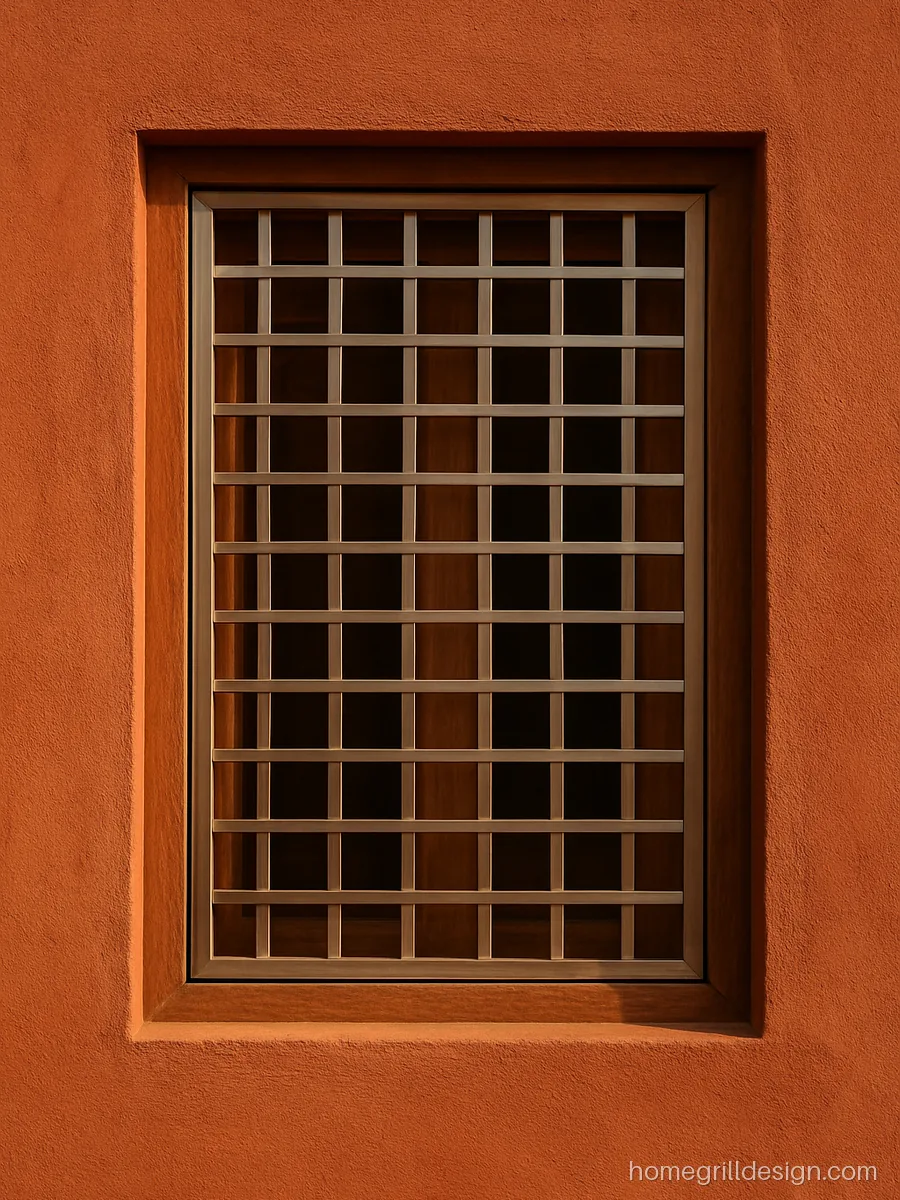

Small boxes of flat strip create a dense screen that also gives privacy from the street. It looks warm on an earthy wall colour.
- MaterialSS 202, 20 x 3 mm flat
- StyleInterlocking boxes
- SuitsStreet facing rooms
Fabricator’s tip Box patterns have many joints, so allow extra time for grinding and buffing each one.

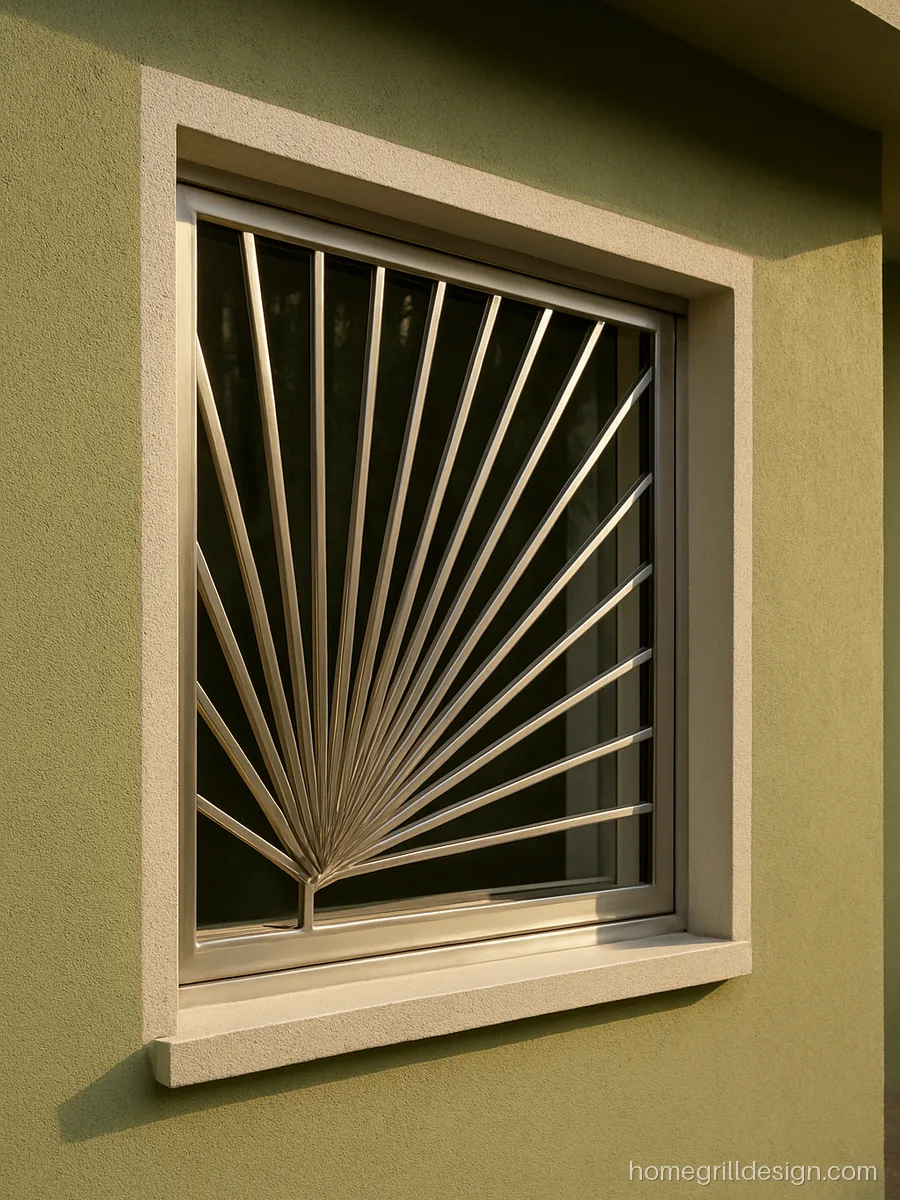

Strips that fan out from one lower corner turn a plain corner window into a feature. Keep it to one window per facade so it stands out.
- MaterialSS 304, 25 x 5 mm flat
- StyleSun ray fan
- SuitsCorner windows
Fabricator’s tip Lay the full design out in chalk on the shop floor first, so the rays meet at one point.
Steel Grill Design with Glass
Some families want a steel glass grill that doubles as the window itself. Here the steel frame holds toughened glass panels, so you get security and a clean look in one unit. For more glass ideas see our window glass design page.

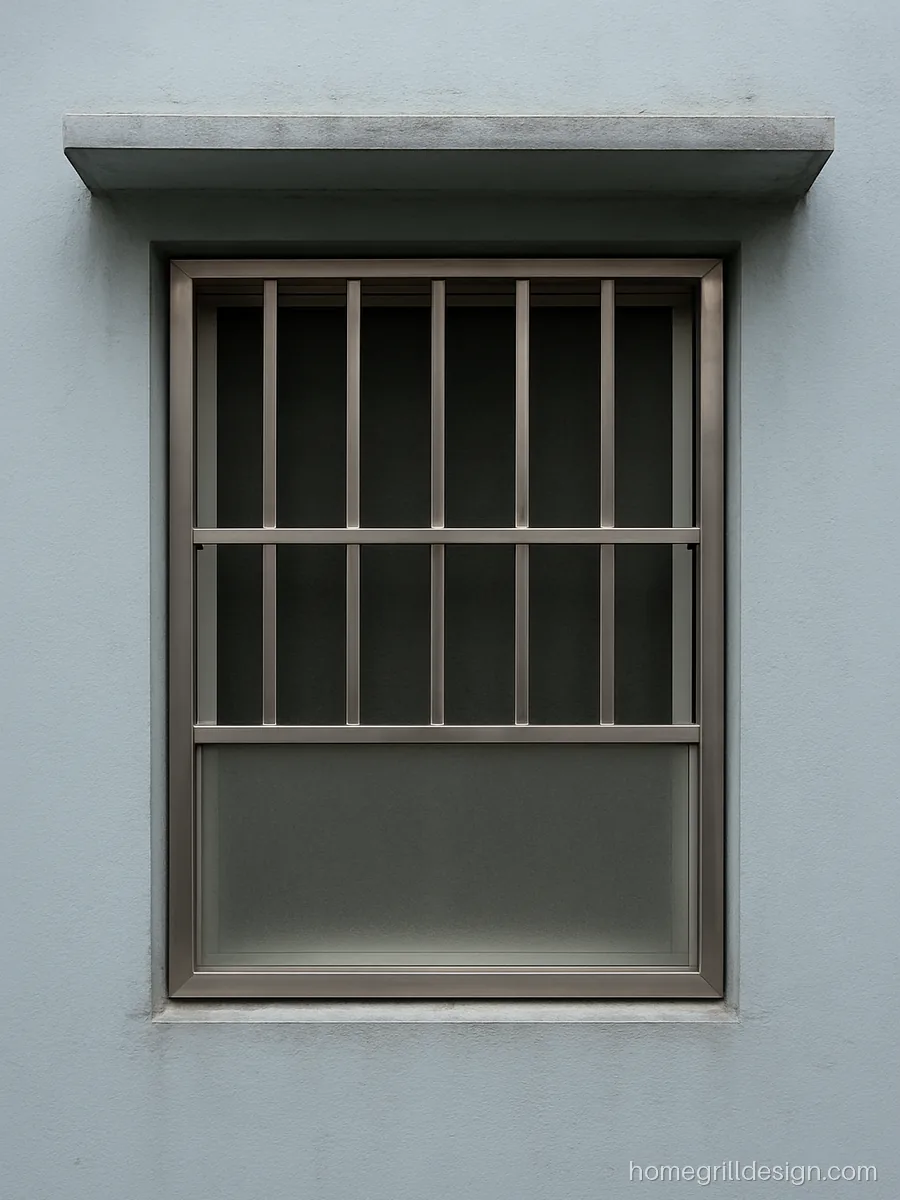

The lower half has frosted glass set into the steel frame, the upper half stays open bars for air. Ideal for a bathroom on the street side.
- MaterialSS 304 tube, glass
- StyleHalf glass, half bars
- SuitsBathrooms
Fabricator’s tip Use silicone sealant and rubber beading for the glass, never fix glass directly against welded steel.

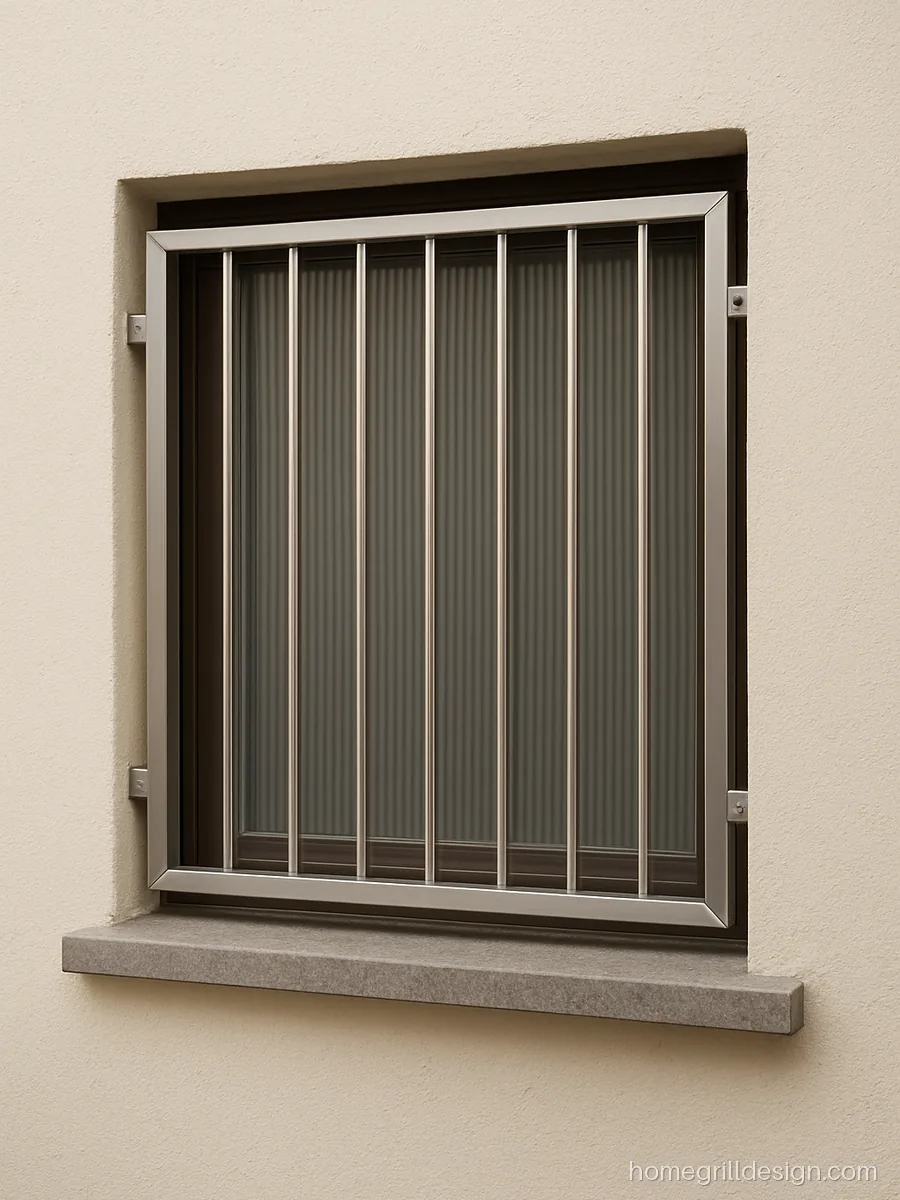

Narrow fluted glass strips sit between steel bars and blur the view without blocking light. A neat answer for a ground floor room near the road.
- MaterialSS 202 bar, fluted glass
- StyleBars with glass strips
- SuitsGround floor rooms
Fabricator’s tip Make the glass strips removable with screw-on beading so a cracked one can be swapped easily.

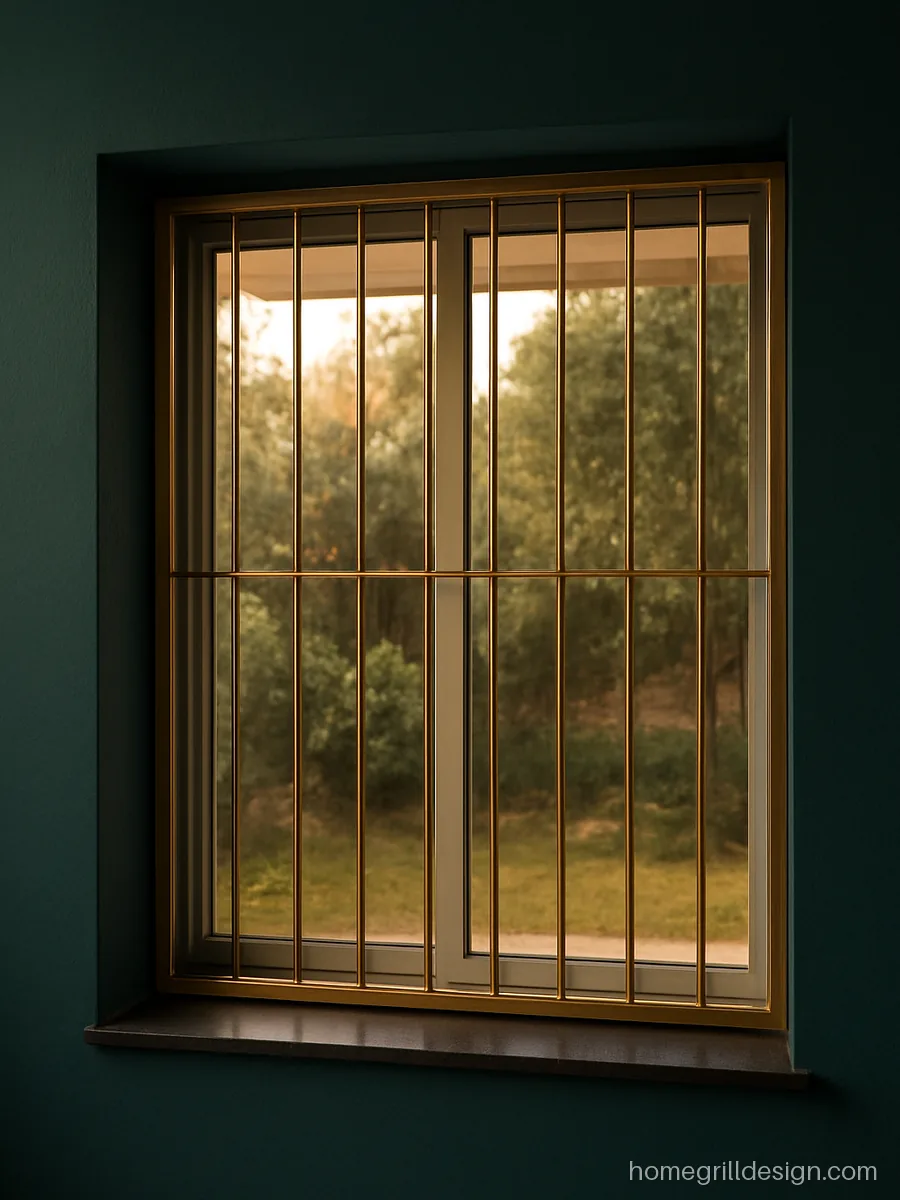

A thin gold tone coated steel grill looks rich against a deep wall colour. Keep the pattern simple so the colour does the talking.
- MaterialSS 304, gold coated
- StyleSlim rectangles
- SuitsLounges and halls
Fabricator’s tip Coloured coating costs more than plain SS, so finalise the size exactly before sending pieces for coating.
Home Front Steel Grill Design for the Elevation
A house front steel grill design is seen by every visitor, so it should match the elevation, railing and even the gate. Use 304 here because the front takes the most sun and rain.

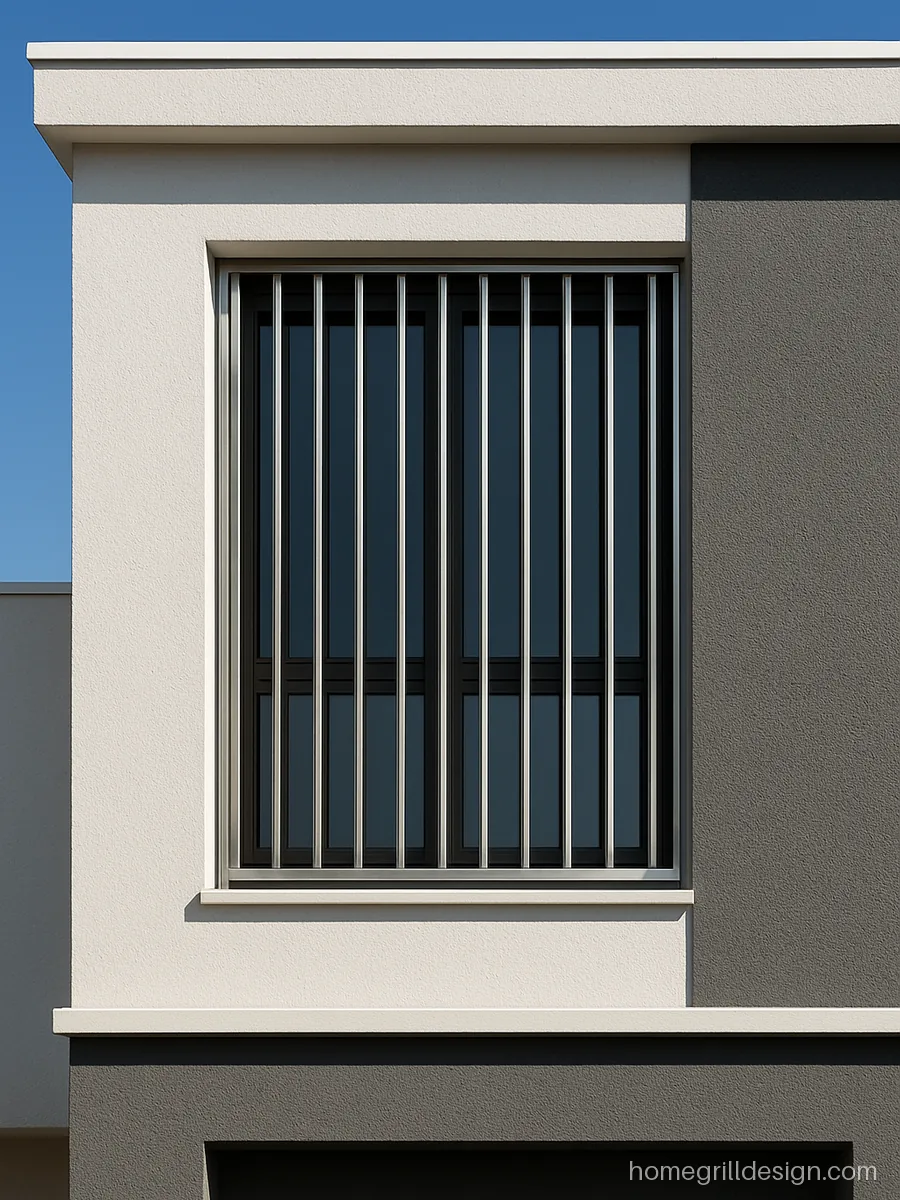

Long steel lines on a double height front window make the house look taller. A front steel grill design like this matches a steel balcony railing above.
- MaterialSS 304, 32 x 16 mm tube
- StyleFull height verticals
- SuitsIndependent houses
Fabricator’s tip Split a double height grill into two welded halves for transport and join them on site with hidden bolts.

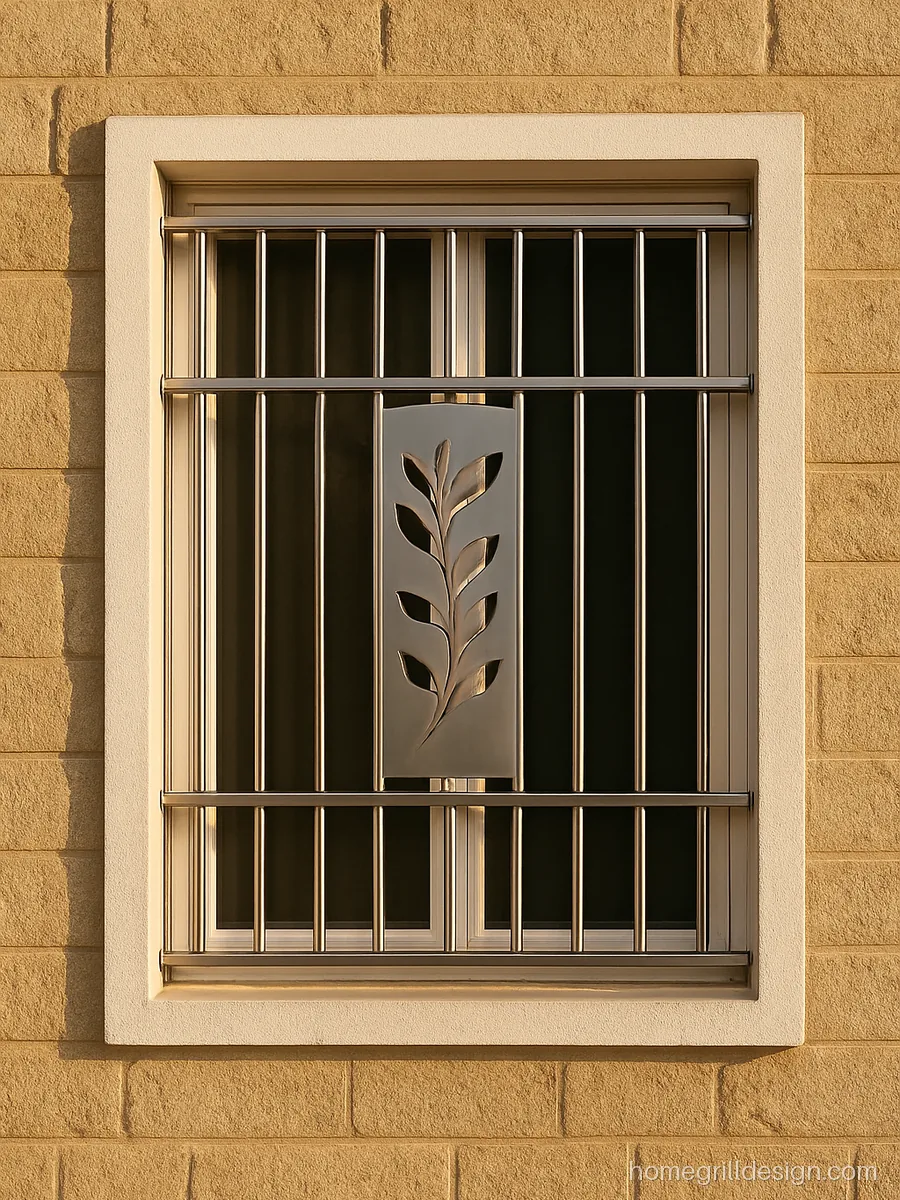

A single laser cut leaf panel sits inside plain steel bars. It gives the home front a signature look without making the whole grill busy.
- MaterialSS 304, 2 mm sheet
- StyleLaser cut leaf panel
- SuitsHome front windows
Fabricator’s tip Laser cutting adds cost, so use one panel in the centre and keep the rest plain bars.

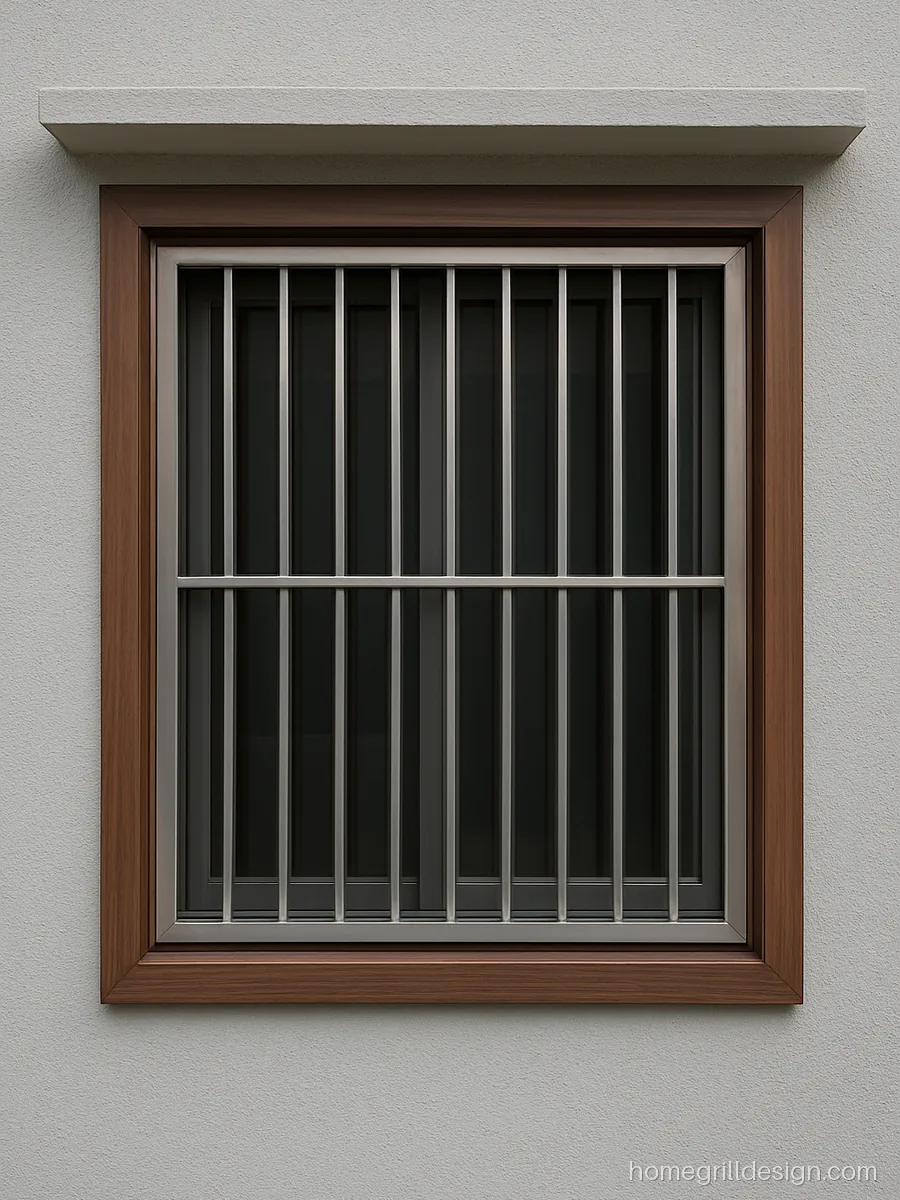

Steel bars inside a wood finish outer frame give warmth to a modern duplex front. The wood look is a coating, so it does not rot in rain.
- MaterialSS 304, wood finish
- StyleWood frame, steel bars
- SuitsDuplex fronts
Fabricator’s tip Ask for an outdoor grade wood finish coating and seal the frame corners so water cannot seep in.
Simple Steel Grill Design for Flats
In a rented or small flat, a simple steel grill design keeps cost and clutter low. These are quick to make and easy for the society to approve.
Plain bars with one hinged section that locks from inside. This is the safest layout for a bedroom in a high rise flat.
- MaterialSS 202, 16 mm pipe
- StylePlain bars, hatch
- SuitsHigh rise bedrooms
Fabricator’s tip Fit the emergency hatch at a height an adult can reach easily and keep the key hanging nearby.

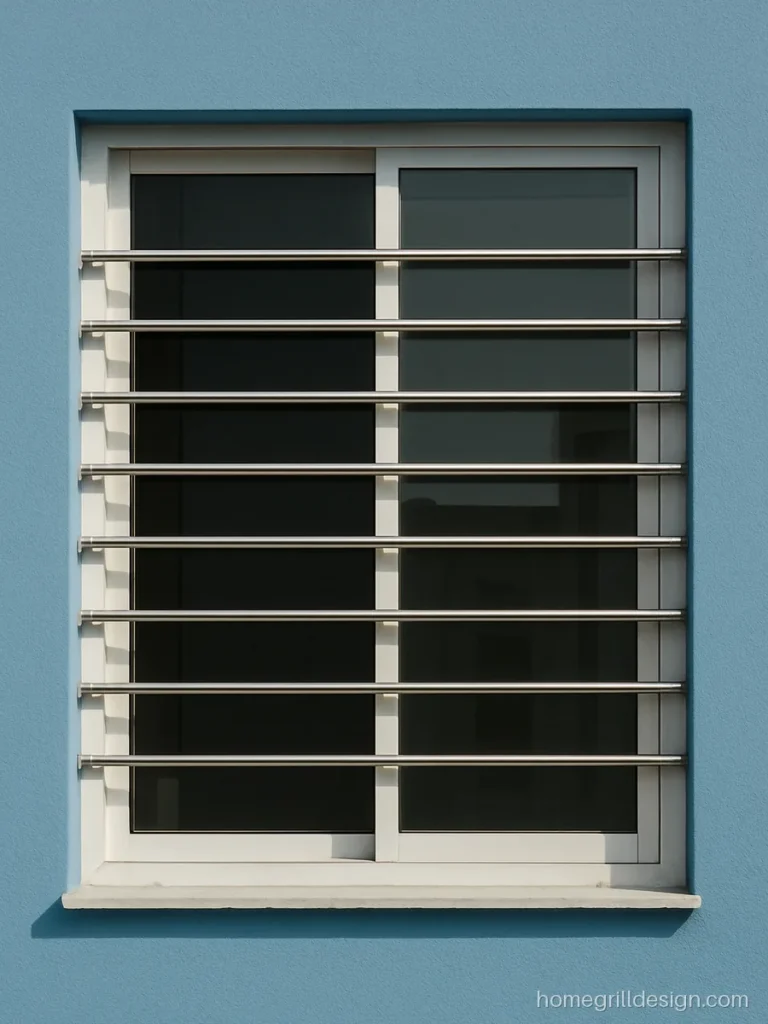

Horizontal pipes suit wide sliding windows and leave the view open. Use this only on windows with a high sill so children cannot climb it.
- MaterialSS 202, 1/2 inch pipe
- StyleHorizontal lines
- SuitsHigh sill windows
Fabricator’s tip Add two hidden vertical stiffeners behind the pipes so long runs do not sag over time.

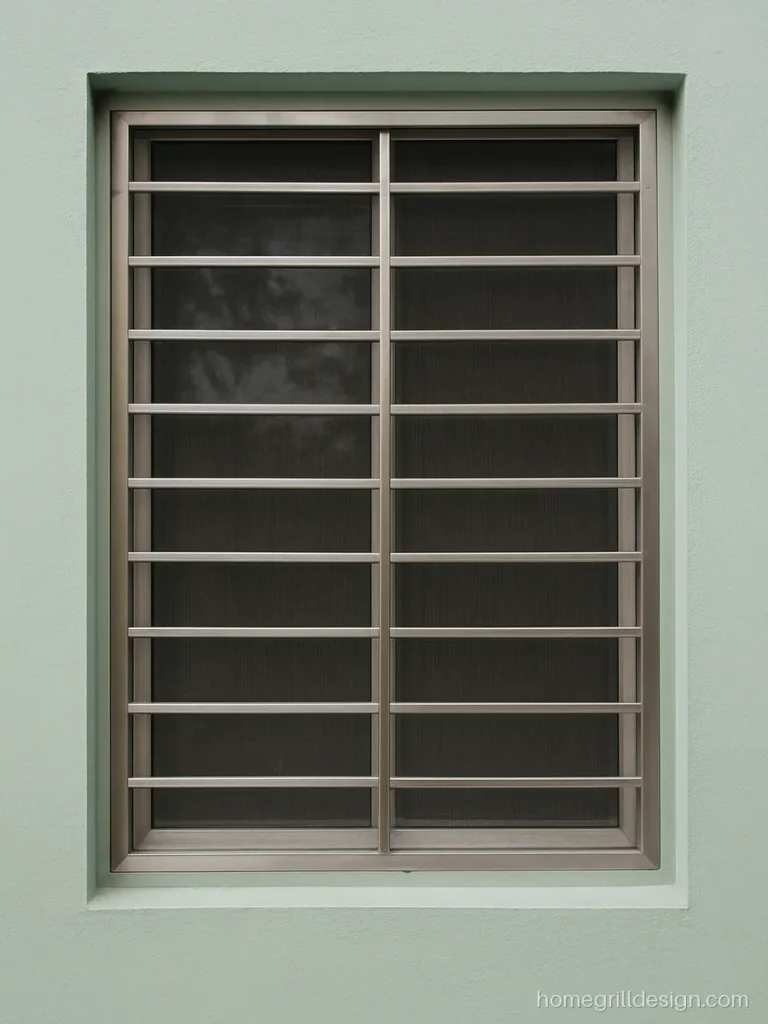

Square bars in front and fine steel mesh behind keep out both intruders and mosquitoes. A practical steel grill design for home windows near trees.
- MaterialSS 304, 12 mm sq bar
- StyleBars with mesh
- SuitsHomes near greenery
Fabricator’s tip Fix the mesh on a separate frame with screws so it can be removed and washed twice a year.
SS 304 vs SS 202: Which Steel Grill Design Grade to Choose
Both grades look the same on the day of fitting. The difference shows up after a few monsoons.
| Point | SS 304 | SS 202 |
|---|---|---|
| Rust near the sea | Very good resistance | Can show spot rust |
| Humid inland towns | Very good | Fair, needs wiping |
| Dry inland cities | Very good | Good |
| Cost | Higher | Lower |
| Best use | Front, coastal, kitchens | Upper floor rooms inland |
Ask the fabricator to write the grade on the bill. What raises the cost of any stainless steel window grill design is the grade, the pipe wall thickness, the number of joints, laser cut panels and colour coating.
Fitting and Care of SS Grills
Plan the steel grill design window by window, since a kitchen and a bedroom need different things.
- Fixing: SS anchor bolts on finished walls, or holdfasts set into masonry during construction.
- Welding: TIG welds look cleaner. Grind and buff every joint.
- Openable section: keep one locking section in bedrooms for a fire exit.
- Cleaning: soapy water and a soft cloth. No acid cleaners or steel wool.
Prefer painted steel in colour? See our grill colour design ideas.
Grill design questions
Which is better for a window, a steel grill or an iron grill?
Stainless steel does not need paint and keeps its shine, so it saves upkeep. MS iron is stronger for the same size and costs less up front, but needs repainting every 2 to 3 years. For coastal homes and kitchens, steel is the better choice.
Is SS 202 good enough for a steel window grill design?
Inland, on upper floors, SS 202 works well if you wipe it now and then. Near the sea or on a front that takes heavy rain, pay for SS 304. It resists rust far better.
What is the most popular new steel grill design right now?
Square tube grids, offset vertical lines and black coated steel are most asked for in city flats. For independent houses, tall vertical lines on the front with one laser cut panel are popular.
Can a steel grill design be made with glass?
Yes. The steel frame can hold frosted, fluted or clear toughened glass in some panels. Ask for rubber beading and silicone so the glass does not touch bare steel.
How do I clean stainless steel window grill design patterns?
Use a soft brush for dust in corners, then wipe with soapy water and dry it. Skip acid cleaners and steel wool. Near the sea, rinse with fresh water monthly.
