Modern Window Grill Design Ideas for New Homes

15 designs Window grills and windows Updated 8 Oct 2026

A modern window grill design is about straight lines, slim sections and quiet colours. No scrolls, no flowers, no shiny paint. The grill should look like part of the window frame, not something added later.

These 15 modern window grill design photos cover the looks owners ask for right now: horizontal lines, box grills with offset bars, laser cut sheets, black matt finishes, wood look grills and slim grills for sliding windows. Each one has the material and a fitting tip, so your fabricator knows exactly what to build.

Need a plainer look? See simple window grill ideas. For the same style on balconies and doors, visit modern grill designs.

Horizontal Line Modern Window Grill

Horizontal lines make a house look wider and lower, a big part of the current style. Use them on upper floors or where no small child can climb.

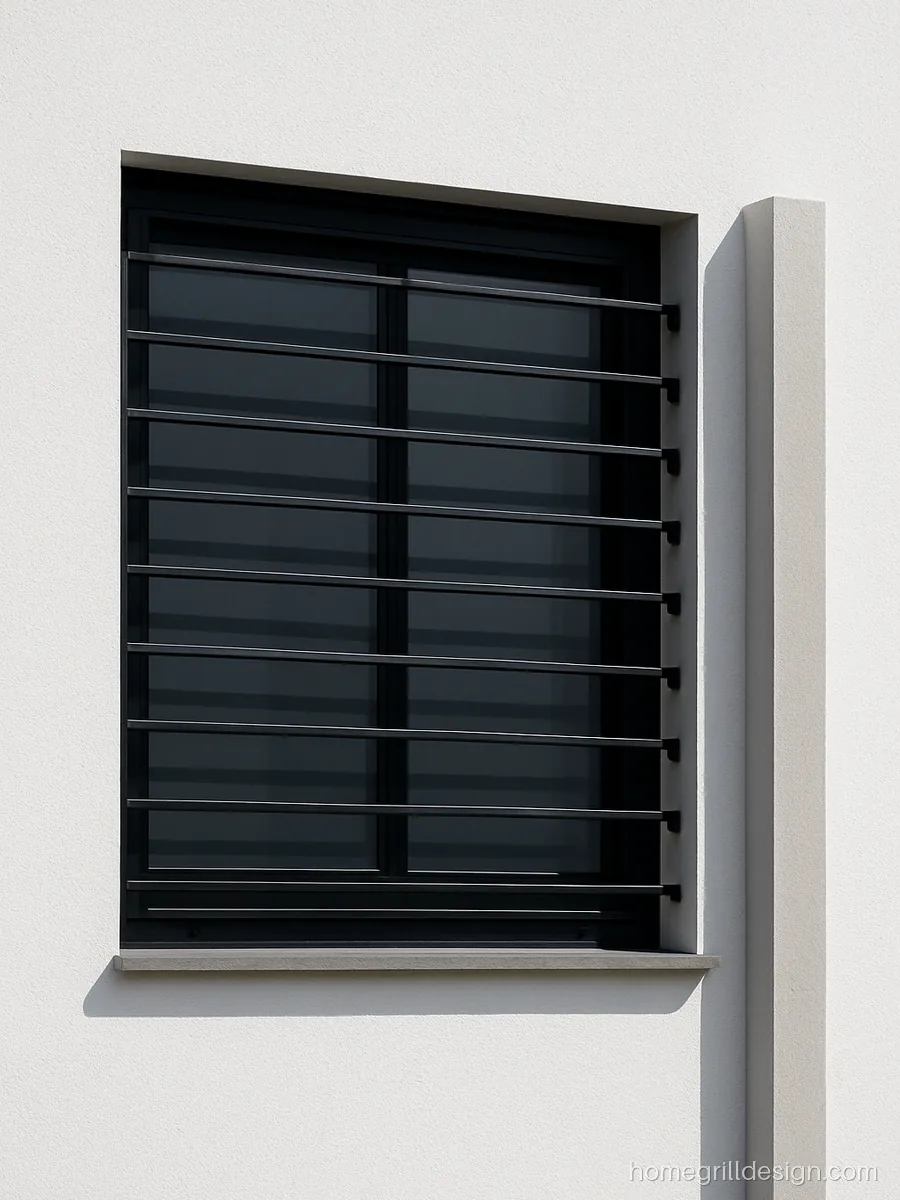

Modern window grill design with thin horizontal lines in black on white — Thin black lines across a white facade give a sharp, architect-drawn look. Best on first floor windows.
*Material*MS 25 x 10 mm tube
*Style*Horizontal lines
*Suits*First floor rooms
**Fabricator’s tip** Keep every line on one level with a laser level. Even a small tilt shows from the road.

Horizontal bar window grill with one vertical spine in dark grey — One upright spine ties the horizontal bars and makes them stiff without adding clutter.
*Material*MS 16 mm square tube
*Style*Lines with one spine
*Suits*Upper floor bedrooms
**Fabricator’s tip** Place the spine off-centre, about one third from the side. It looks deliberate.

Modern corner window grill with long horizontal tubes wrapping two walls — On a corner window, the lines wrap around both sides and make the house look sleek from the street.
*Material*MS 1 x 1/2 inch tube
*Style*Wrap-around lines
*Suits*Corner rooms
**Fabricator’s tip** Mitre the tubes at the corner and grind the joint smooth so it reads as one line.

Modern Box Window Grill Design with Offset Bars

A modern box window grill design breaks the grid on purpose. Boxes of different sizes or bars at two depths look current without extra cost.

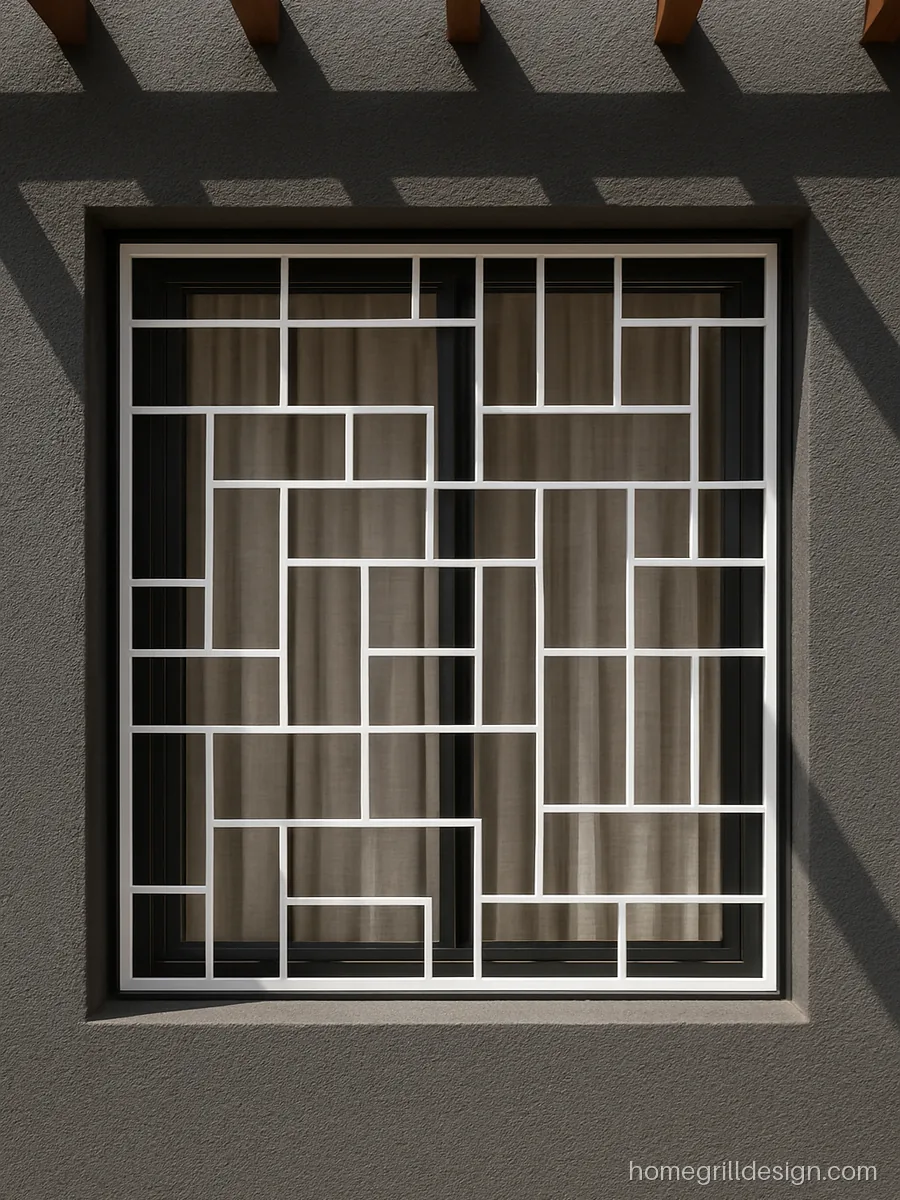

Modern box window grill design with random rectangles in white — Rectangles of different sizes look like a modern painting. Keep the largest opening under 4 inches wide for safety.
*Material*MS 12 mm square bar
*Style*Random rectangles
*Suits*Living rooms
**Fabricator’s tip** Draw the random layout on paper first and get the family to approve it.

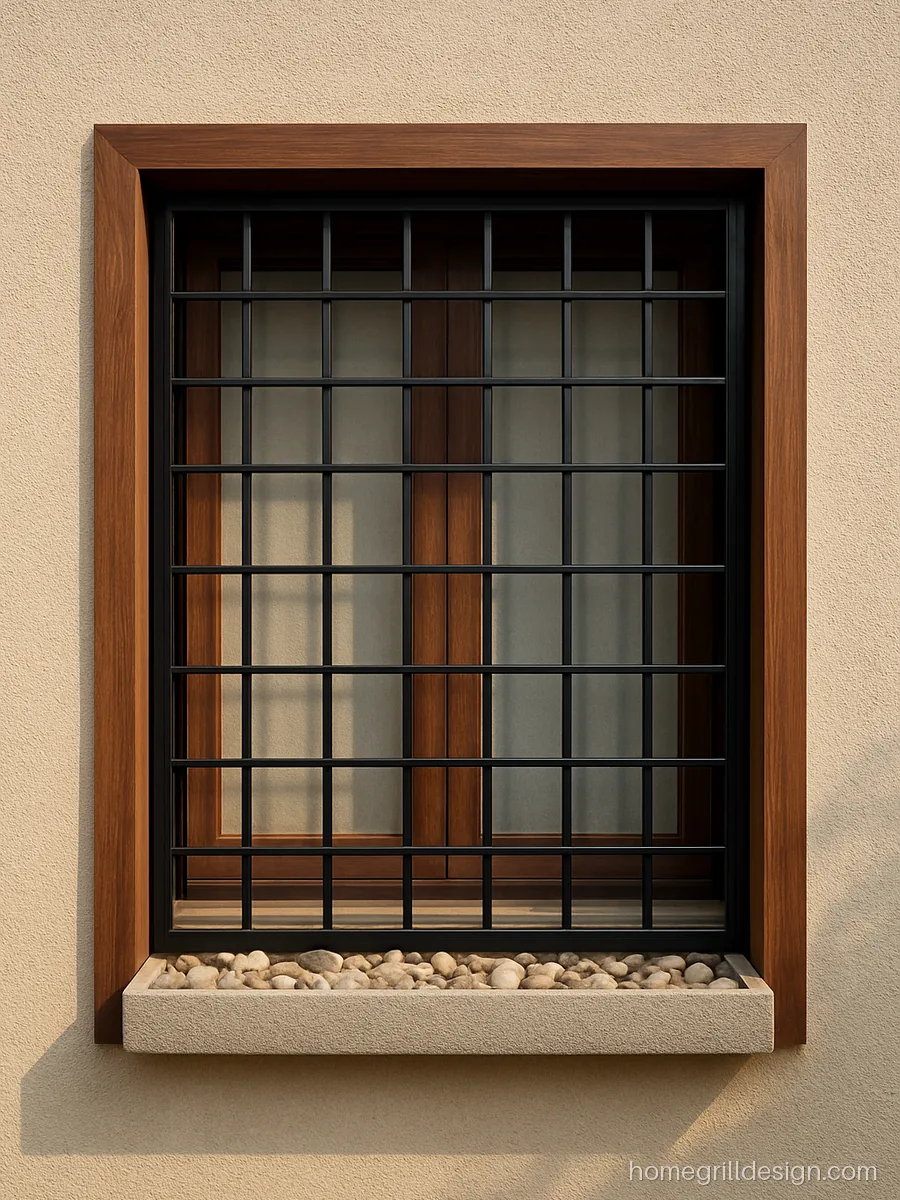

Box grill with offset bars at two depths in black matt on a beige wall — Front and back bars sit at different depths, so the grill changes as you walk past. A strong but light look.
*Material*MS 16 mm square tube
*Style*Offset two-depth box
*Suits*Front bedrooms
**Fabricator’s tip** Join the two layers with short spacer stubs and grind every weld before priming.

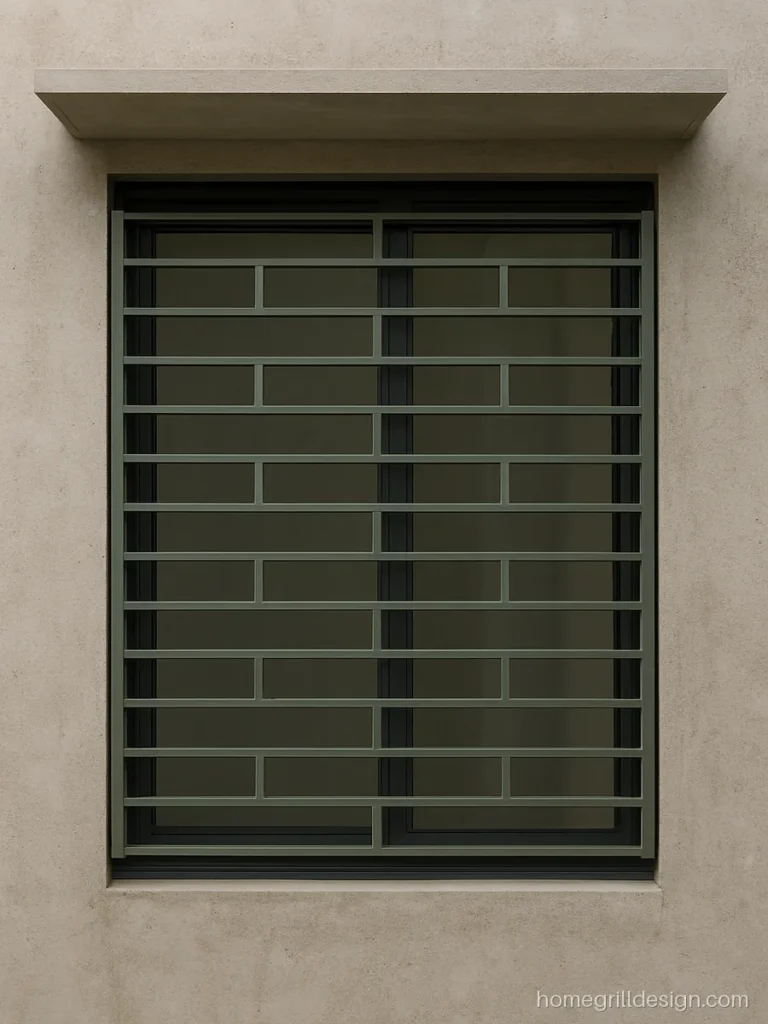

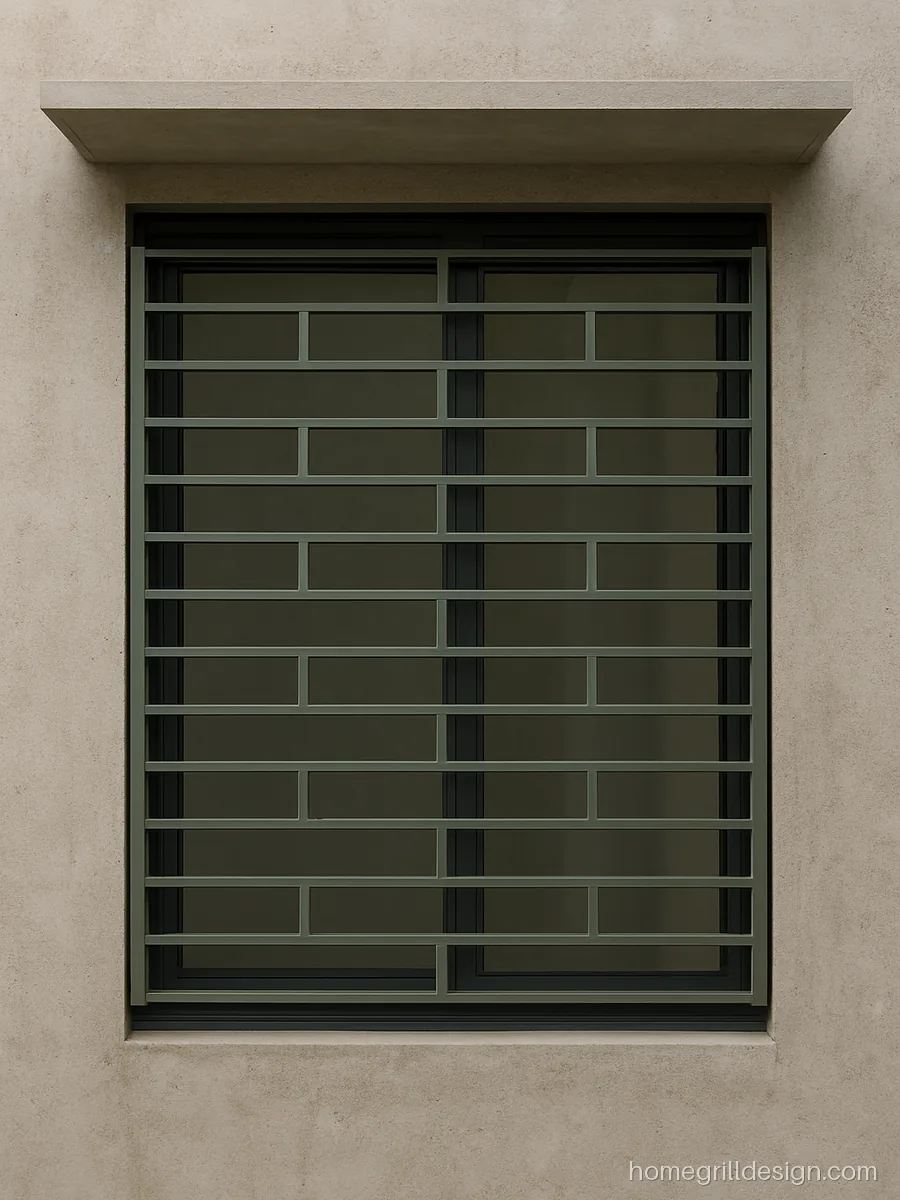

Stylish window grill design new style with stretched boxes in olive — Wide, flat boxes stacked like bricks give a calm new model look. Olive green softens a concrete facade.
*Material*MS 1 inch square tube
*Style*Brick-bond boxes
*Suits*Modern houses
**Fabricator’s tip** Use PU paint for muted olive. It holds colour longer in sun than enamel.

Laser Cut Sheet: Latest Window Grill Design

Laser cut sheets are the latest window grill design trend for privacy. The pattern is cut by machine, so every panel matches.

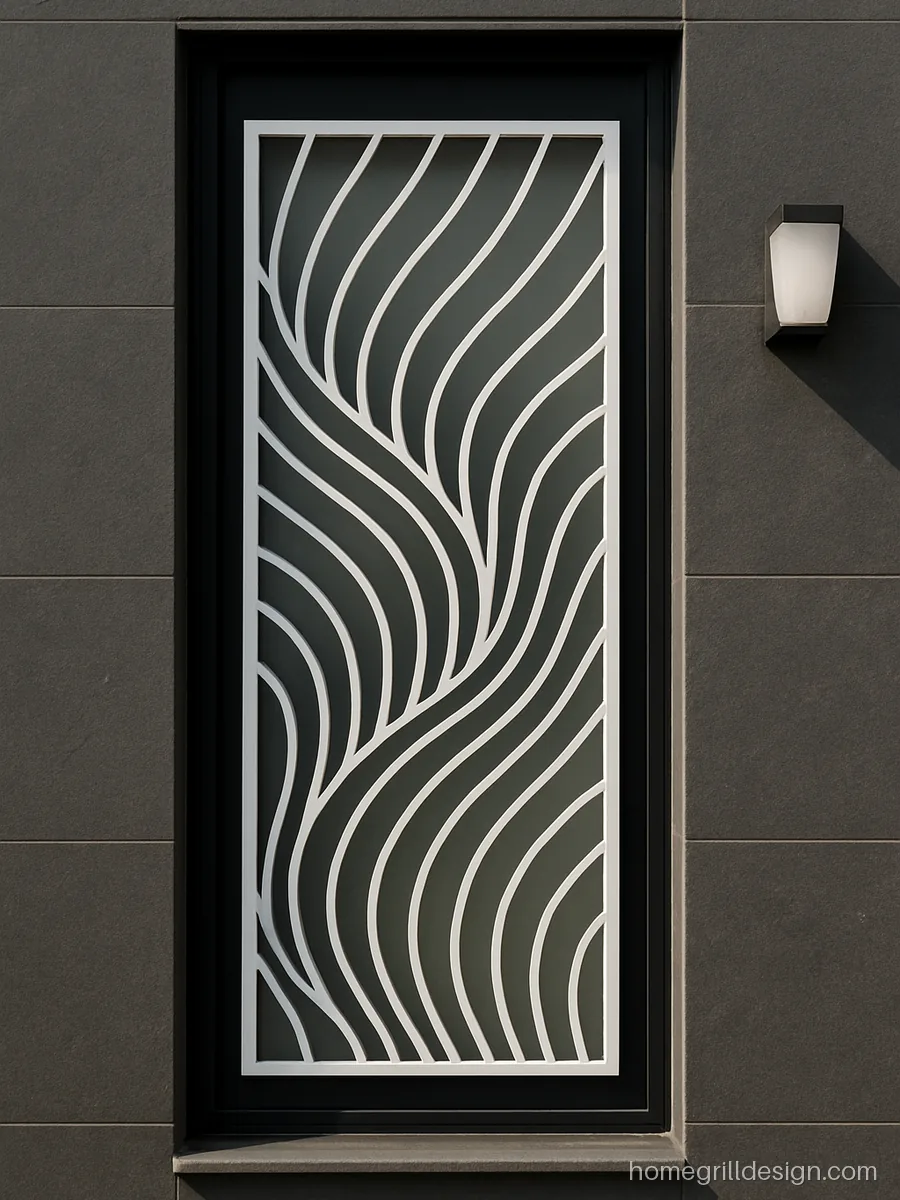

Laser cut wave pattern window grill in white on a staircase window — Soft wave lines filter light on a tall stair window. Gives full privacy with no curtains.
*Material*MS 3 mm laser cut sheet
*Style*Wave pattern
*Suits*Staircase windows
**Fabricator’s tip** Fold the sheet edges or add a tube frame so a thin sheet does not bend.

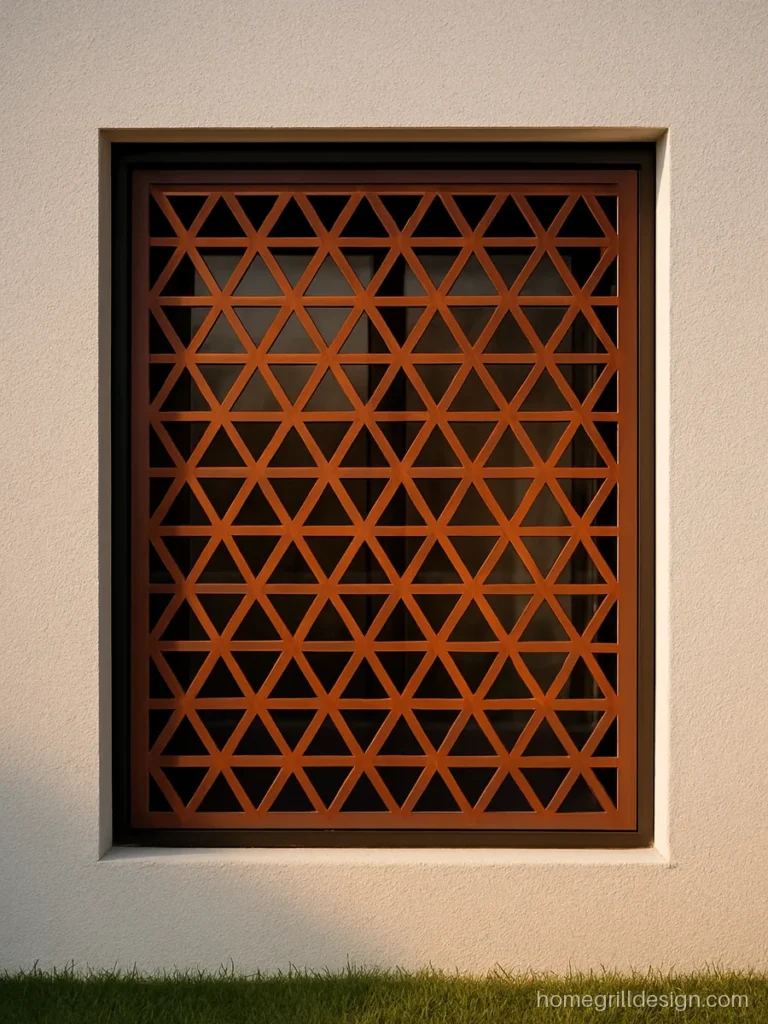

Geometric laser cut window grill with a rusty corten look finish — A triangle pattern in a rust-brown finish looks raw and modern against white walls. Popular on front elevations.
*Material*MS 3 mm sheet
*Style*Triangle geometric
*Suits*Front elevations
**Fabricator’s tip** Use a corten look powder coat on MS. Real rust would stain the white wall.

Perforated dot pattern window grill in champagne for a bathroom — Small round holes in gradient sizes give privacy at eye level and more light at the top.
*Material*Aluminium 3 mm sheet
*Style*Gradient dots
*Suits*Bathrooms
**Fabricator’s tip** Pick aluminium sheet for bathrooms. It does not rust in steam.

Black Matt, Aluminium and Wood Look Modern Grills

Finish matters as much as pattern. Black matt, modern aluminium and wood look grills are what most new homes ask for right now.

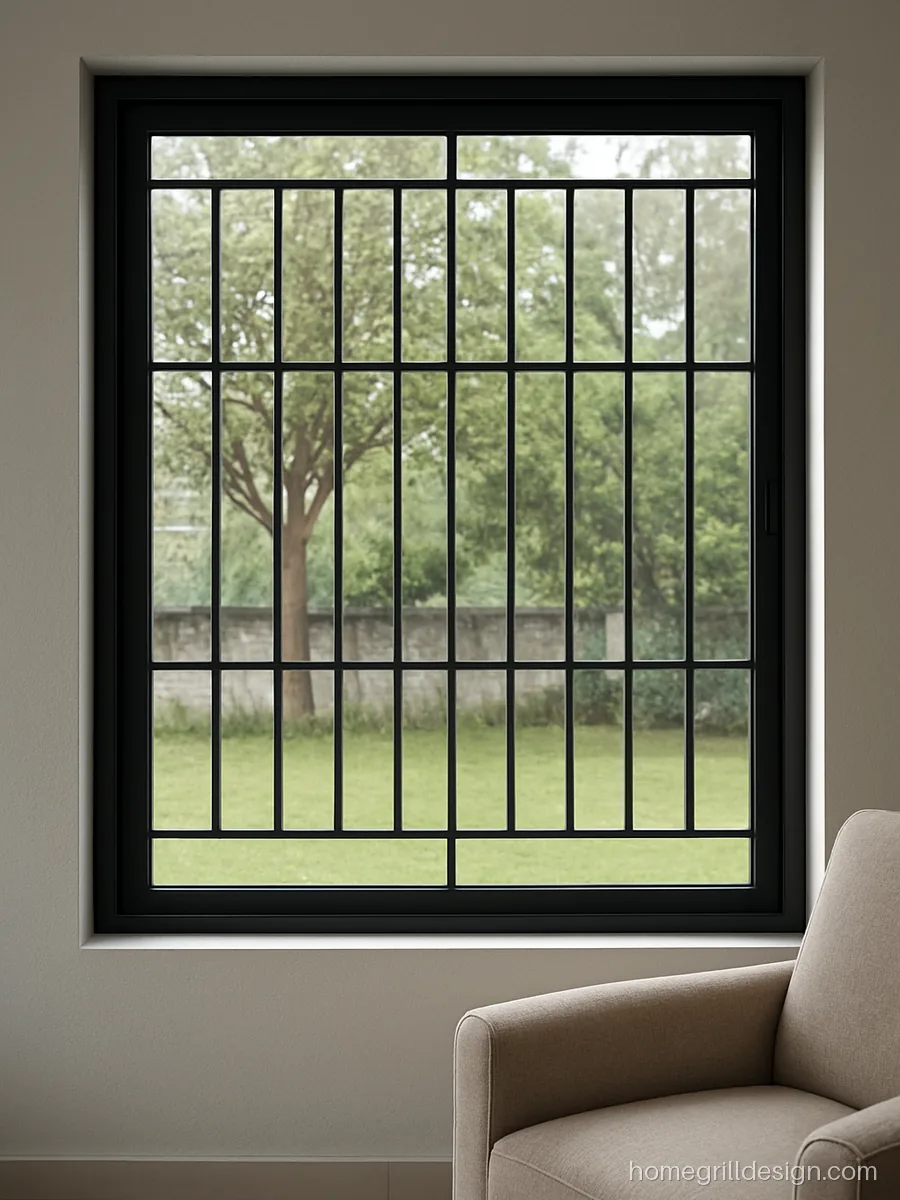

Modern window grill in black matt with slim square tubes on a wide window — Slim black tubes almost vanish against dark glass, leaving a clean modern window.
*Material*MS 3/4 inch square tube
*Style*Slim vertical tubes
*Suits*Wide living windows
**Fabricator’s tip** Black matt shows weld marks. Grind and fill every joint before the final coat.

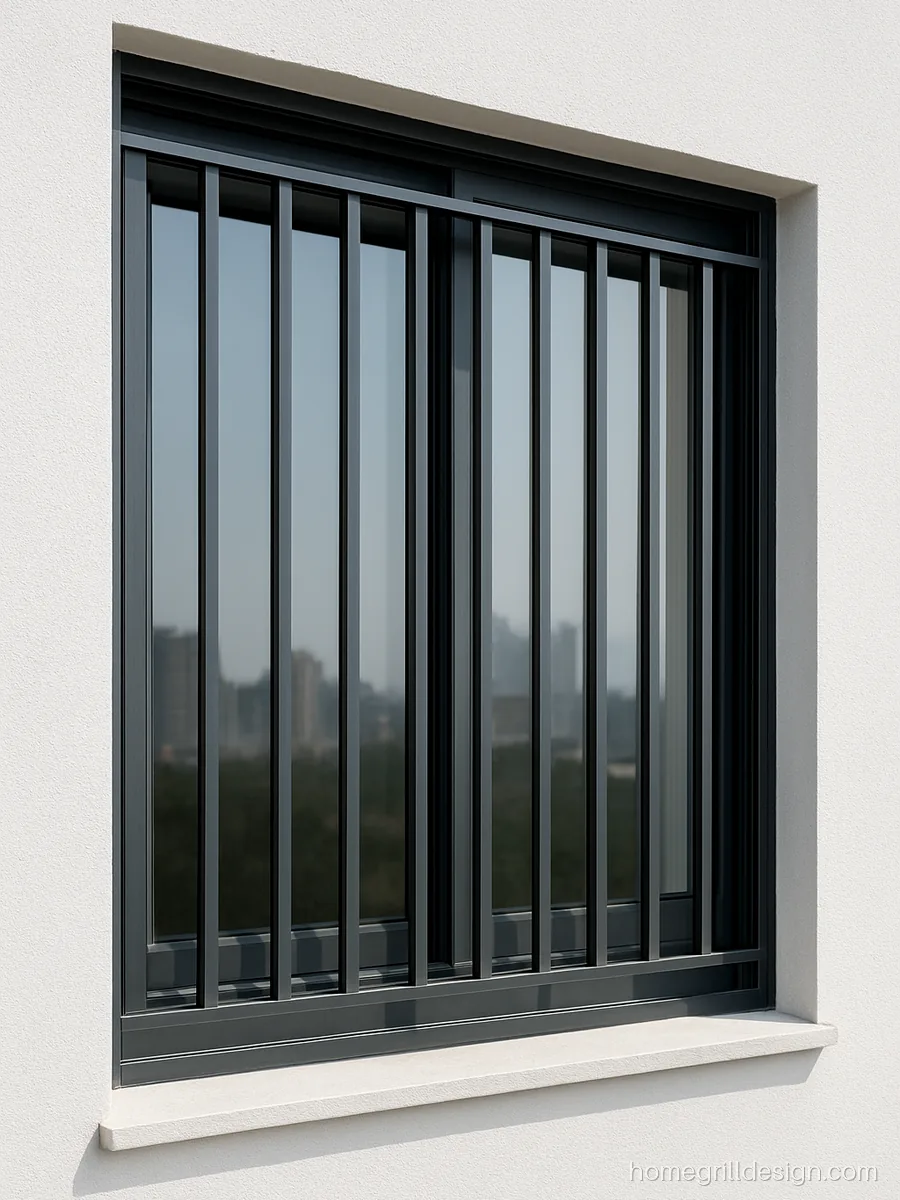

Modern aluminium window grill design in anthracite grey on a flat — Anthracite aluminium sections match modern window frames and never rust. A good pick for high rise flats.
*Material*Aluminium 40 x 20 mm
*Style*Vertical fins
*Suits*High rise flats
**Fabricator’s tip** Fix with SS screws and nylon sleeves to avoid corrosion between metals.

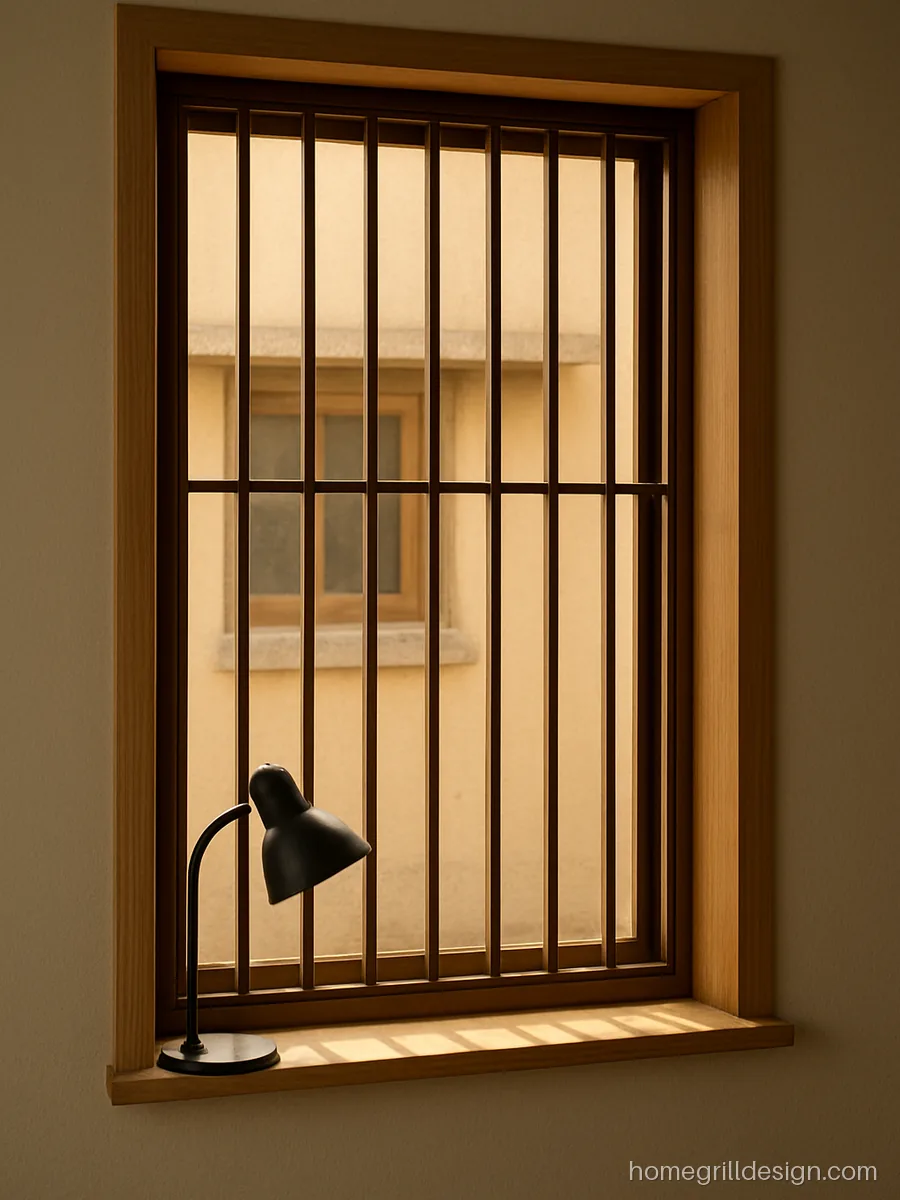

Modern wooden window grill design with walnut finish vertical slats — Walnut finish slats on steel give a warm wood window grill design latest look with no termite worry.
*Material*MS tube, walnut finish
*Style*Vertical slats
*Suits*Bedrooms and studies
**Fabricator’s tip** Seal wood finish paint with clear PU and recoat when the sheen fades.

Modern Window Grill Design for Sliding Window

Sliding windows are now standard in new flats and houses. The grill must sit clear of the track and match the slim frame.

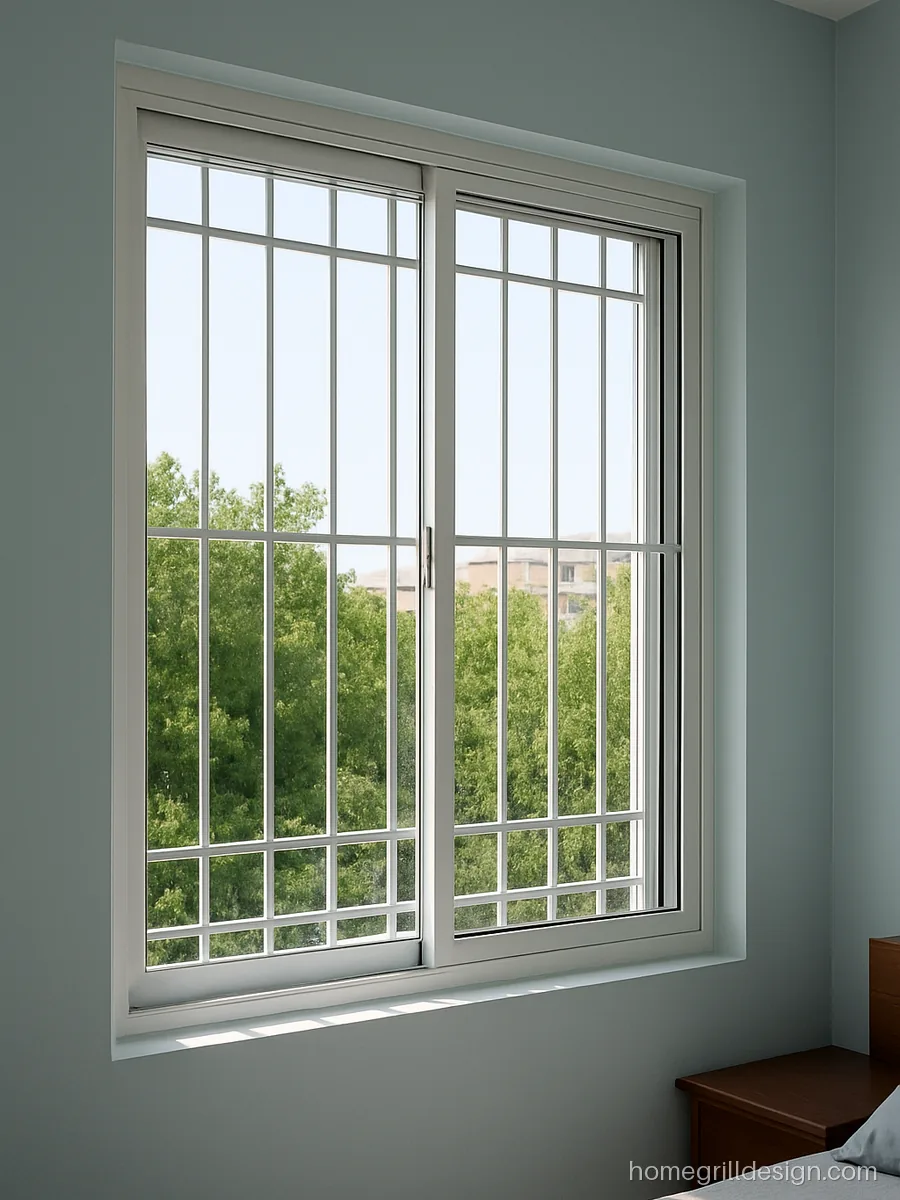

Modern sliding window grill with an openable section in white — One part of the grill opens on hinges for fire escape and glass cleaning. A must in flat bedrooms.
*Material*Aluminium 1 x 1 inch
*Style*Grid with openable part
*Suits*Flat bedrooms
**Fabricator’s tip** Put the lock on the inside face so it opens fast without tools.

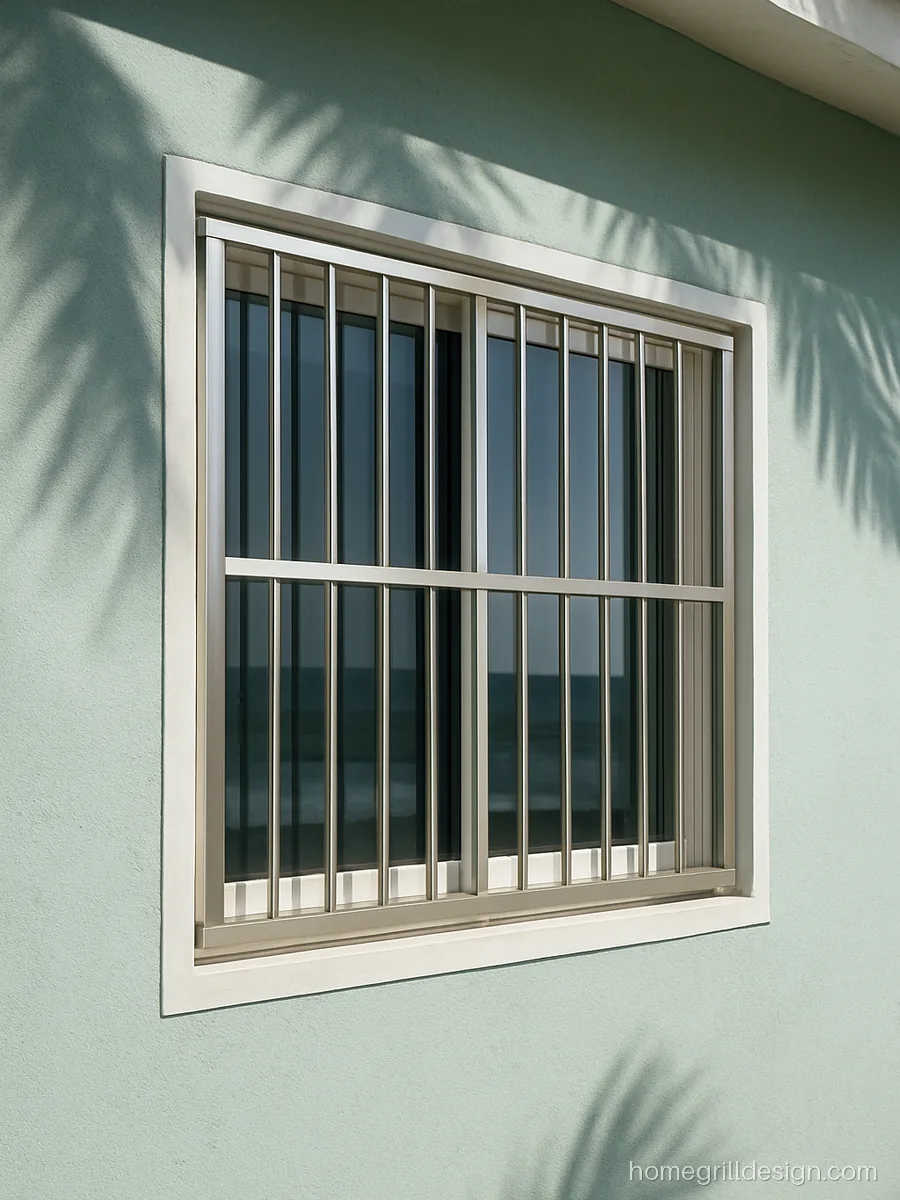

SS satin finish modern grill behind a sliding window near the sea — Satin SS 304 tubes resist salt air and look clean on a modern coastal home.
*Material*SS 304 1 inch tube
*Style*Vertical satin tubes
*Suits*Coastal homes
**Fabricator’s tip** Avoid grade 202 by the sea. It can spot rust within a season.

How to Pick a Modern Window Grill Design for Home

Modern windows grill design for home should follow three rules:

Fewer lines: bigger, cleaner sections in place of many thin ones.
Muted colour: black matt, charcoal, bronze or white.
Safety first: keep gaps under 4 inches and avoid horizontal bars where small children can climb.

A house modern window grill design should match the main gate, the balcony railing and the frame colour. Read more about colour on the grill colour page.

Modern Grill Materials and Finishes

Material	Finish	Best for
MS tube	Black matt powder coat	Ground floor security
SS 304	Satin	Coastal homes
Aluminium	Anthracite or wood foil	Sliding windows, flats
MS laser cut sheet	Powder coat	Privacy windows

Cost goes up with laser cutting, SS 304, powder coating and thicker tubes. Read the materials and sizes guide for more detail.

Fabrication and Care for Modern Grills

Clean lines leave nowhere to hide poor work. A window grill design modern in style needs straight cuts, mitred corners and welds ground flat. Ask the fabricator to:

Prime MS with zinc chromate before the top coat.
Fix it with lugs grouted into the brickwork, or expansion bolts where the wall is already finished.
Add a small drip edge on the top rail so rain does not streak the wall below.

Wipe matt finishes with a damp cloth only. Harsh cleaners leave shiny patches. Plan a repaint for MS every two to three years. Salty air shortens that.

Grill design questions

What is the latest window grill design for home?

Horizontal lines, offset box grills and laser cut sheets in black matt or charcoal are popular right now. Slim aluminium fins are common in new flats.

Which window grill design new model suits a sliding window?

Slim vertical fins or a white aluminium box grid fitted outside the track. Add one openable section with a lock in bedrooms.

Is a modern box window grill design safe for children?

Yes, if no opening is wider than 4 inches and the bars are fixed firmly. Random rectangles need checking at each gap.

Can a modern wooden window grill design last outdoors?

Real wood needs regular polish. Wood finish on steel or aluminium foil lasts much longer and does not attract termites.

Does a modern window grill need powder coating?

It is not a must, but powder coat gives an even matt finish that lasts longer than brush paint. It also reaches laser cut edges better. See the steel window grill page for SS options that need no paint.
