Safety Door Grill Design Ideas for Flats and Houses
18 designs Doors, verandahs and vents Updated 9 Oct 2026
A safety door grill design gives you a second, locked layer in front of the wooden main door, so you can keep the door open for breeze and still feel secure. In flats it also lets you check who is at the door before you open anything.
This page shows 18 grill door ideas sorted by type: single doors for flats, double doors for house fronts, iron grill doors with mesh, stainless steel doors, sliding and folding doors, and modern laser cut panels. Every photo lists the material and pattern, with one fitting tip for your fabricator.
If you want the windows to match the door, see window grill design, and for the opening above the door, see ventilator grill design.
Single Door Grill Design: Safety Main Door Grill Designs for Flats
Most flats have a 3 to 3.5 feet wide entry, so a single shutter grill door is the usual choice. Check your society rules on colour and on which way the door may swing in the corridor.

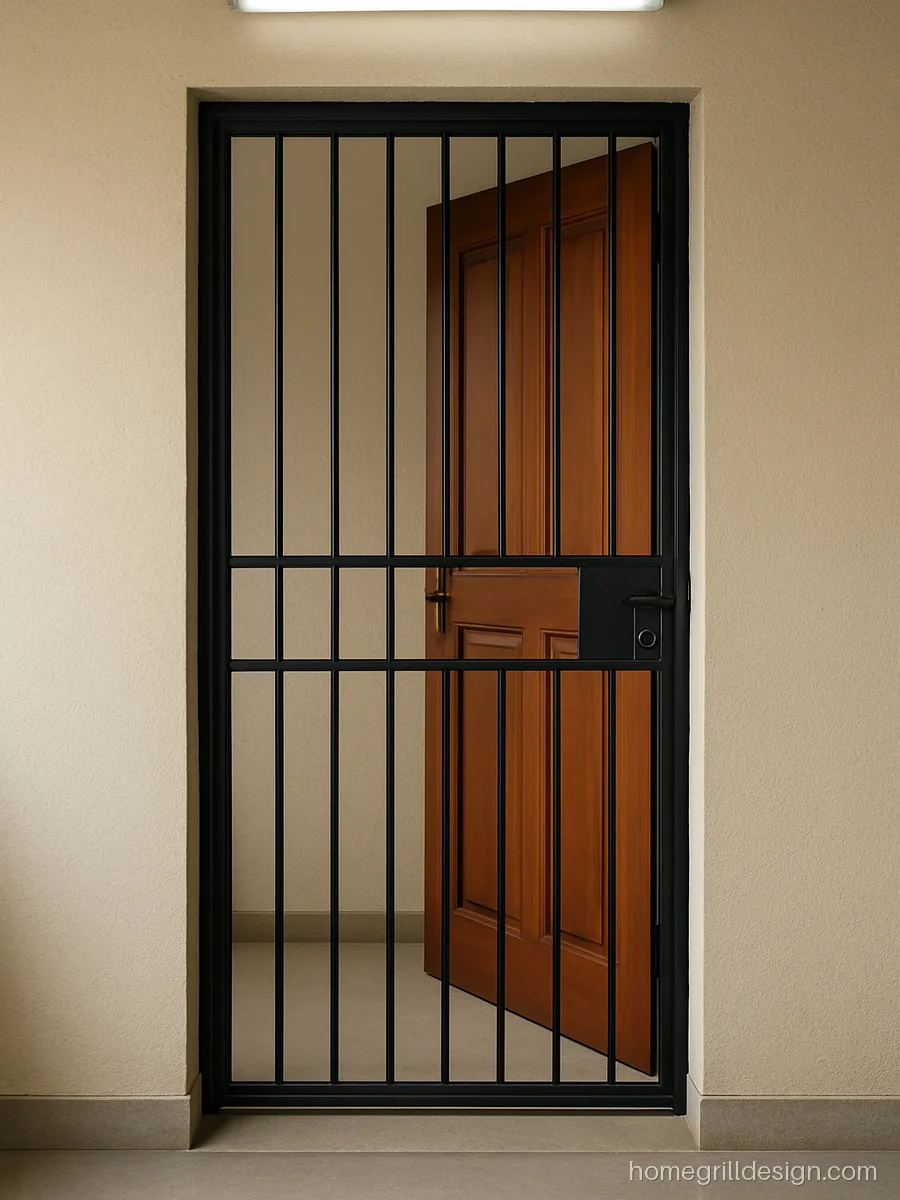

Plain vertical bars with one mid rail are the simplest main door grill for a flat. It is easy to clean and gives no foothold.
- MaterialMS 12 mm square bar
- StyleVertical bars, mid rail
- SuitsApartment entries
Fabricator’s tip Fit three heavy hinges and a lock plate with a hidden bolt so the frame does not sag.

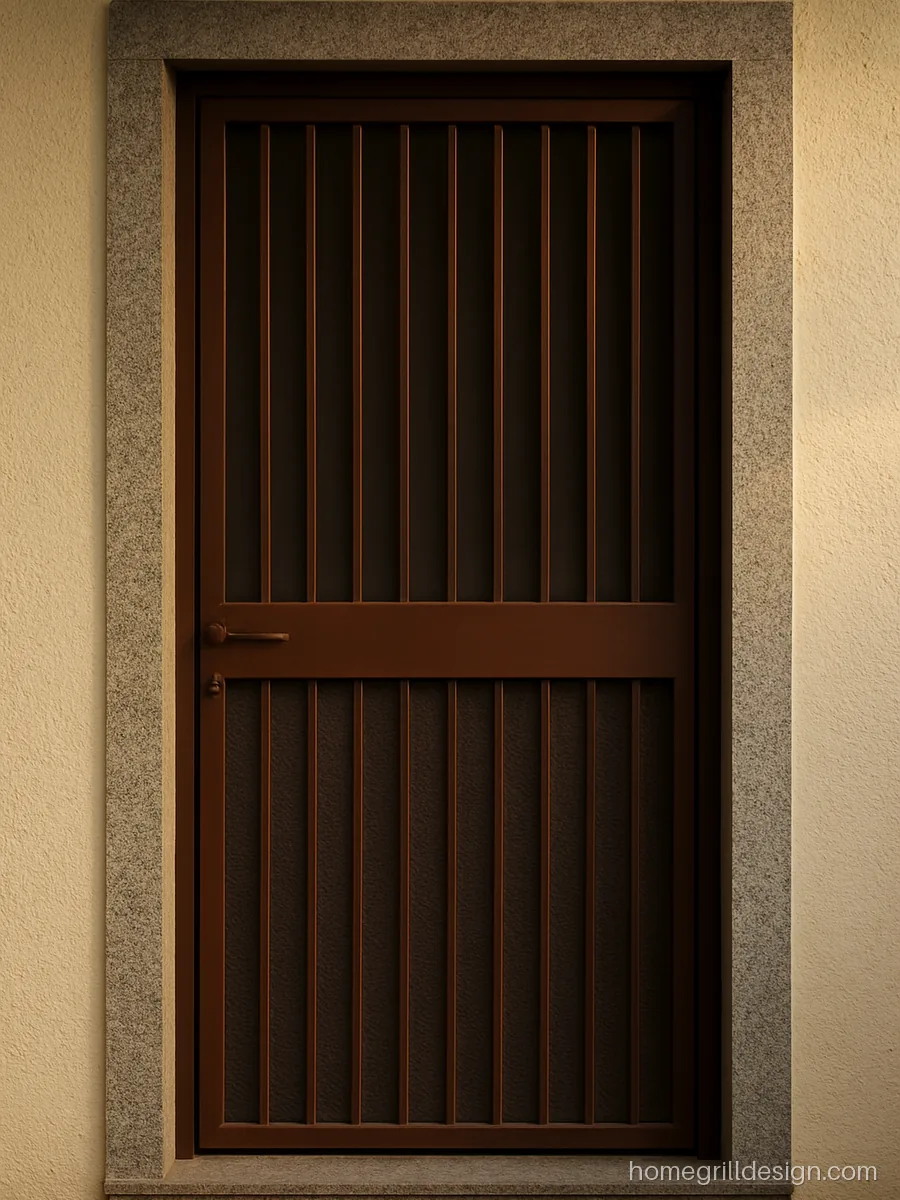

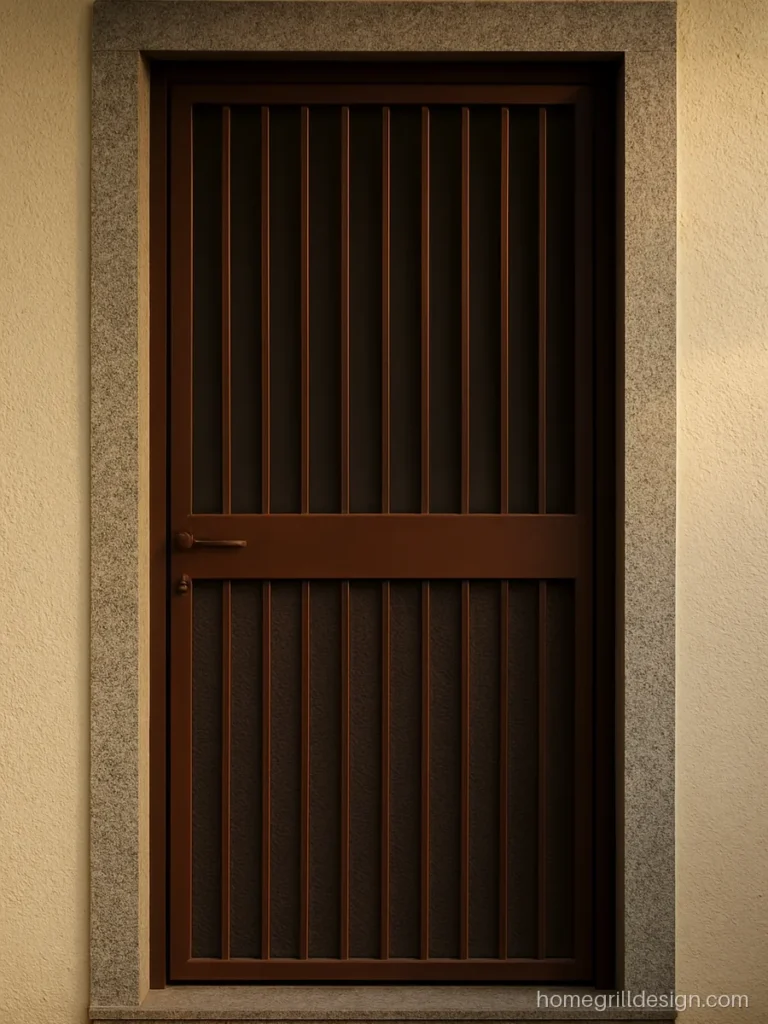

A wood tone paint matches the main door, and the lower mesh panel keeps lizards and small pests out. A good pick where the corridor is narrow.
- MaterialMS 25 x 6 mm flat
- StyleBars with lower mesh
- SuitsNarrow flat corridors
Fabricator’s tip Ask for wood grain powder coat instead of brush paint; it lasts longer on a door that is touched daily.

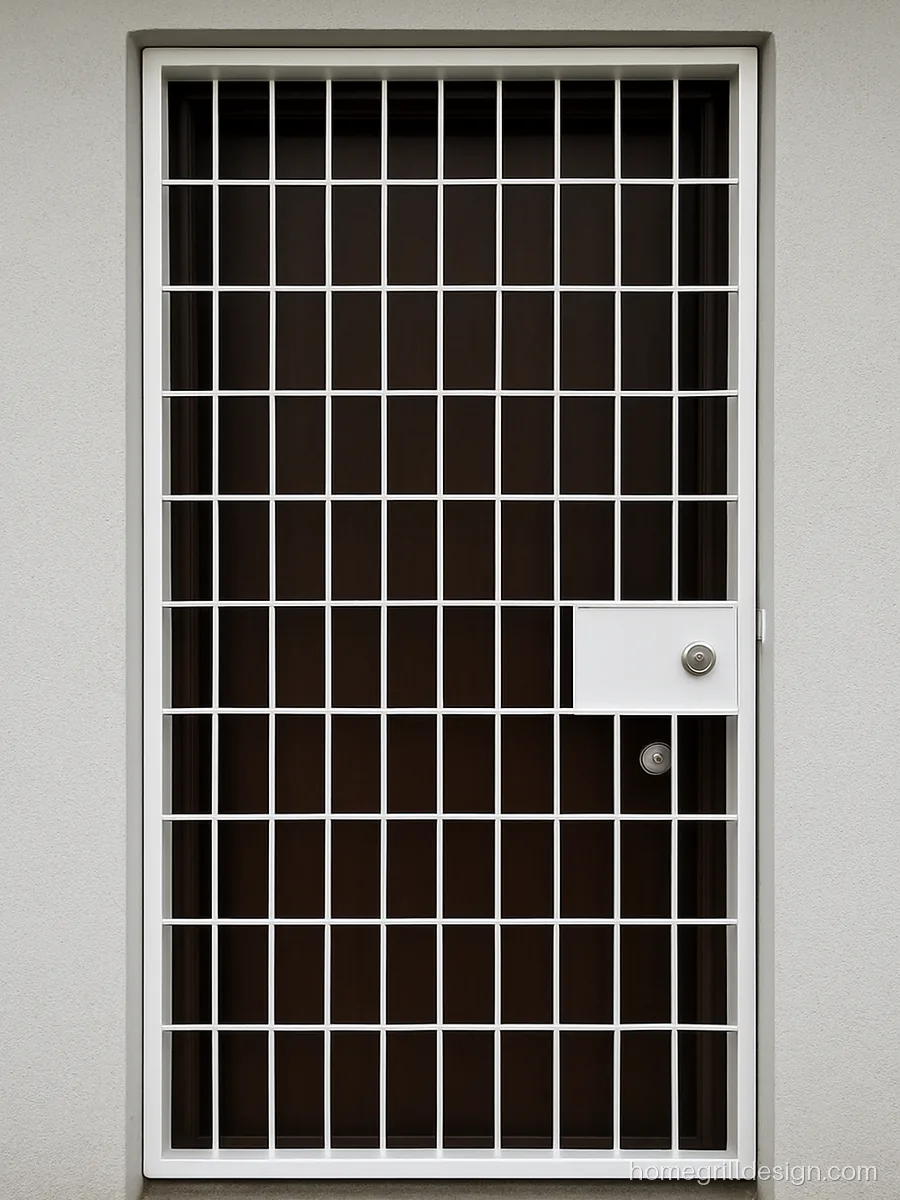

A white box grid looks fresh against grey corridors and lets you speak to visitors without opening up. Small boxes stop anyone reaching in to the latch.
- MaterialMS 10 mm square bar
- StyleSmall box grid
- SuitsModern apartment blocks
Fabricator’s tip Weld a solid plate around the lock area so no one can reach the latch through the boxes.
Double Door Grill Design for House Fronts
Independent houses often have a wide main door with two shutters. A front door grill design in India for such homes should be heavy and open fully when you move furniture.

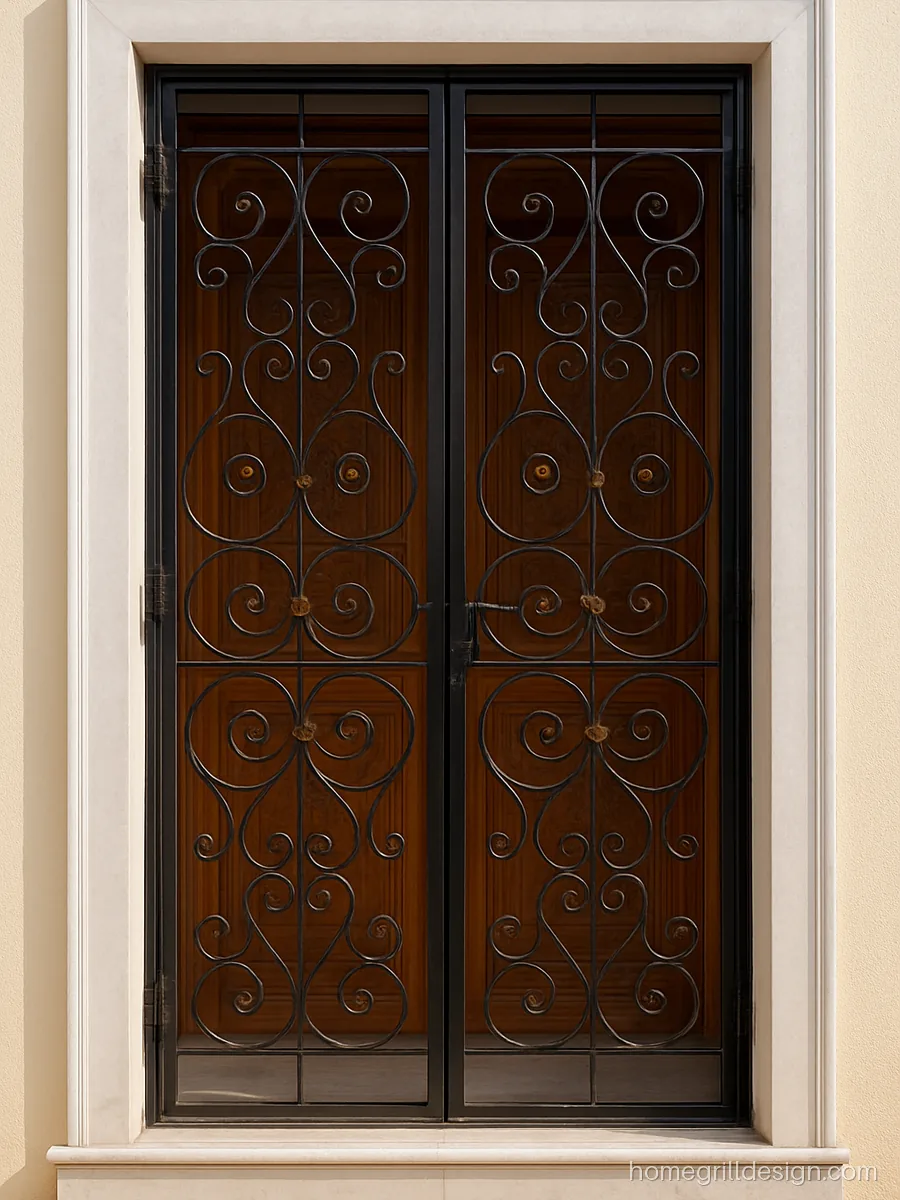

Scroll work gives a classic look that suits arches and pillars. It needs more labour, so it costs more than a straight bar door.
- MaterialMS 20 x 5 mm flat
- StyleScrolls and rosettes
- SuitsBungalow main doors
Fabricator’s tip Fix a tower bolt at top and bottom of the fixed shutter so both doors stay rigid when locked.

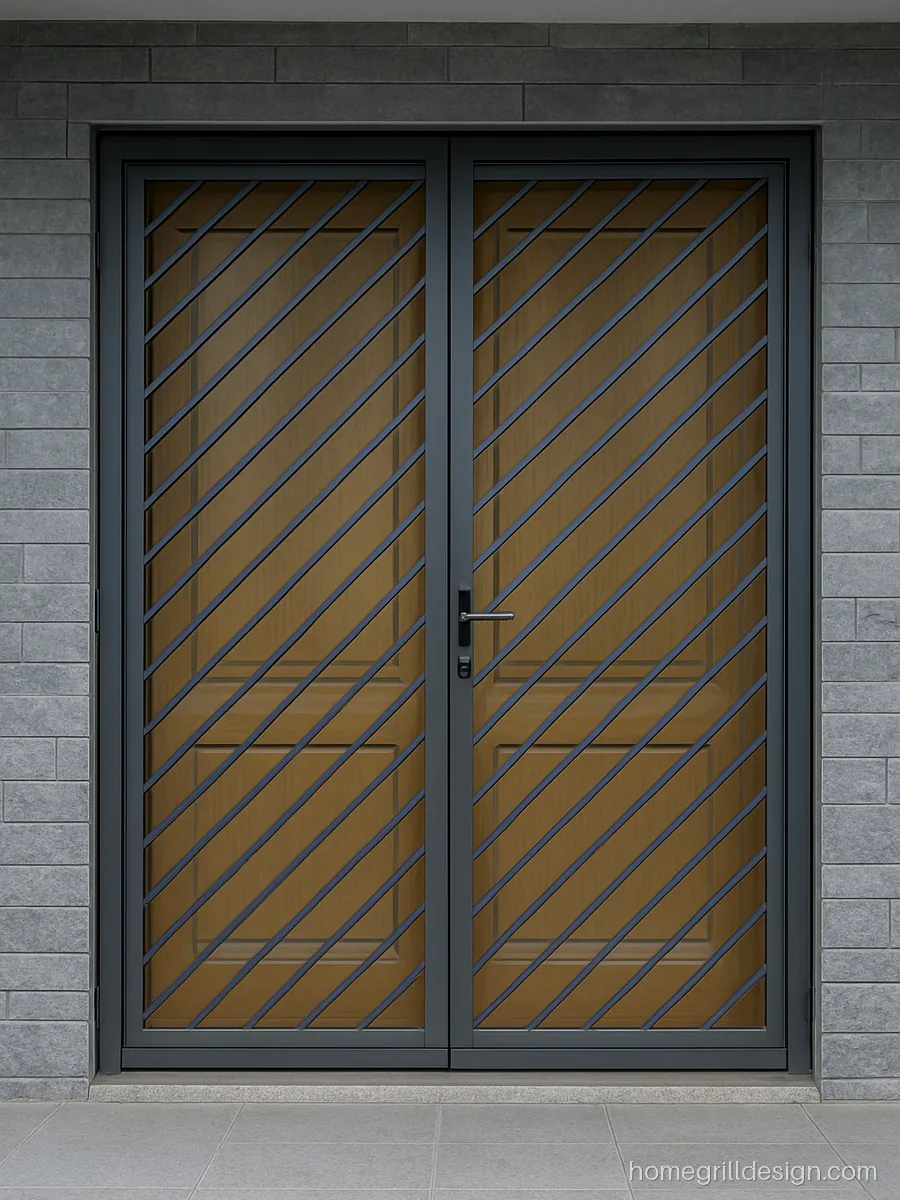

Diagonal strips look modern and are hard to climb. The grey suits stone cladding and modern house fronts.
- MaterialMS 32 x 5 mm flat
- StyleDiagonal strips
- SuitsModern house fronts
Fabricator’s tip Grind every diagonal joint flush; sharp ends at hand height scratch both skin and clothes.

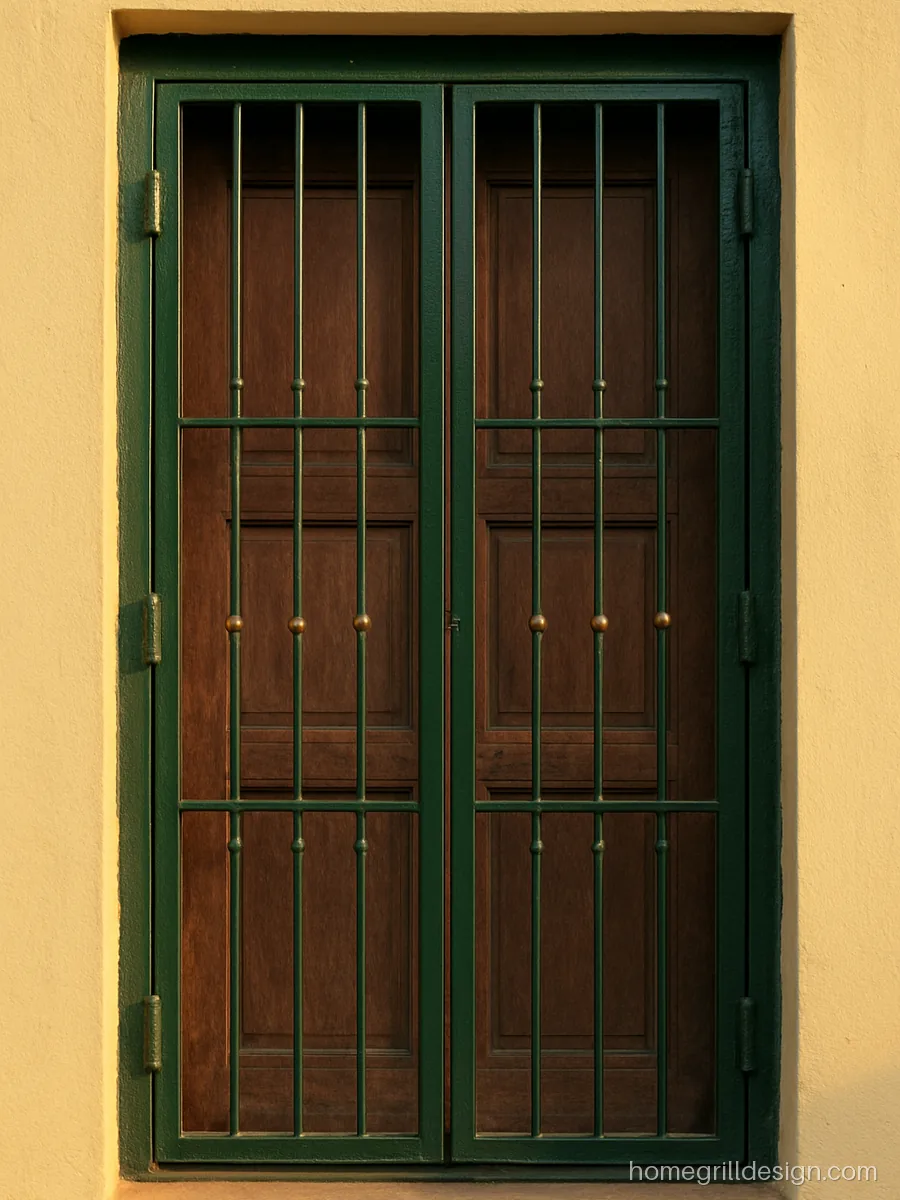

Unequal shutters let you open only the small one each day and both for big items. Dark green suits older homes with wooden frames.
- MaterialMS 14 mm square bar
- StyleUnequal two shutter
- SuitsOlder family homes
Fabricator’s tip Make the small shutter at least 2.5 feet wide so daily use stays easy.
Iron Grill Door Design with Mesh
An iron grill door with mesh lets you keep the main door open all evening without mosquitoes coming in. Fix the mesh on the inside face so it is easy to replace.

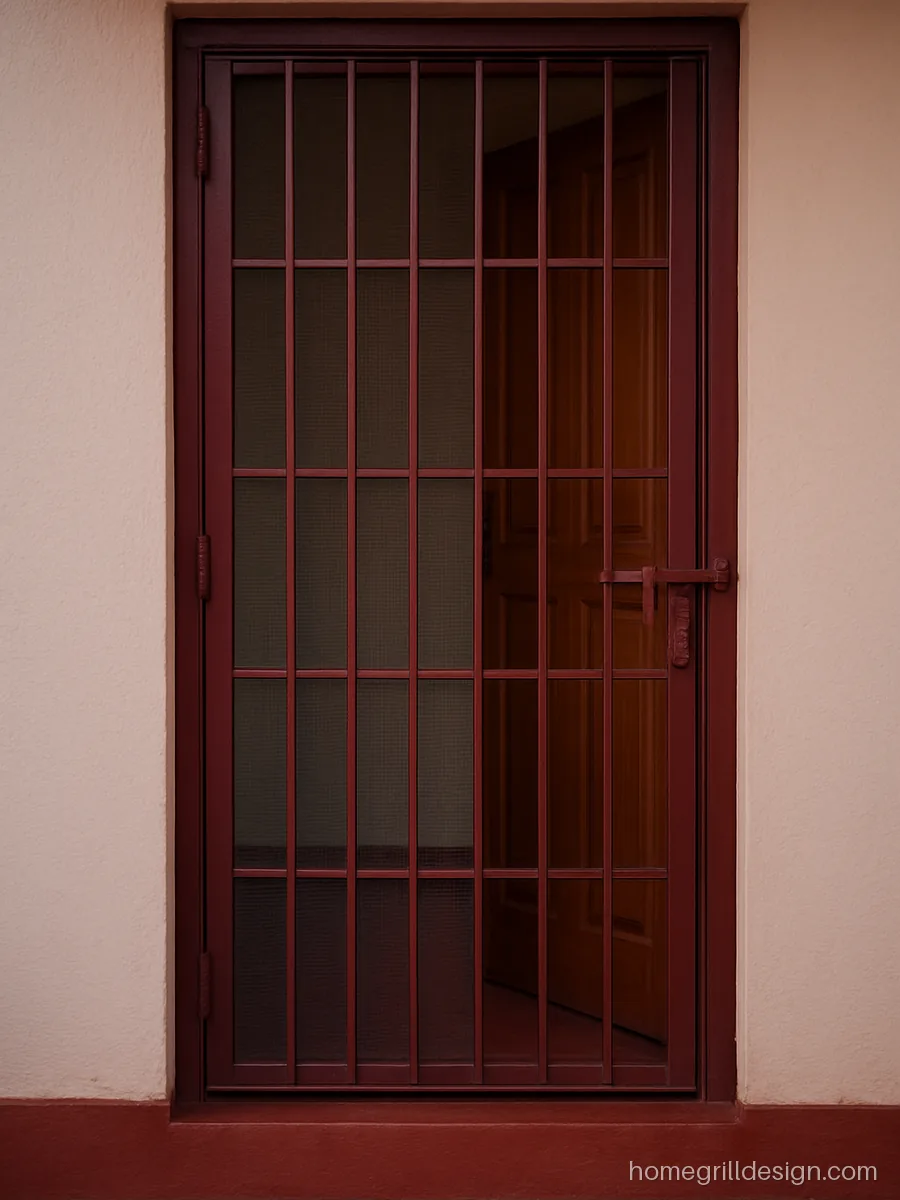

A full height mesh behind bars keeps the room airy at dusk. Maroon hides scuff marks near the floor well.
- MaterialMS 12 mm bar, SS mesh
- StyleBars with full mesh
- SuitsGround floor homes
Fabricator’s tip Use SS 304 mesh, not nylon; nylon mesh tears at the corners within a season.
A single flower panel at eye level breaks a plain door. The ivory colour suits pastel walls in small houses.
- MaterialMS 25 x 5 mm flat
- StyleFlower centre panel
- SuitsSmall independent homes
Fabricator’s tip Fix the mesh with a removable beading strip so it can be changed without cutting welds.

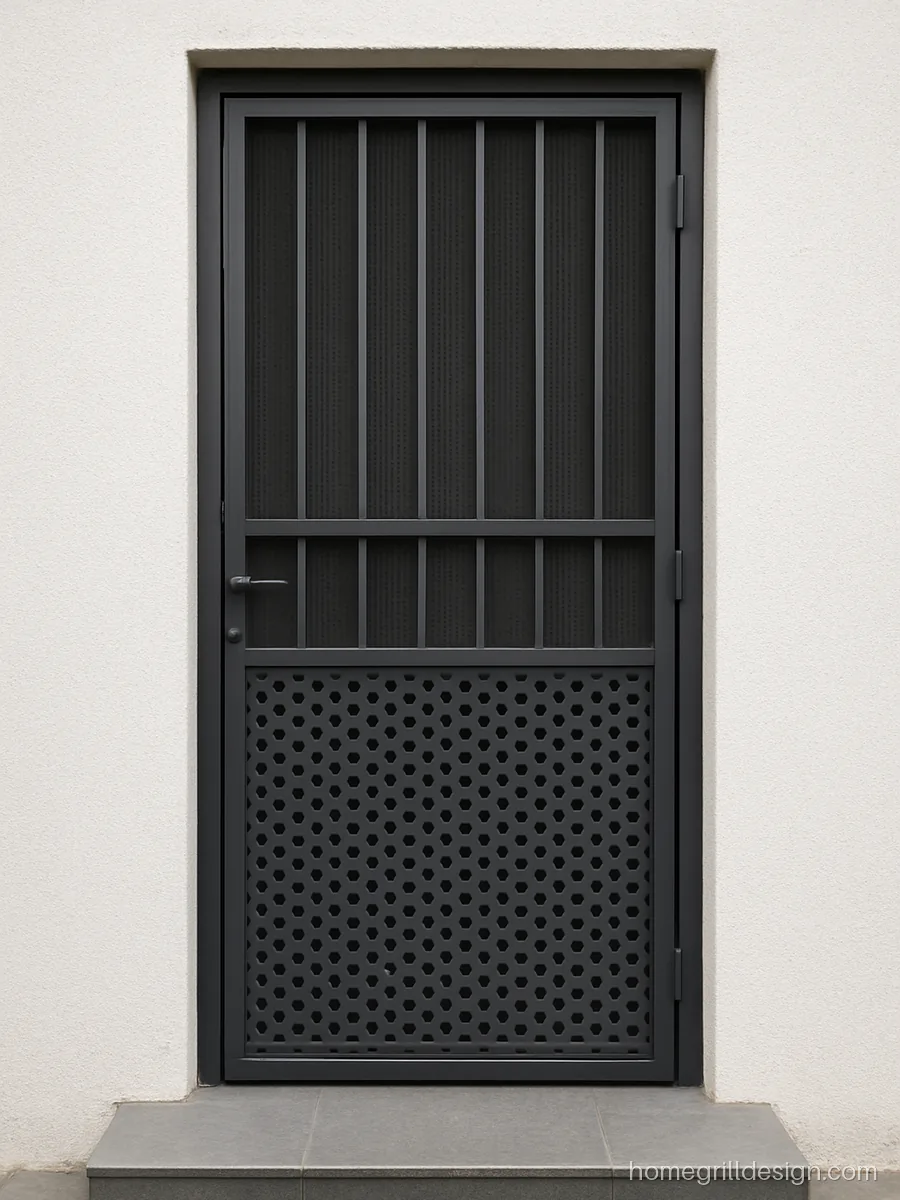

A perforated sheet at the bottom stops stray animals pushing in, while mesh above keeps the breeze. Good for ground floor homes near open plots.
- MaterialMS frame, 1.6 mm sheet
- StylePerforated sheet, mesh
- SuitsGround floor near plots
Fabricator’s tip Give the perforated sheet a zinc primer on both sides before the top coat.
Steel Grill Door Design in Stainless Steel
A stainless steel door grill design needs no paint and stays clean with a damp cloth. Choose grade 304 for coastal cities and humid flats.

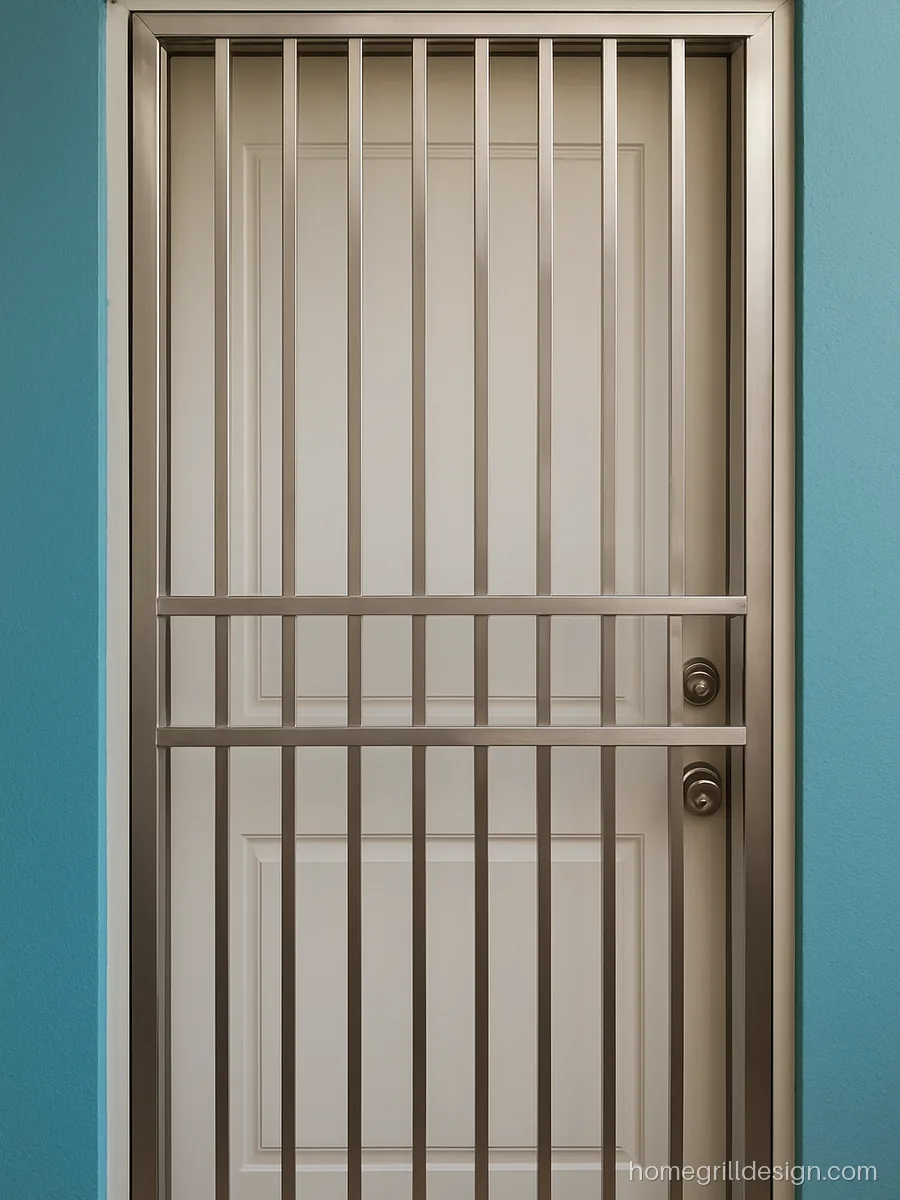

Satin finish hides fingerprints, which matters on a door touched many times a day. SS 304 will not spot rust in sea air.
- MaterialSS 304, 1 inch tube
- StyleSquare tubes, satin
- SuitsCoastal city flats
Fabricator’s tip Use SS bolts and hinges as well; MS hinges rust and stain the steel below.

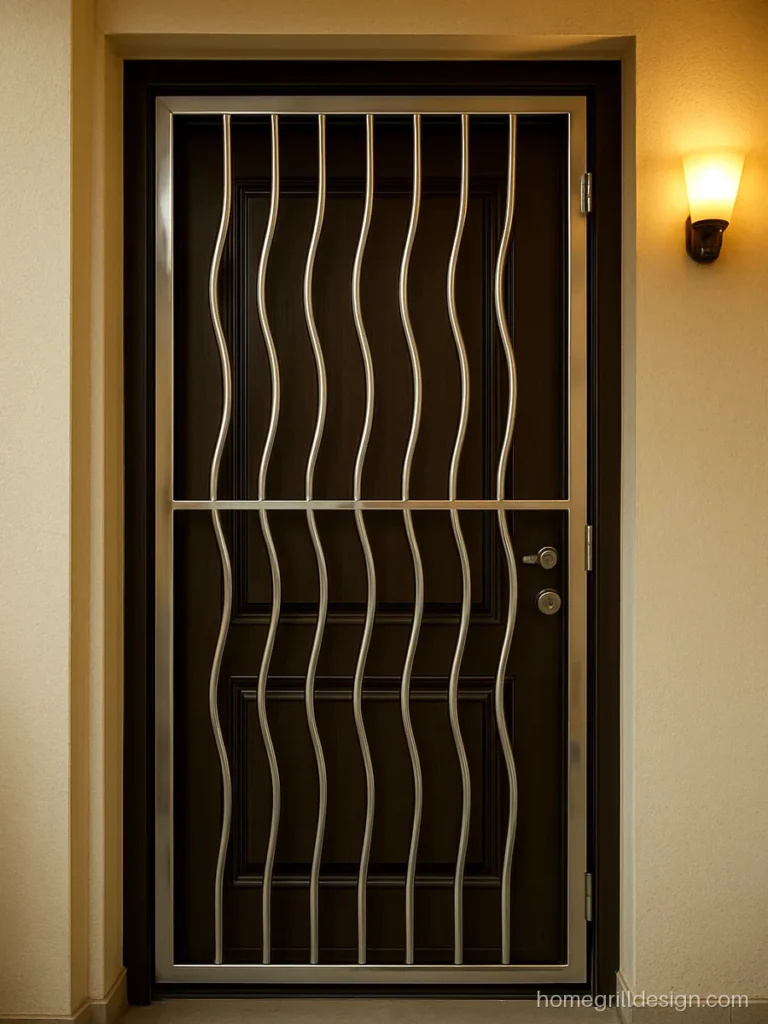

Bent round pipes give a soft wave look that stands out in a lobby. Mirror finish needs regular wiping to stay bright.
- MaterialSS 304, 3/4 inch pipe
- StyleWave bent pipes
- SuitsLobby facing flats
Fabricator’s tip Ask for pipe bending on a machine, not by heat, so the polish does not burn.

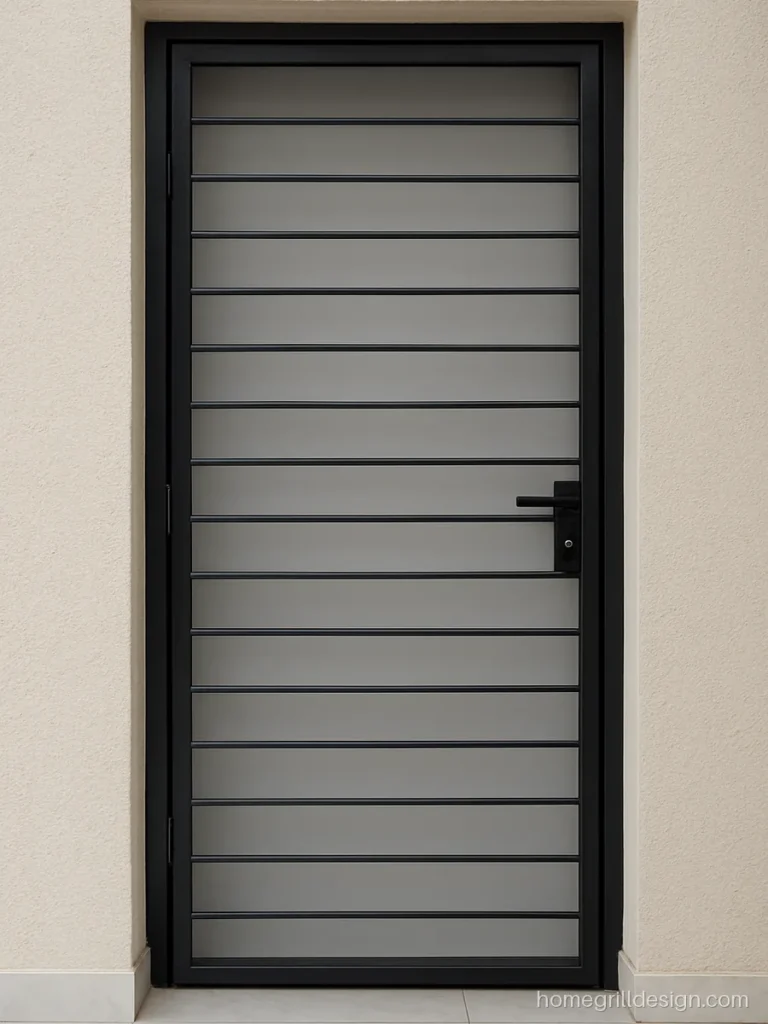

Black coated SS looks premium and needs no repainting. The ladder bars keep the gaps tight for safety.
- MaterialSS 304 black coated
- StyleLadder pattern
- SuitsPremium flats
Fabricator’s tip Black coated SS scratches; keep a soft pad behind the door stopper.
Sliding Grill Door and Folding Grill Door Design
Where there is no room for a door to swing, a sliding or folding grill is the answer. These also suit balcony and terrace doors.

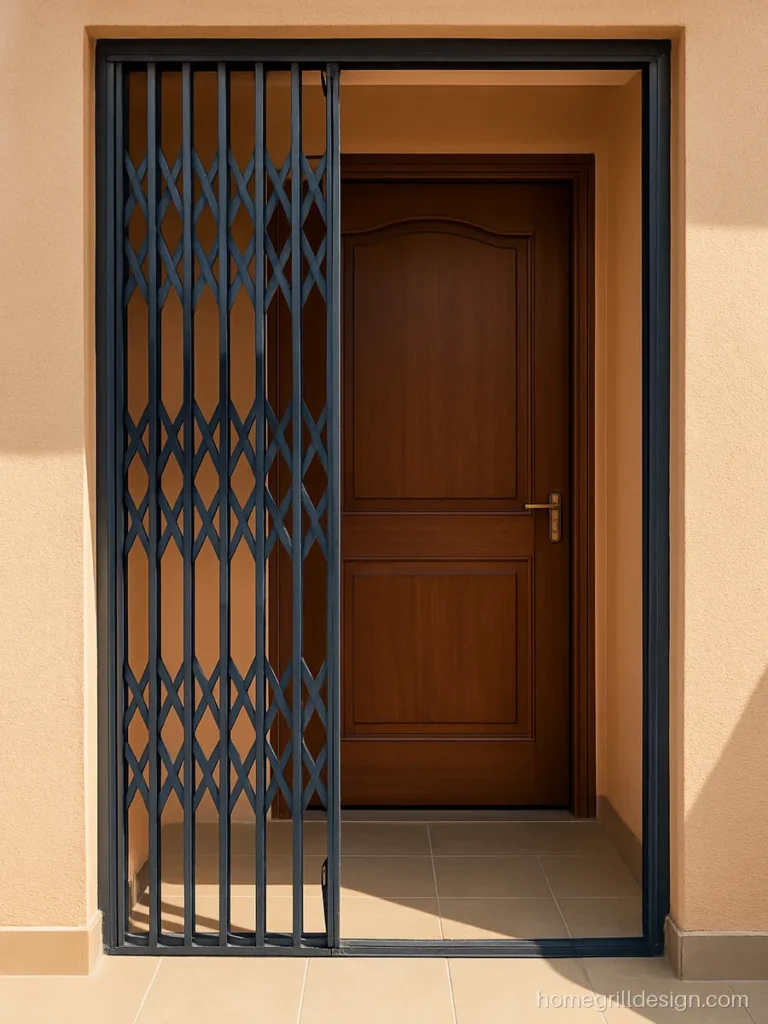

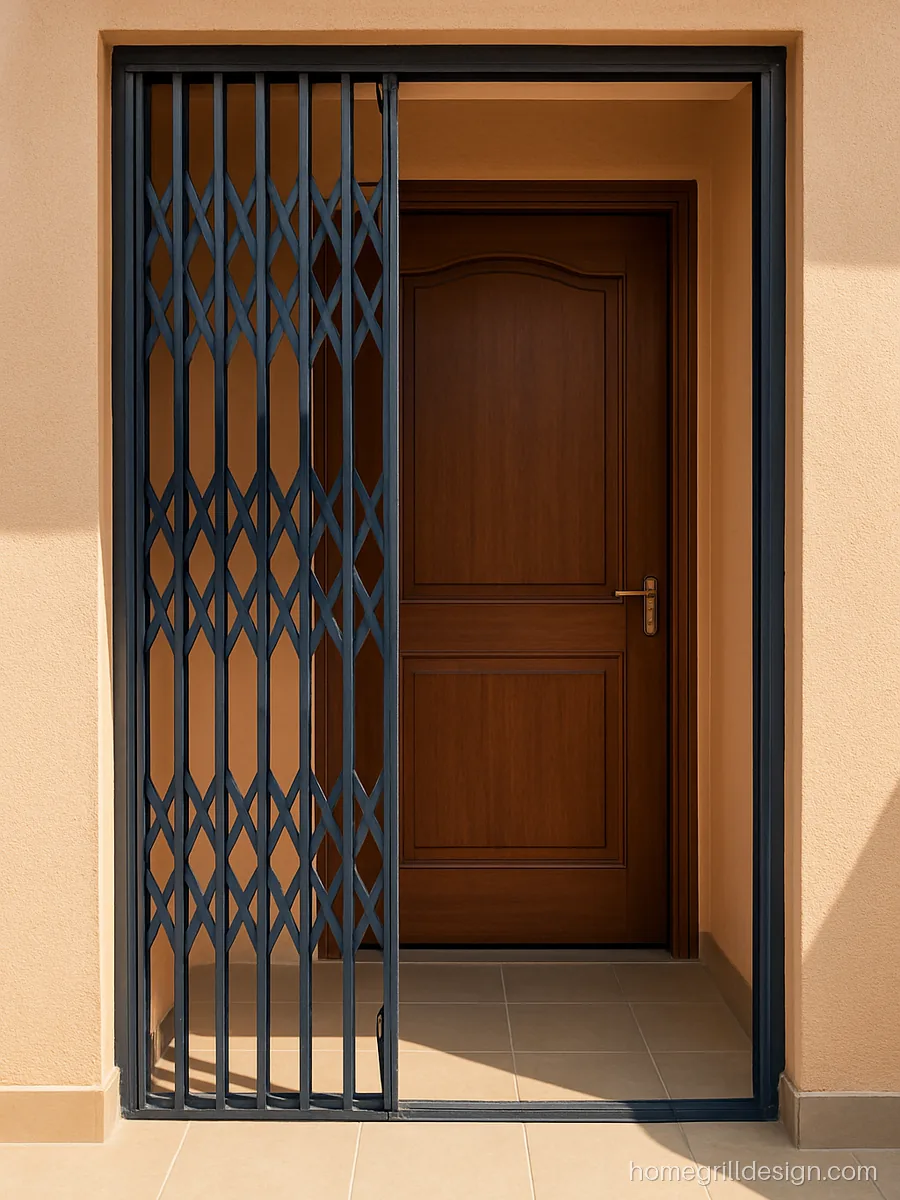

A collapsible folding door packs to one side and opens the full width. It suits shop style fronts and wide sit out openings.
- MaterialMS pipe and channel
- StyleCollapsible folding
- SuitsWide openings
Fabricator’s tip Oil the top and bottom channels every few months so the rollers do not jam with dust.

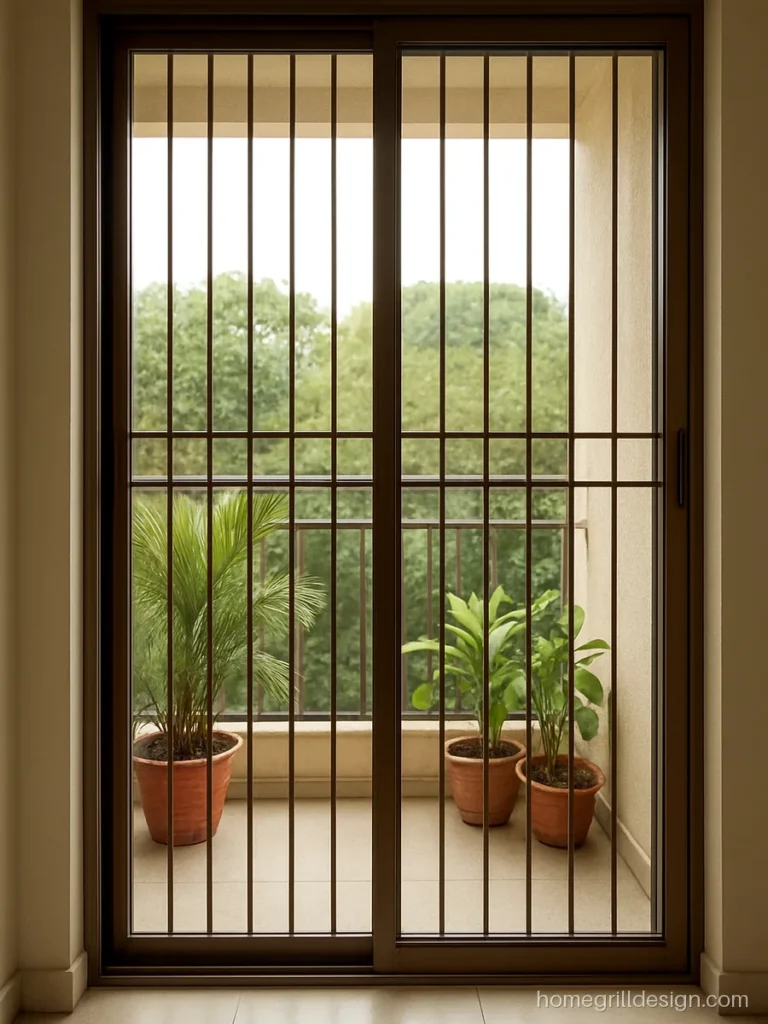

A sliding grill door in aluminium suits upper floor balconies where weight matters. Pair it with a mesh shutter for evenings.
- MaterialAluminium section
- StyleSliding with mesh
- SuitsUpper floor balconies
Fabricator’s tip Aluminium is weaker than steel; add a steel lock bar if the balcony faces open ground.

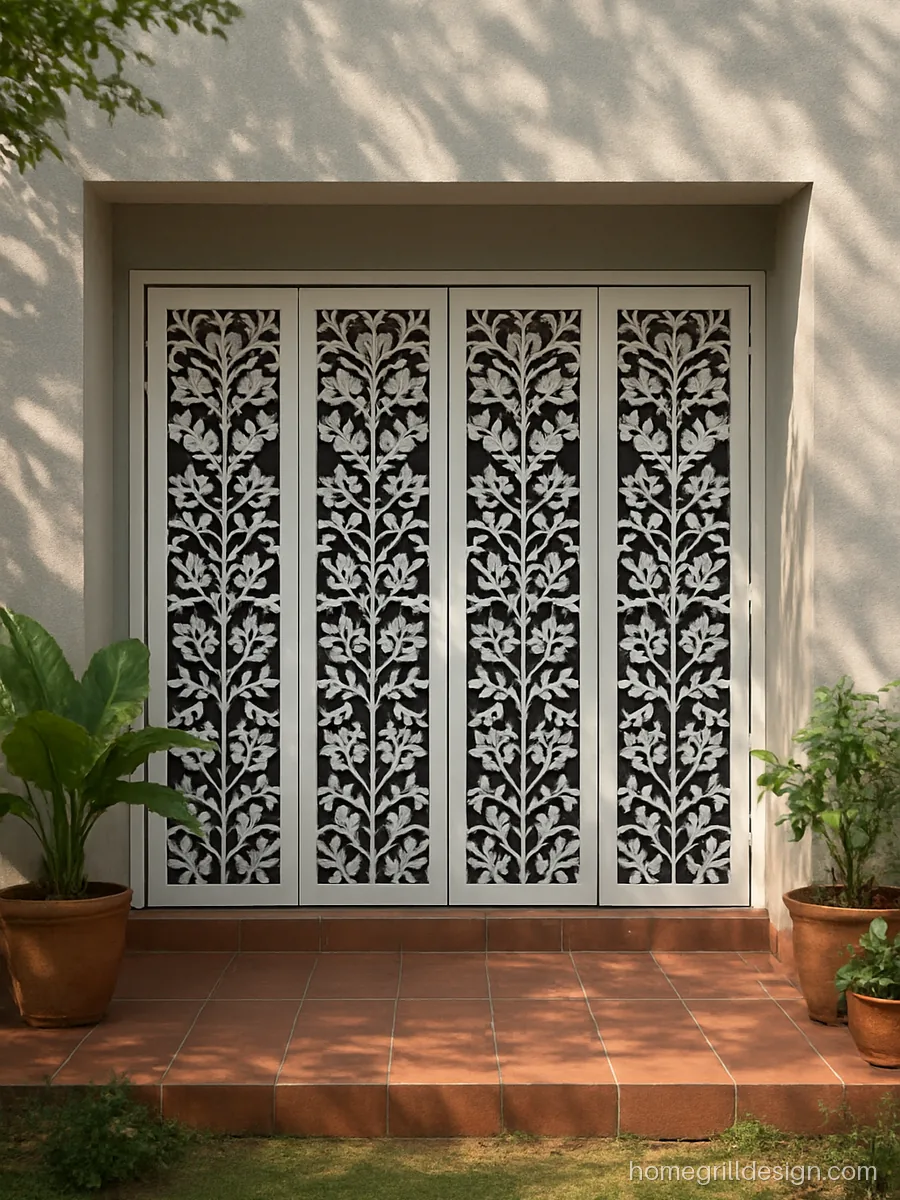

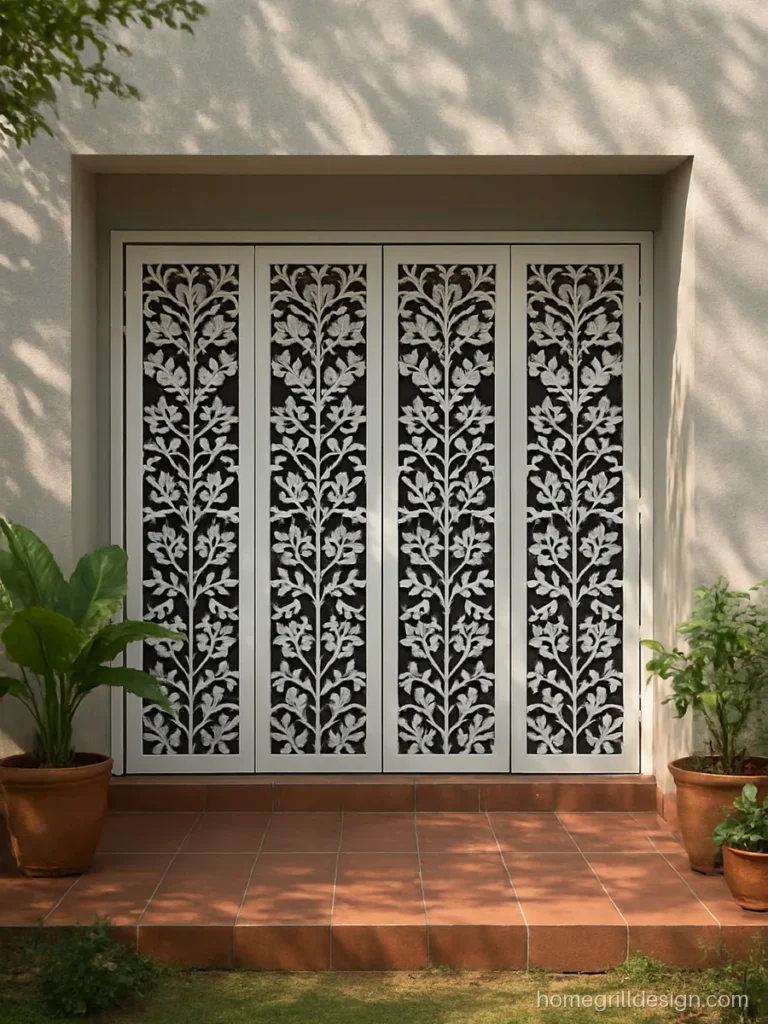

A two leaf bi-fold door opens wide without needing much swing space. The floral panels add privacy from the road.
- MaterialMS 2 mm laser cut
- StyleBi-fold floral panel
- SuitsSit out entries
Fabricator’s tip Fit a floor guide pin so the folded leaves do not swing in strong wind.
Modern Safety Door Grill Design with Laser Cut Panels
Laser cut sheets give clean, repeatable patterns that a welder cannot make by hand. Powder coating protects them better than brush paint.

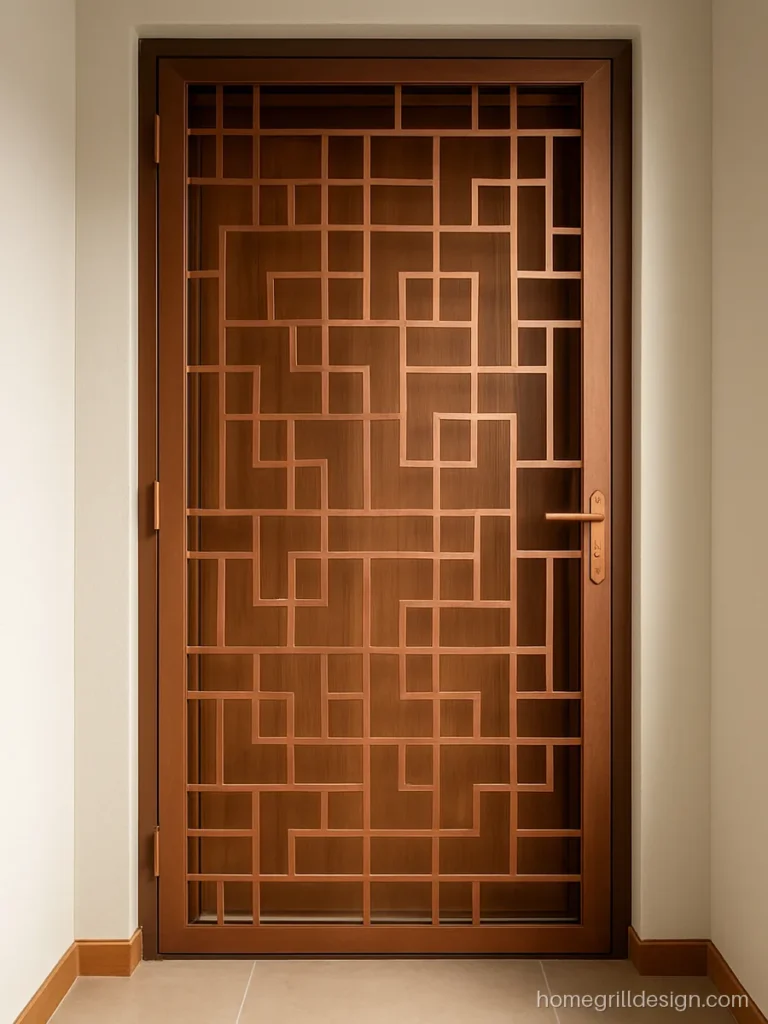

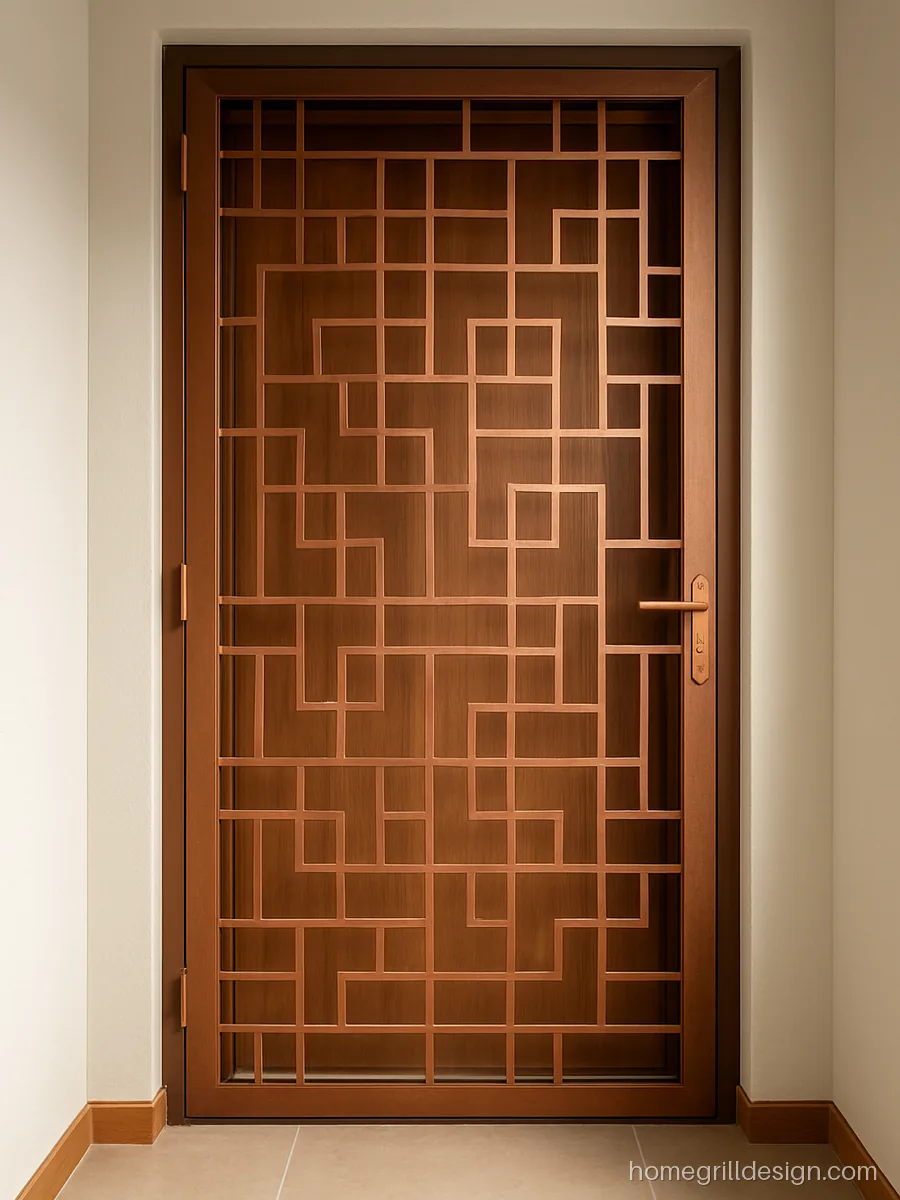

A geometric cut sheet in copper colour looks smart beside wood. It also blocks a direct view into the hall.
- MaterialMS 3 mm laser cut
- StyleGeometric cut sheet
- SuitsFlats with open halls
Fabricator’s tip Have the sheet edges deburred before powder coating so paint does not peel at sharp edges.

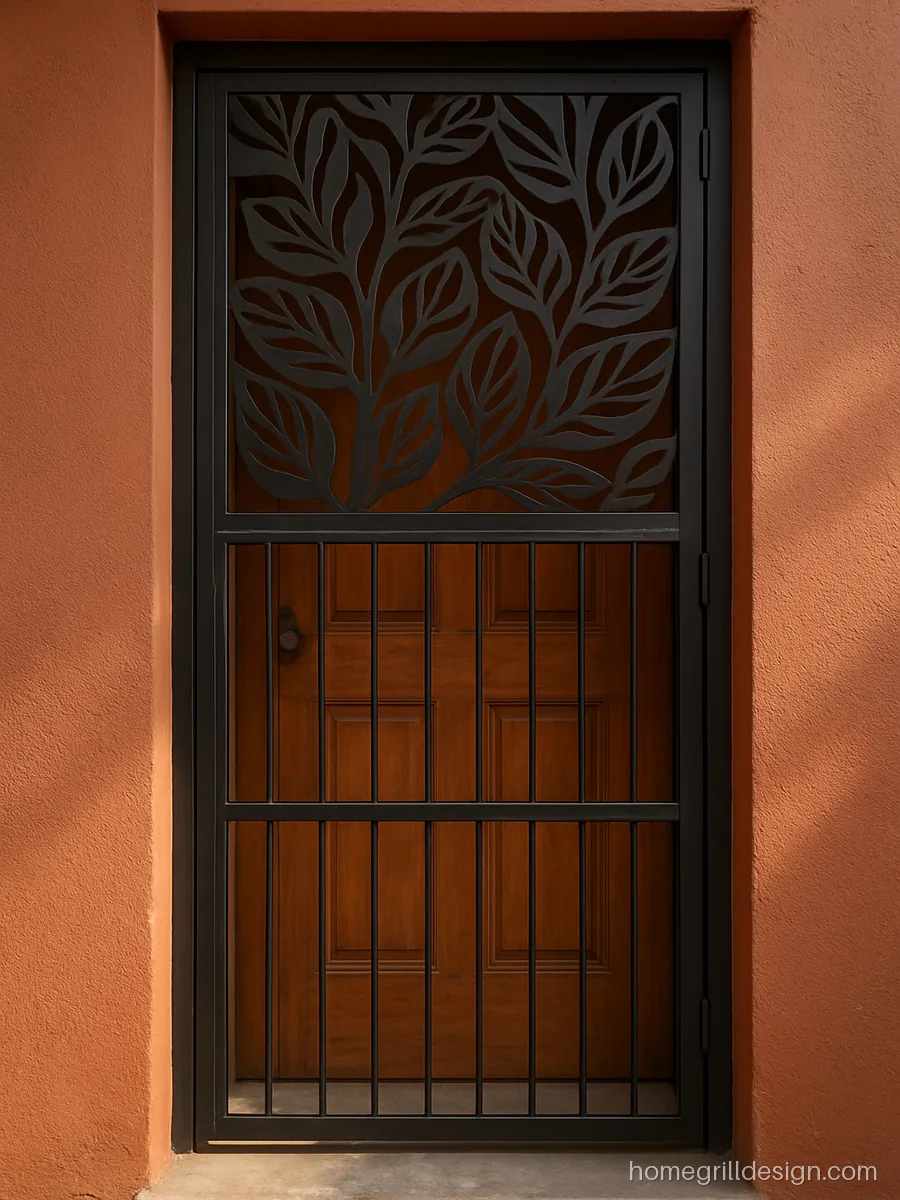

A cut panel only on the top half keeps cost down and leaves the lower part plain bars. Matt black suits most wall colours.
- MaterialMS 2 mm sheet, 12 mm bar
- StyleLeaf panel with bars
- SuitsIndependent house fronts
Fabricator’s tip Leave the lower bars at 90 mm gaps; children often push their heads through door grills.

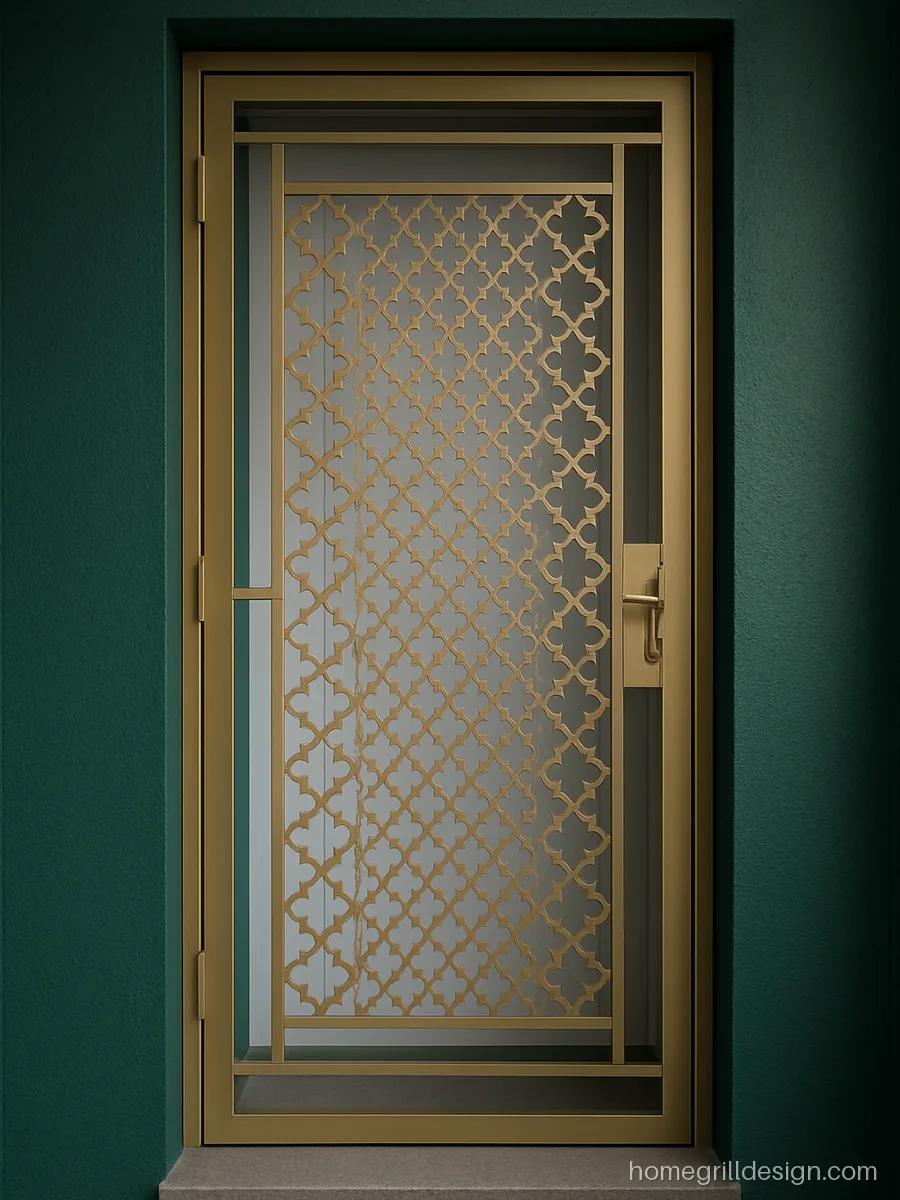

A jali cut in coloured stainless steel gives a modern look with no repainting. It costs more because of SS grade and laser work.
- MaterialSS 304 coloured sheet
- StyleJali laser cut
- SuitsPremium apartments
Fabricator’s tip Wipe with mild soap only; harsh cleaners strip coloured SS coatings.
How to Choose a Grill Door for Your Main Door
- Flats: single shutter, solid plate around the lock, mesh for evenings. Check society rules.
- Houses: double door or unequal shutters in MS 14 to 16 mm bar for strength.
- Near the sea: SS 304, or MS with zinc primer and PU paint.
- Kids at home: gaps under 100 mm, no low horizontal bars to climb.
- Cost: rises with steel weight, SS grade, laser cutting, scroll work and powder coating.
You can repeat the door pattern on a simple window grill design for a matched front.
Fitting and Care
The grill door frame should sit on its own angle or channel frame fixed with holdfasts into the wall, or anchor bolts on a finished wall. Use at least three hinges and a lock that can be opened quickly from inside in an emergency. Repaint MS doors every 2 to 3 years. For colours that suit wooden doors, see grill colour design.
Grill design questions
Which is better for a grill door for main door use, MS or SS?
MS is stronger for the money and takes any pattern, but needs paint. SS 304 needs no paint and suits coastal flats. SS 202 is cheaper but may spot rust in humid places.
Can I fit an iron grill door with mesh in a flat?
Yes. Fix SS mesh on the inner face with a beading strip. It lets you keep the main door open for air without mosquitoes.
Is a sliding grill door safe for a main door?
It is fine if the track is heavy and the lock bolts into the wall frame. For ground floor homes, a hinged steel grill door is usually stronger.
What is a good simple door grill design on a small budget?
Vertical MS square bars with one mid rail and a lock plate. It uses little steel and few joints, and it is easy to paint and clean.
How wide should a double door grill design be?
It should match the wooden door opening, usually 4 to 5 feet for two shutters. Unequal shutters work well if you open only one most days.
What door grill colour combination suits a wooden main door?
Black, wood tone or dark bronze grills suit most wooden doors. White or ivory suits light laminate doors and pastel walls.
