Balcony Grill Design Ideas for Indian Flats and Houses

18 designs Balcony grills and railings Updated 8 Oct 2026

A good balcony grill design keeps out thieves, pigeons and falls, but still lets in breeze and light. In a flat, the balcony is often the only open space, so the grill decides how much of the sky you still see.

Below are 18 designs that suit Indian homes: full cover grills for flats, half height grills, SS grills, box patterns, safety grills for kids and grills that hold glass. Under every photo you will find the steel section used and a fitting tip for your grill wala.

If you only need the waist-high railing, see our balcony railing design page. For the look of the whole balcony from the road, see balcony design.

Modern Grill Design for Balcony Full Cover

Full cover grills close the balcony from floor to slab. They suit flats on any floor, homes with small kids, and areas with monkeys or pigeons.

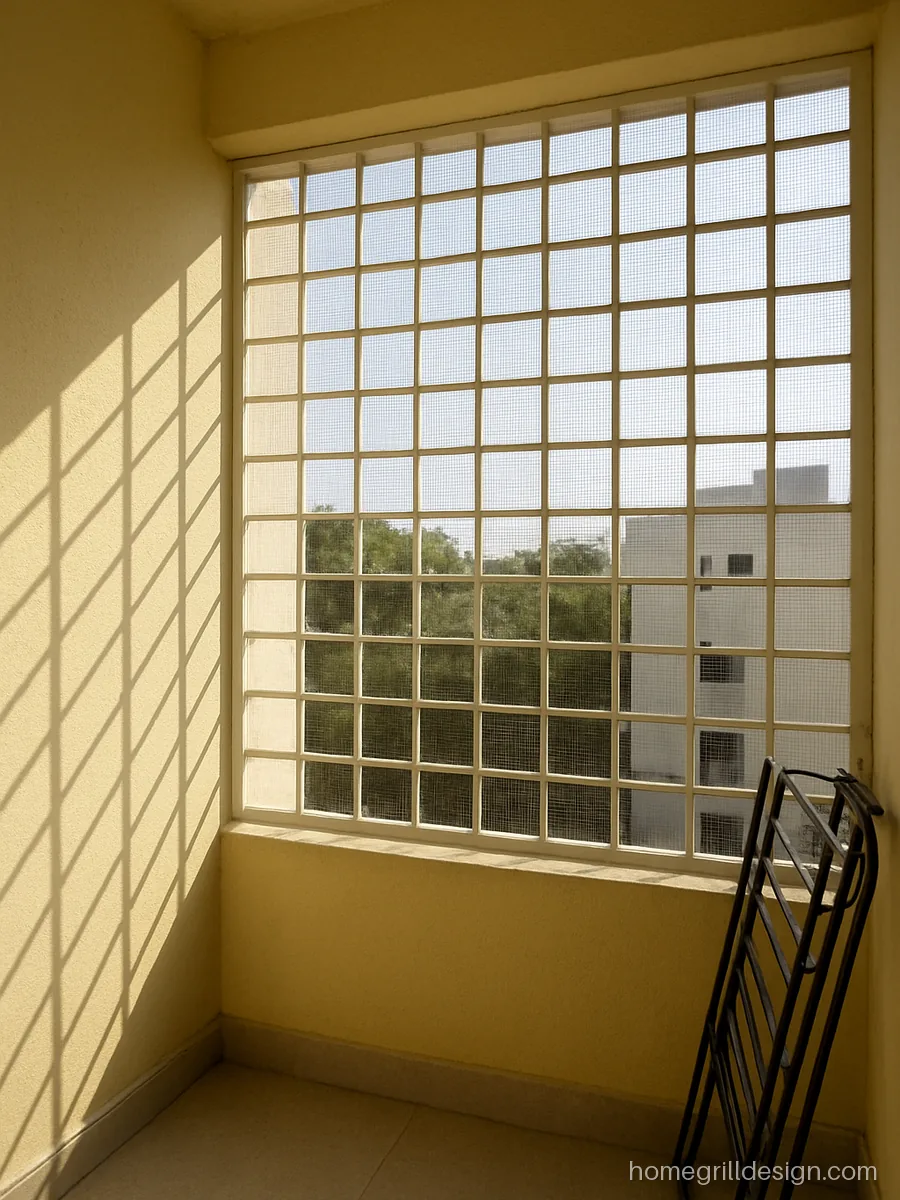

Full cover balcony grill in white square grid with pigeon mesh behind — A white grid with fine SS mesh behind keeps pigeons out without making the balcony dark. White also hides dust better than black on a sunny side.
*Material*MS 12 mm square bar
*Style*6 inch square grid
*Suits*Pigeon prone flats
**Fabricator’s tip** Fix the mesh with SS screws on a flat frame, not tack welds, so it can be removed for cleaning.

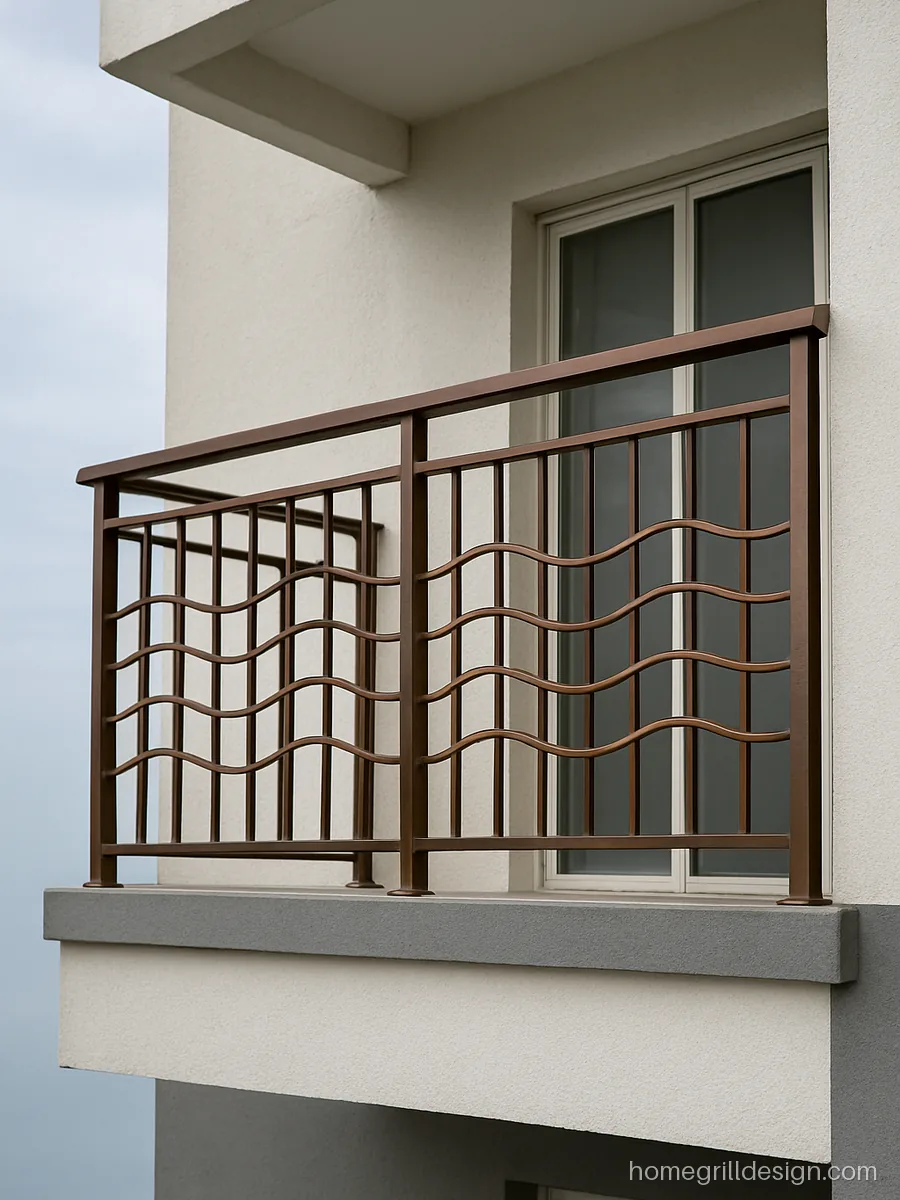

Modern full cover balcony grill with wave pattern in bronze powder coat — Wavy horizontal strips inside vertical posts give movement to a plain front. The bronze powder coat hides city dust and still looks fresh after years.
*Material*MS 30 x 5 mm flat
*Style*Wave strips in frame
*Suits*High rise flats
**Fabricator’s tip** Shape all wave strips on one fixed jig for matching panels, then powder coat after all welding is done.

Simple Grill Design for Balcony

Plain bars cost less, weld fast and are easy to repaint. Most homes in smaller towns still pick a simple iron grill.

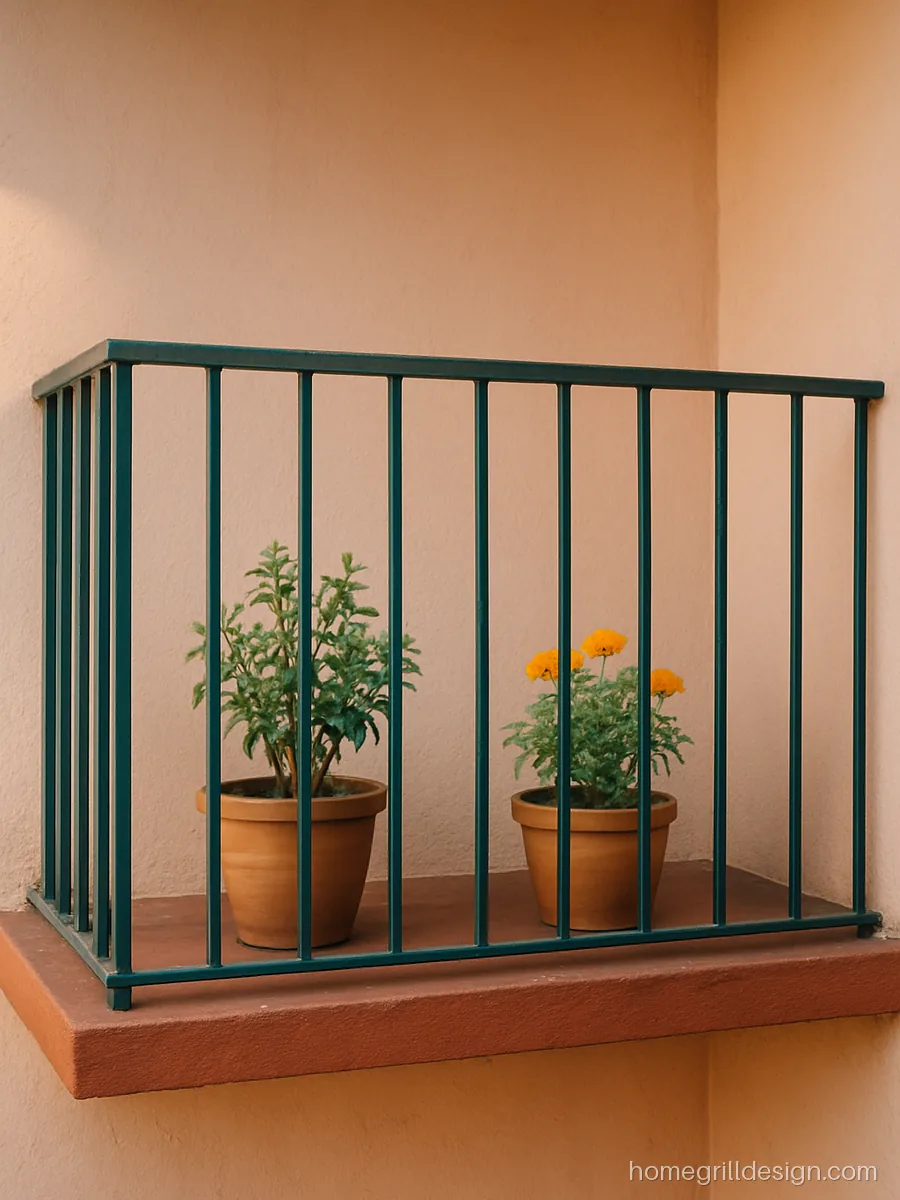

Simple iron grill design for balcony with plain vertical bars in green — Straight vertical bars at 4 inch gaps with one top and one bottom rail. Nothing to catch dust, and any welder can make it in a day.
*Material*MS 12 mm square bar
*Style*Plain vertical bars
*Suits*Budget homes, any floor
**Fabricator’s tip** Use red oxide primer on every weld before the green enamel, or rust will show at the joints first.

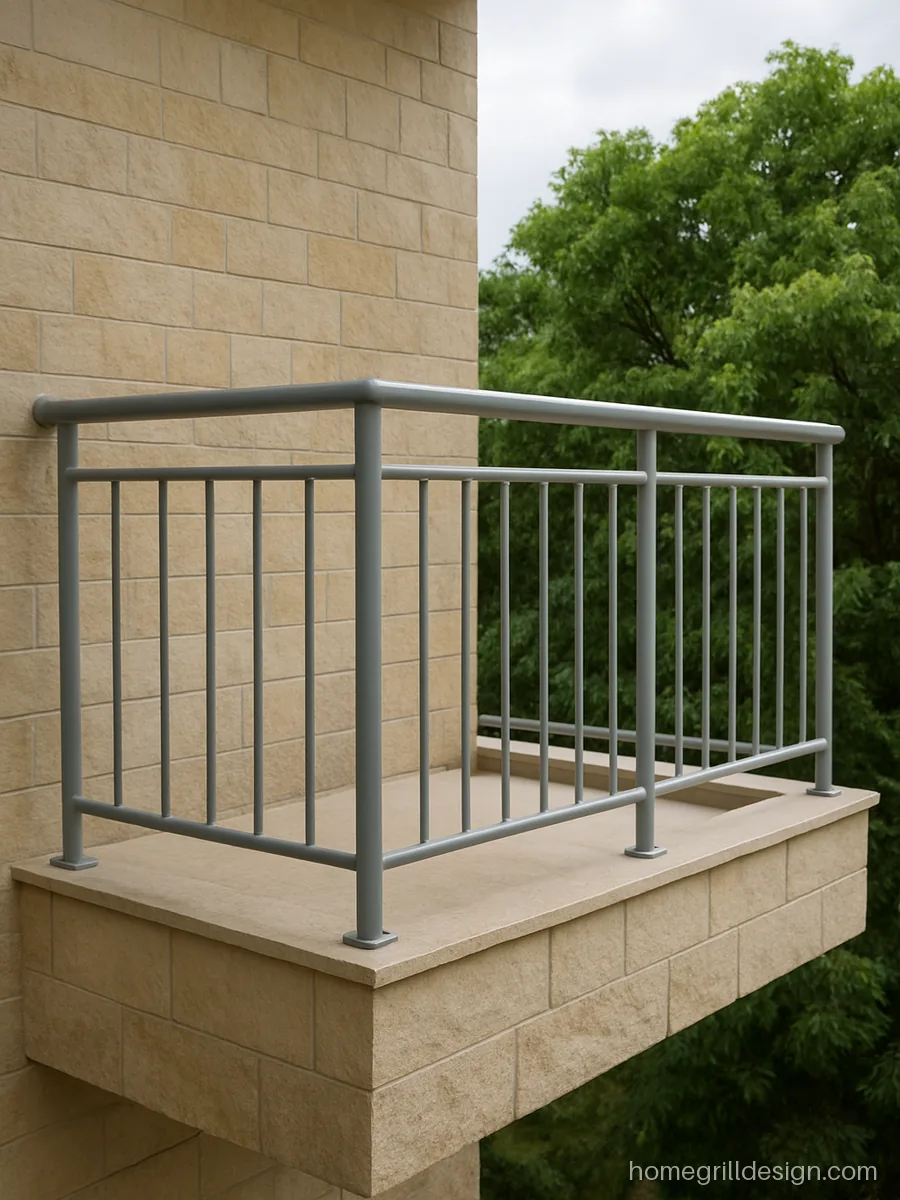

Half height balcony grill in grey MS pipe on an independent house — A waist-high pipe grill with two mid rails between posts, leaving the top open for breeze. Fine where security is not a worry.
*Material*MS 1 inch pipe
*Style*Half height pipe
*Suits*Upper floor houses
**Fabricator’s tip** Cap every open pipe end with a welded plate so rainwater does not sit inside and rust it.

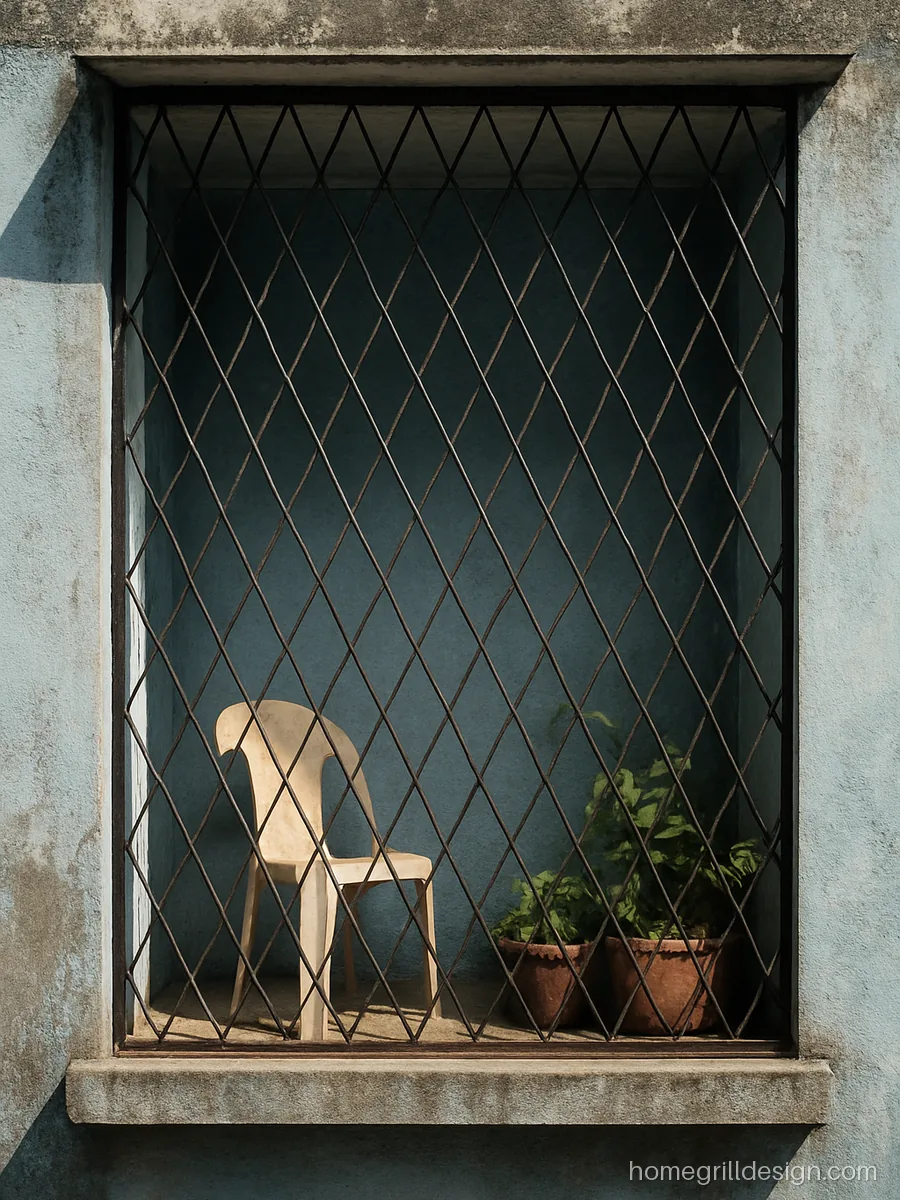

Simple grill design for balcony with diamond pattern in black on old flat — Square bars set at 45 degrees make a classic diamond. It looks neat on older flats and needs fewer welds than scroll work.
*Material*MS 10 mm square bar
*Style*Diamond lattice
*Suits*Old society flats
**Fabricator’s tip** Ask for every crossing to be welded on both sides, not just tacked, so the diamond does not rattle.

Steel Grill Design for Balcony

Pick a balcony grill design steel version if you hate repainting. A stainless steel grill needs no paint and stays bright for years. Choose SS 304 near the sea and in humid towns.

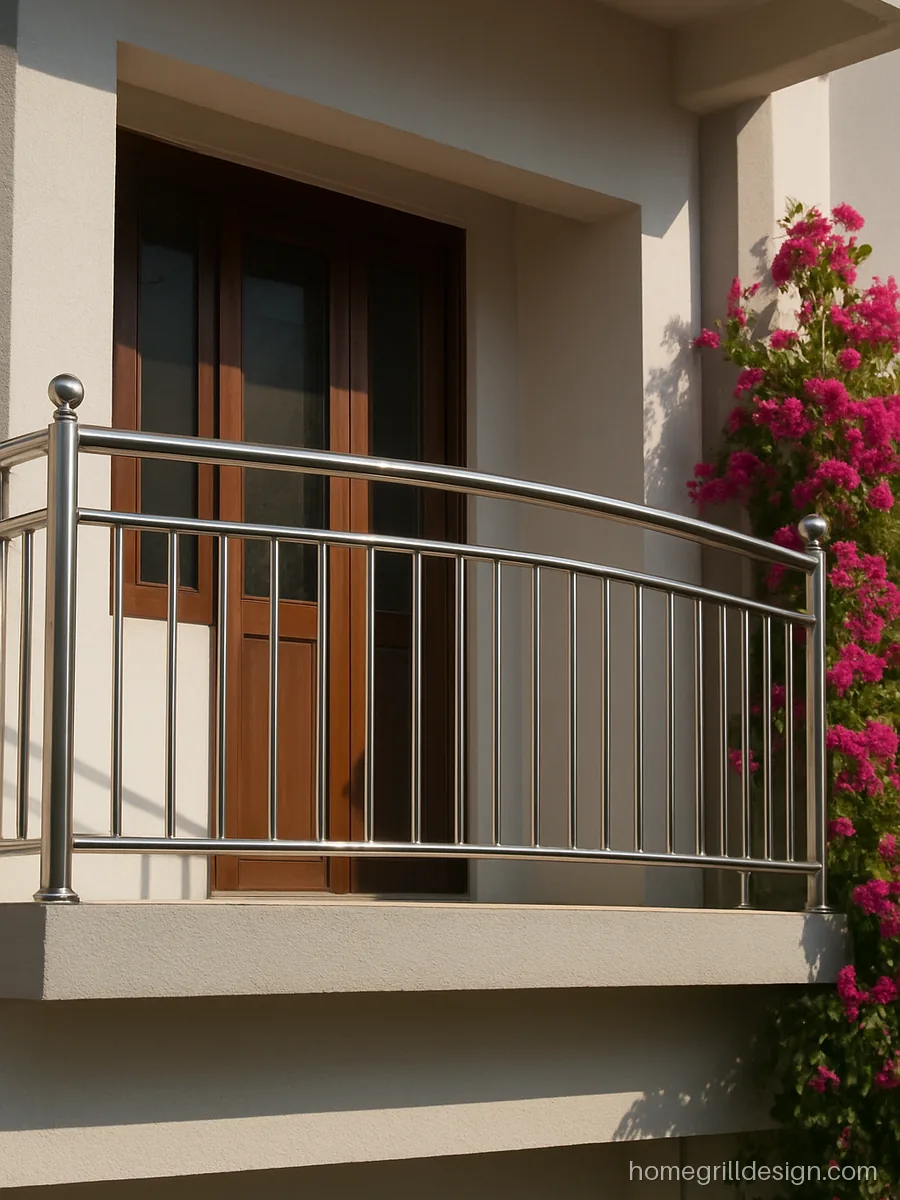

Front balcony steel grill design with mirror SS and curved top rail — A curved top rail and mirror finish give the front of the house a clean modern face. Looks best on a light wall with good morning sun.
*Material*SS 202, 1.5 inch pipe
*Style*Curved top, vertical
*Suits*Front of house
**Fabricator’s tip** Mirror SS 202 suits dry inland towns; wipe it monthly so dust does not leave dull patches.

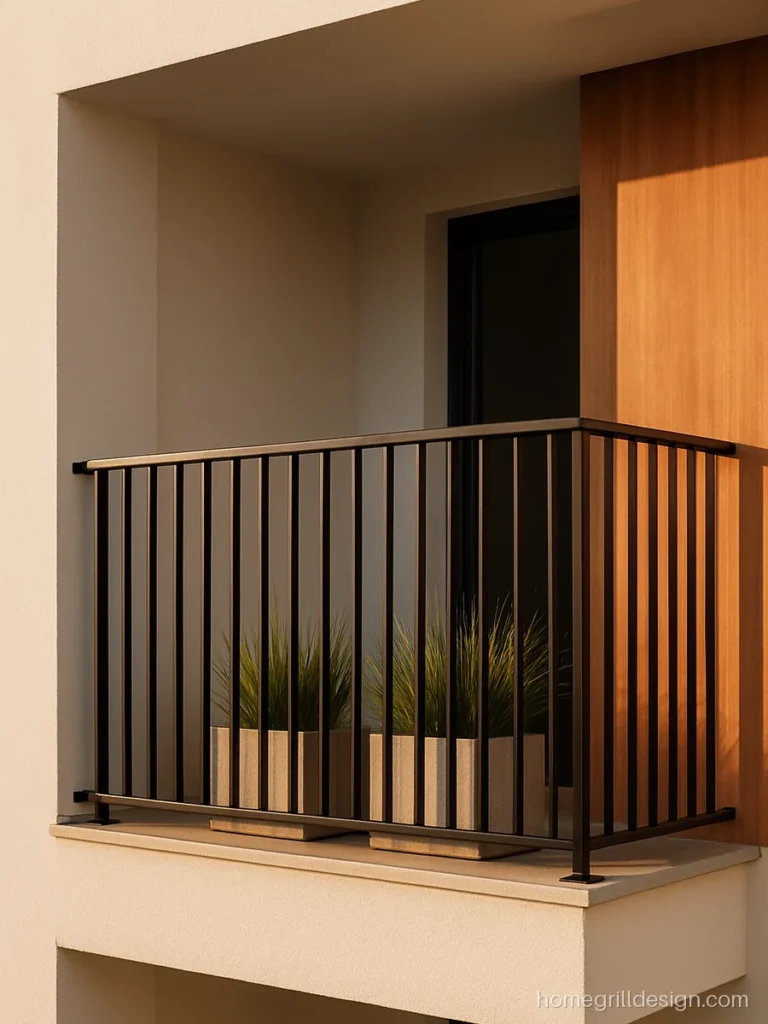

SS grill design for balcony in square tubes with black finish — Square SS tubes in a black coating look like painted steel but will not rust. A strong pick for modern grey or white elevations.
*Material*SS square tube 1 inch
*Style*Square tube verticals
*Suits*Modern elevations
**Fabricator’s tip** Black coating can chip on sharp edges, so ask for rounded tube corners and handle panels with care.

Box Grill Design for Balcony

A box grill projects outward past the wall line. It adds a little space for pots and drying clothes in a small flat.

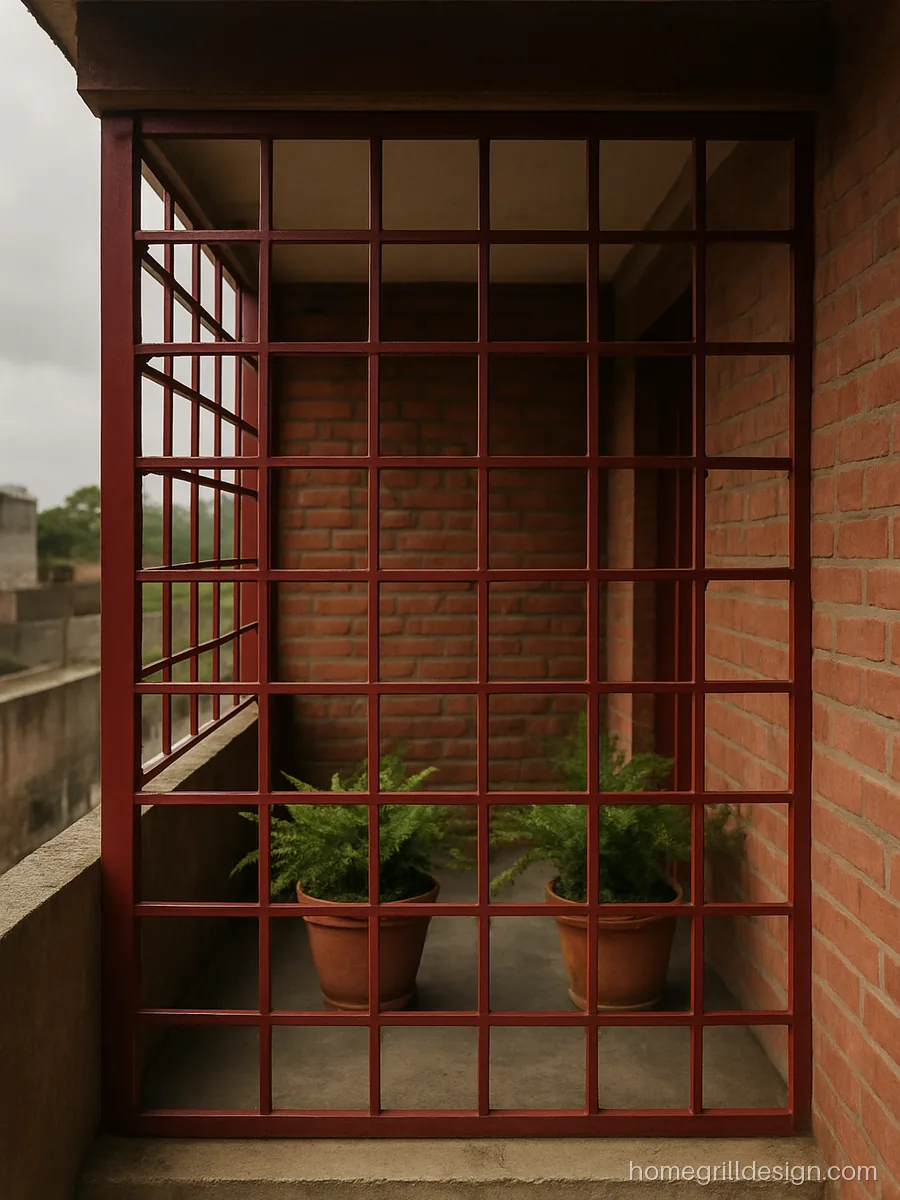

Box grill for balcony made of square pipes in maroon with large grid — Square pipes form a strong box with a large 8 inch grid. Maroon goes well with brick or terracotta walls on independent houses.
*Material*MS 1 inch square tube
*Style*Square pipe box grid
*Suits*Independent houses
**Fabricator’s tip** Square tubes need drain holes at the bottom of each frame so water does not collect inside.

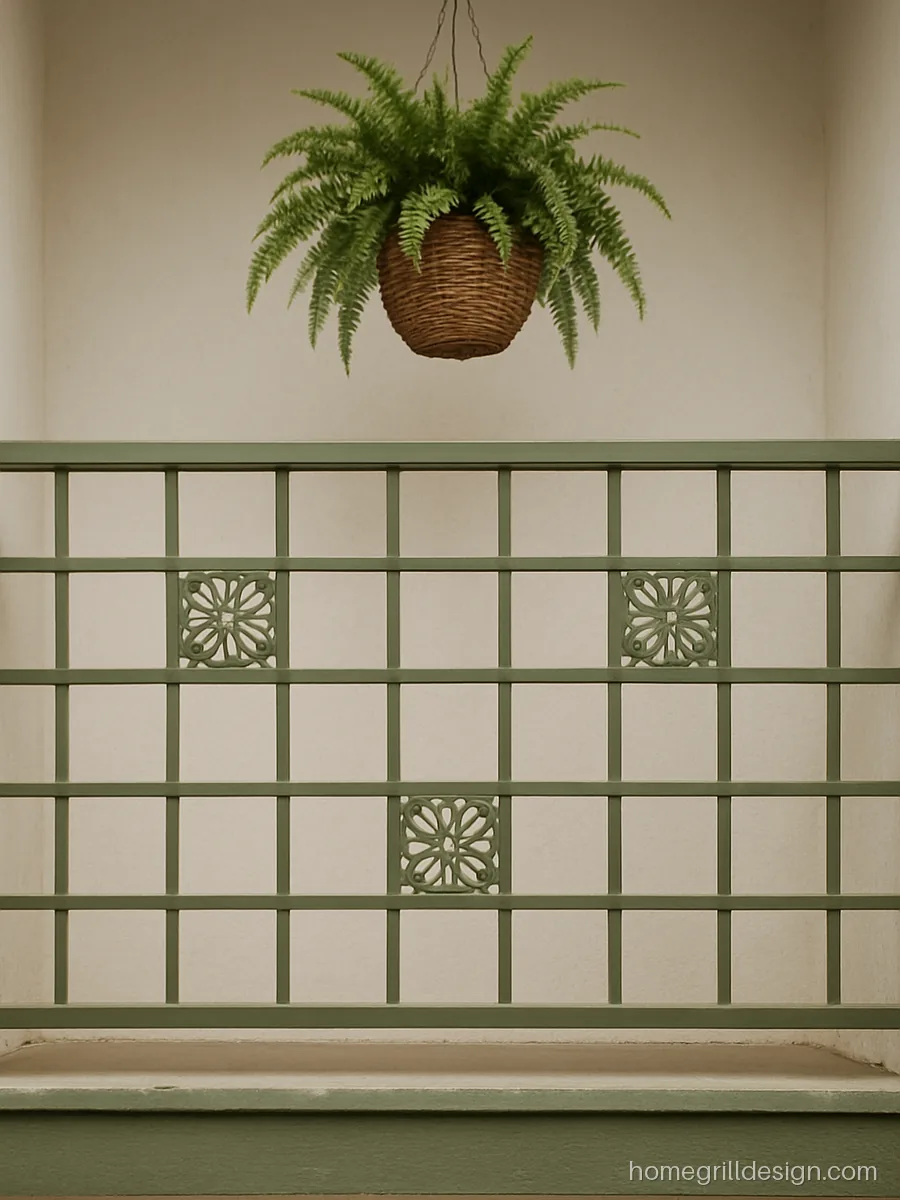

Box grill design for balcony with small flower motifs in olive green — Small laser cut flowers sit at the centre of each box. It softens a plain grid without the weight of full scroll work.
*Material*MS 12 mm bar and plate
*Style*Grid with flower motif
*Suits*Bedroom balconies
**Fabricator’s tip** Weld the flower plates from behind so the front face stays clean, then sand before painting.

Balcony Safety Grill Design for Kids and Pets

For a house balcony safety grill design, keep gaps at 4 inches or less and avoid horizontal bars a child can climb.

Balcony safety grill design with close vertical bars in light blue — Bars at a 3 inch gap with no rails in the middle, so there is nothing to climb. Ideal for flats with toddlers on high floors.
*Material*MS 12 mm square bar
*Style*Close vertical bars
*Suits*Homes with toddlers
**Fabricator’s tip** Keep the bottom gap under 2 inches and grind every weld smooth so small fingers cannot get cut.

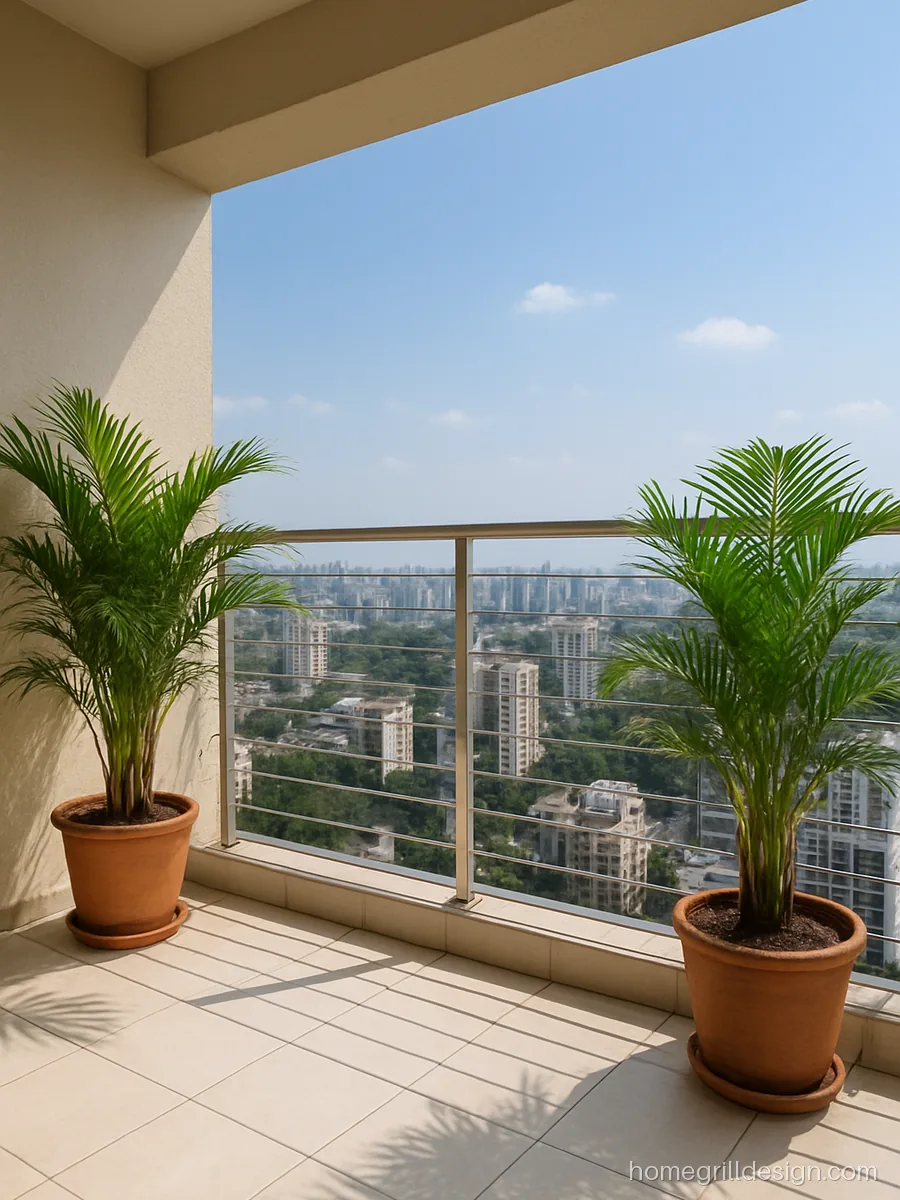

Invisible balcony safety grill with thin SS cables on a high rise flat — Thin stainless cables in a slim track keep the view almost clear. Good for high rise flats with a city or sea view.
*Material*SS 304 wire, 2 mm
*Style*Invisible cable grill
*Suits*High rise flats
**Fabricator’s tip** Get the cables tensioned by the installer and check the tension once a year, loose cables are not safe.

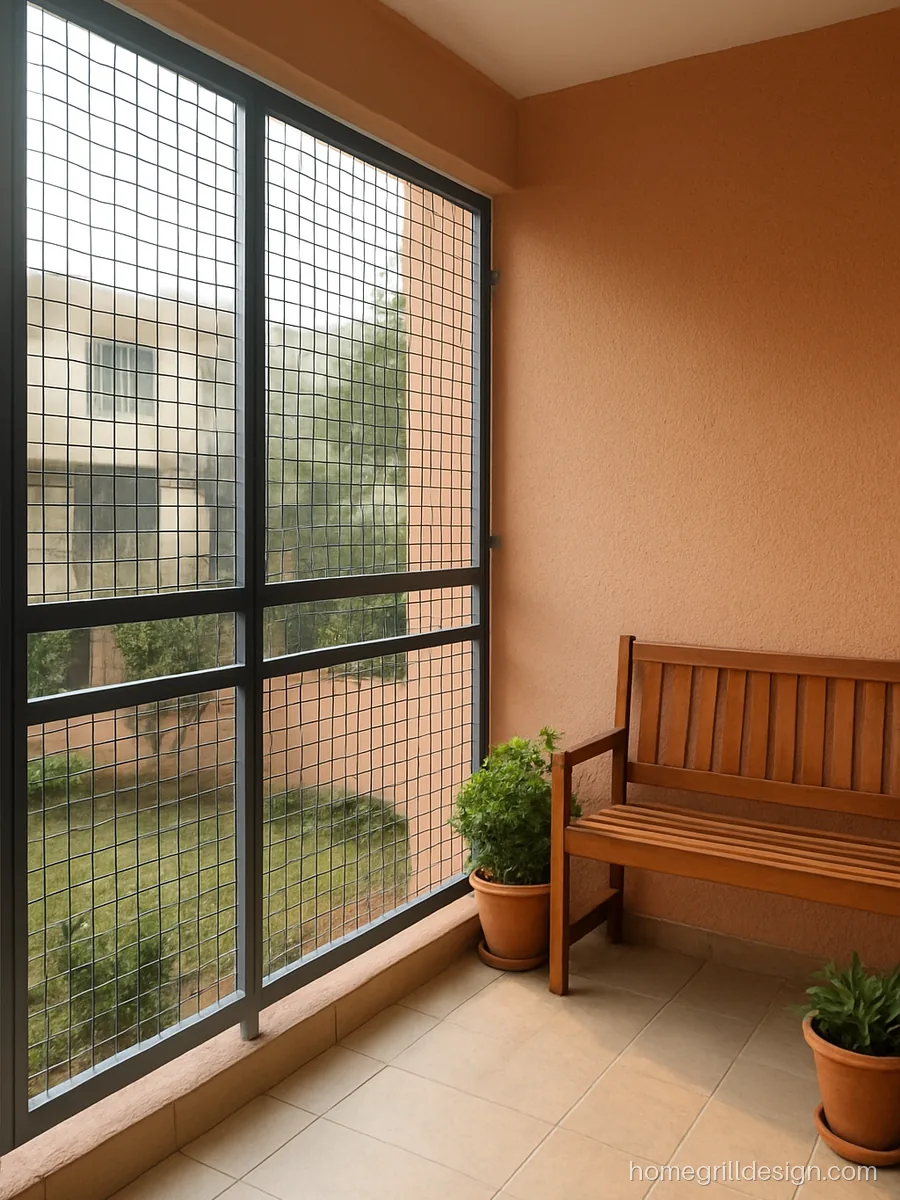

House balcony safety grill design with welded mesh panels in graphite — Welded mesh in a flat frame stops cats and small dogs from slipping out. Graphite paint keeps it low key on any wall colour.
*Material*GI mesh in MS frame
*Style*Welded mesh panels
*Suits*Homes with pets
**Fabricator’s tip** Use GI mesh so the wires do not rust, and paint the MS frame with zinc primer first.

Balcony Grill Design with Glass

Glass behind or inside the grill blocks dust, rain and noise. It turns an open balcony into an extra room.

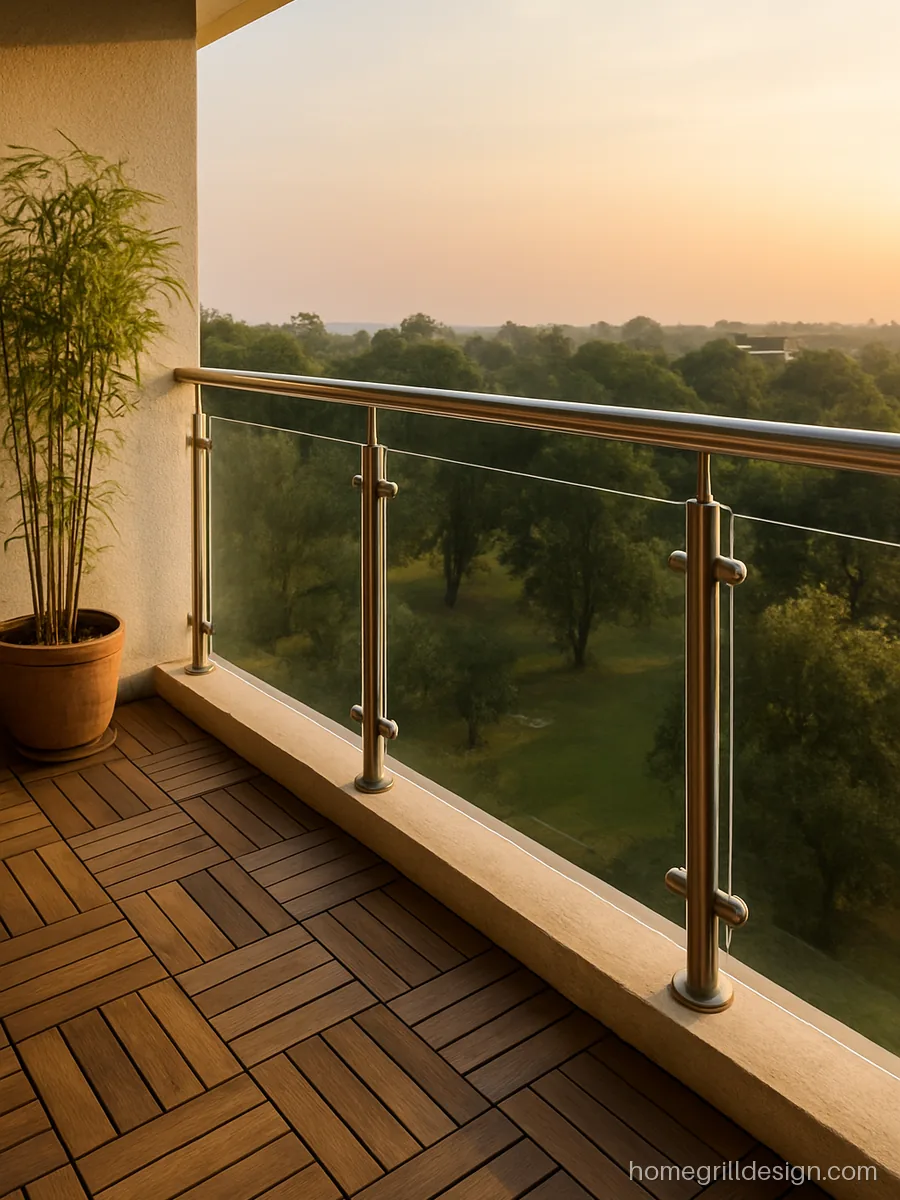

Glass grill for balcony with toughened glass between satin SS posts — Toughened glass panels fixed to SS posts with a top handrail. It keeps the view open and stops wind on high floors.
*Material*12 mm toughened glass
*Style*Glass with SS posts
*Suits*Sea or park view
**Fabricator’s tip** Ask for toughened glass with polished edges and rubber gaskets in the clamps, never bare metal on glass.

Closed balcony grill design with lower grill and upper fixed glass — Grill on the lower half and fixed glass above it with one openable panel. A practical mix for rooms facing heavy rain.
*Material*MS 16 mm square bar
*Style*Lower grill, upper glass
*Suits*Rain facing sides
**Fabricator’s tip** Run a sloped drip edge along the top of the frame to keep rainwater off the plaster underneath.

How to Choose a Balcony Grill

Floor level: ground and first floor need a strong full cover grill. Higher floors can use lighter steel or invisible cables.
Who lives there: with kids, keep gaps under 4 inches and skip climbable rails.
Location: near the sea, use SS 304 or well painted MS. Inland, MS or SS 202 is fine.
Exit: keep one openable section with a lock in every closed balcony.

To match the balcony grill with your windows, browse our window grill design gallery and the grill colour ideas.

Materials for Balcony Grills

Material	Typical size	Good for
MS square bar	12 to 16 mm	Full cover and box grills
MS flat strip	25 x 5 mm	Modern vertical designs
SS 304 pipe	1 to 1.5 inch	Coastal flats
Aluminium section	Standard profiles	Sliding glass frames

Cost goes up with the weight of steel, the SS grade, laser cut parts, powder coating and the number of joints. More detail is in our grill design guide.

Fabrication and Care

Holdfasts should go at least 4 inches into the wall, every 2 feet or so. Weld joints must be ground smooth. MS grills need red oxide or zinc primer and a repaint every 2 to 3 years, sooner near the coast. Clean dust from patterns with a soft brush before the monsoon.

Grill design questions

Which is the best balcony grill design for home use in a flat?

For most flats, a full cover grill with slim vertical bars and one openable section works best. It keeps kids safe, stops birds and still lets light in. Pick SS 304 near the sea and MS with good paint elsewhere.

Is a steel grill for balcony better than MS?

Stainless steel does not need paint and lasts longer near the sea. MS is stronger for the same size and easier to repair, but needs repainting every few years. Both work well if the fitting is done right.
